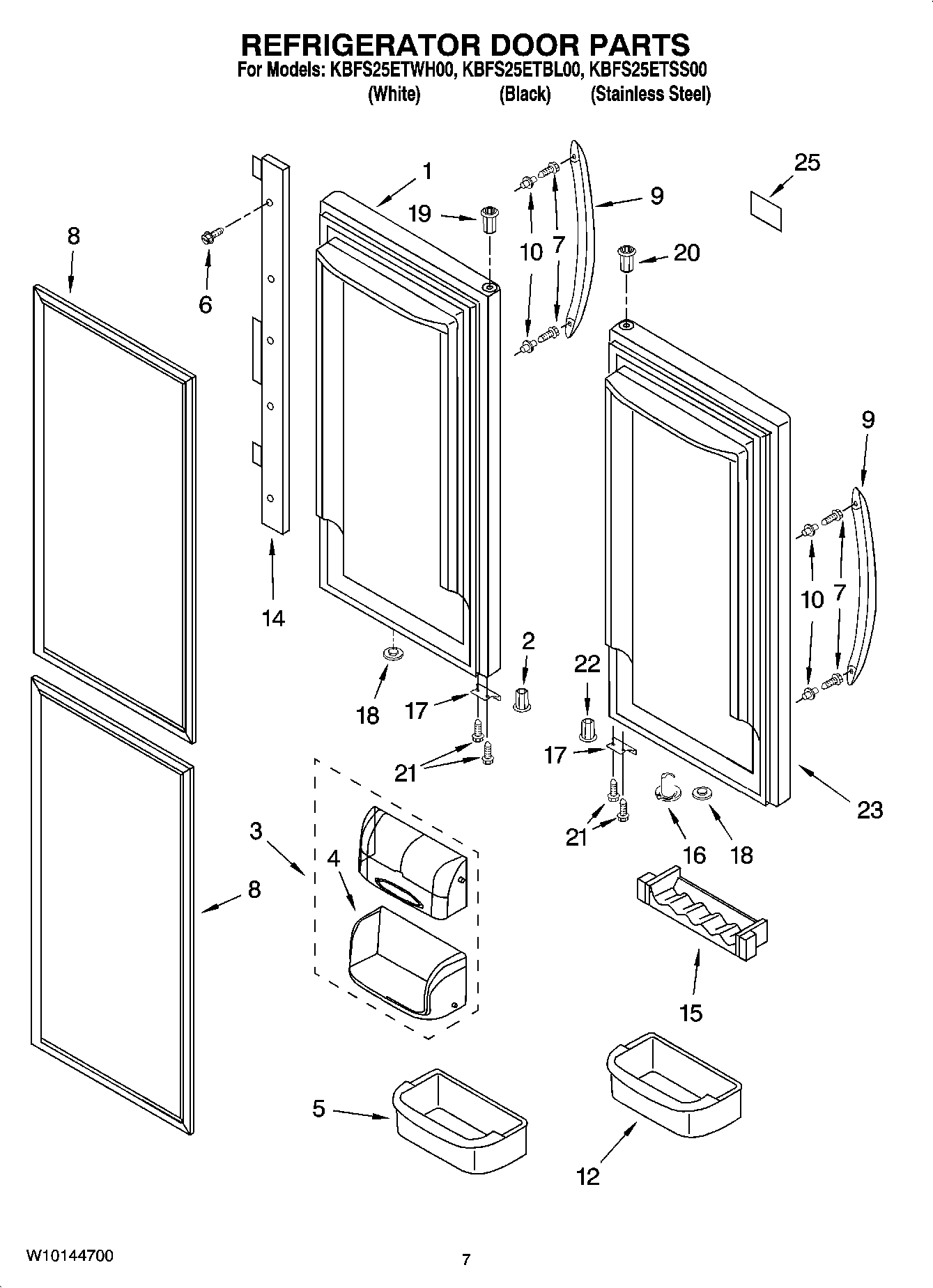

KBFS25ETWH00 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Door, Left (Stainless Steel)
1	Door, Left (White)
1	Door, Left (Black)
2	WP67002721 Whirlpool Refrigerator Door Bushing
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371195 Whirlpool Refrigerator Cantilever Bin
6	W11311945 Whirlpool Refrigerator Screw
7	WP3387230 Whirlpool Screw
8	W10830189 Whirlpool Refrigerator Door Gasket
8	GASKET-FIP
9	WP2319727B Whirlpool Refrigerator Handle
9	Handle, Door (Stainless Steel)
9	WP2319727W Whirlpool Refrigerator Handle
10	Stud, Handle
12	WPW10289498 Whirlpool Refrigerator Cantilever Bin
14	RAIL-MULLN WHITE
14	WP12722803B Whirlpool Door Guide
15	WP67005626 Whirlpool Refrigerator Can Caddy
16	WP67003639 Whirlpool Refrigerator Closer
16	WP67003638 Whirlpool Closing Cam
17	W11708403 Whirlpool Door Stop
17	12968202W Whirlpool Refrigerator Door Stop
18	67004838 Whirlpool Refrigerator Button Vent Plug
18	10712401 Whirlpool Refrigerator Vent Plug (White)
19	67002722 Whirlpool Refrigerator White Door Bushing
19	Bushing, Door (Upper Left) (Black)
20	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
20	67004978 Whirlpool Refrigerator Black Door Bushing
21	WP98165 Whirlpool Screw
22	WP67002731 Whirlpool Refrigerator Door Bushing
22	12028601W Whirlpool Refrigerator Hinge Bushing
23	Door, Right (White)
23	Door, Right (Black)
23	Door, Right (Stainless Steel)
25	WPW10243393 Whirlpool Dishwasher Nameplate
25	NAMEPLATE
25	WPW10243392 Whirlpool Dishwasher Nameplate
