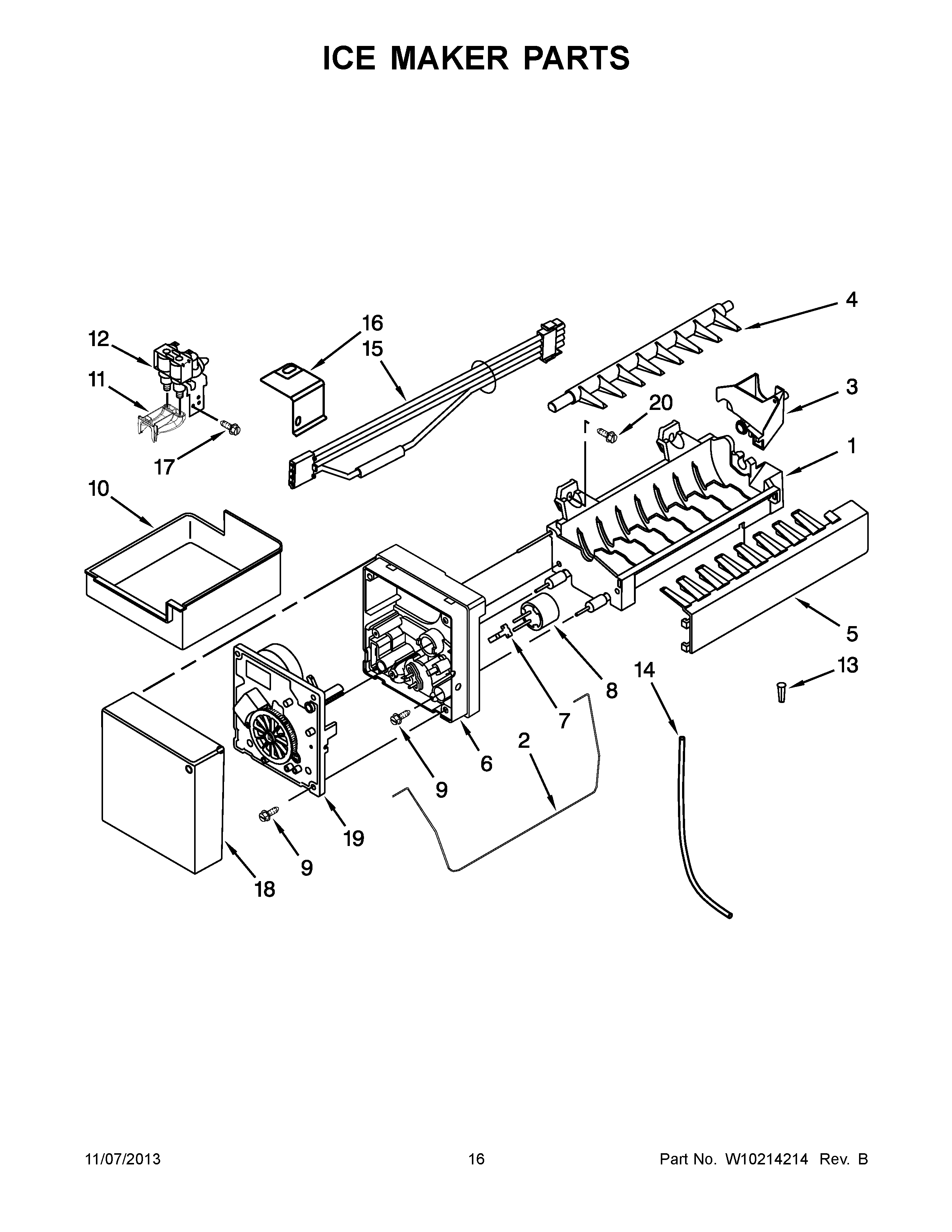

KBFS25EVBL0 09 – ICE MAKER PARTS

KBFS25EVBL0 09 – ICE MAKER PARTS

Written by

in

KBFS25EVBL0 09 – ICE MAKER PARTS

Products

PositionProduct
NIRetainer, Tube
NIScrew, Bracket
NI681390 Whirlpool Refrigerator Screw
NIW11033771 Whirlpool Refrigerator Coupling
NICABINET (NOT A SERVICEABLE PART)
2ARM-SHUT
3WP628356 Whirlpool Refrigerator Fill Cup
4WP627843 Whirlpool Refrigerator Ejector Arm
5WP2182124 Whirlpool Refrigerator Stripper Arm
6WP2195914 Whirlpool Refrigerator Ice Maker Housing
7WP2315522 Whirlpool Refrigerator Clip
9WP681249 Whirlpool Screw Assembly
10WP67001255 Whirlpool Ice Bucket
1112831101 Whirlpool Refrigerator Tube Clamp
12WP67006531 Whirlpool Water Inlet Valve
13WPA3223101 Whirlpool Refrigerator Insert PL
14WPB5705307 Whirlpool Refrigerator Tube
15WPD7813010 Whirlpool Refrigerator Wire Harness
16WP2256087 Whirlpool Refrigerator Bracket
18WPW10289690 Whirlpool Ice Maker Cover
20WP98165 Whirlpool Screw
100D7824706Q Whirlpool Refrigerator Ice Maker Assembly
