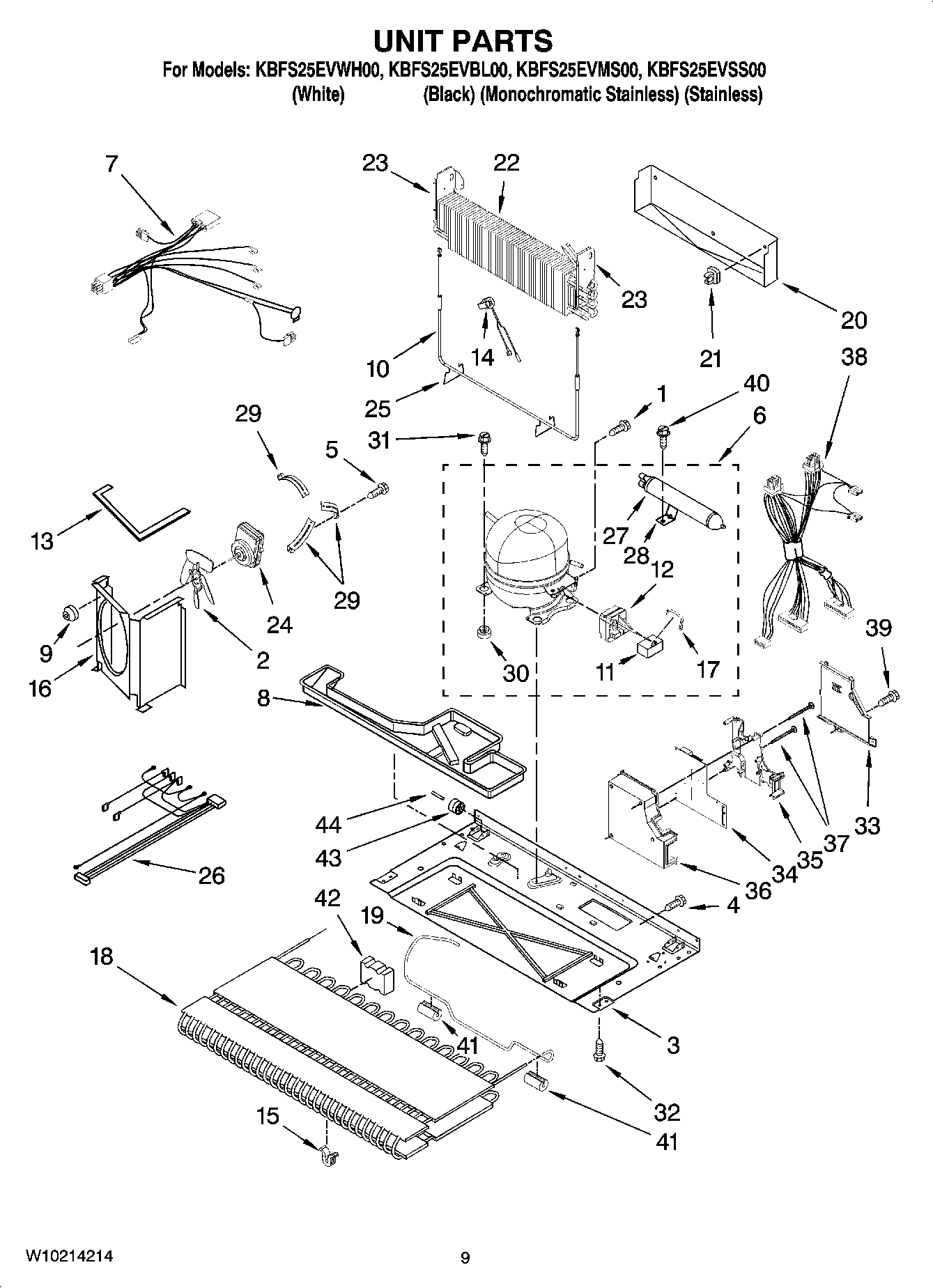

KBFS25EVBL00 05 – UNIT PARTS

Products

PositionProduct
978030 Whirlpool Refrigerator Valve
VALVE, ACCESS (5/8“)
876764 Whirlpool Refrigerator Primary Valve
978026 Whirlpool Refrigerator Primary Valve
REFRIGERANT CHARGE 5.0 Ozs. (R-134A)
978027 Whirlpool Refrigerator Primary Valve
Following Parts Not Illustrated and Optional Parts Not Included
WP978025 Whirlpool Refrigerator Valve
VALVE, ACCESS (1/2“)
112992301 Whirlpool Refrigerator Screw
2W10156818 Whirlpool Refrigerator Fan Blade
3Basepan
467006425 Whirlpool Refrigerator Screw
5WP67004954 Whirlpool Refrigerator Screw
6W10160407 Whirlpool Refrigerator Compressor
7Harness, Evap Heater
8WP12579803 Whirlpool Refrigerator Drain Pan
9WP67006132 Whirlpool Refrigerator Condenser
10WP67002493 Whirlpool Refrigerator Defrost Heater
11WPW10662129 Whirlpool Refrigerator Run Capacitor
12WPW10197428 Whirlpool Start Device
13WP854334 Whirlpool Air Conditioner Sealing Strip
14WPW10165425 Whirlpool Bimetal Defrost Thermostat
15WPW10137529 Whirlpool Refrigerator Grommet
16Shroud
17Clip, Retaining
18WPW10346415 Whirlpool Refrigerator Condenser
19WP12866903 Whirlpool Refrigerator Discharge Tube
20W11547653 Whirlpool Refrigerator Drip Tray
21CLIP, EVAP (2)
2212002041 Whirlpool Refrigerator Evaporator Replacement Kit
23Dam (Right Side)
23Dam (Left Side)
24Motor, Fan
25W11673433 Whirlpool Clip
26Harness, Unit Includes Cord
27WPW10143759 Whirlpool Dryer Filter
2810547003 Whirlpool Refrigerator Dryer Clip
29WP67004953 Whirlpool Refrigerator Bracket
30WPW10169124 Whirlpool Refrigerator Grommet
3112846902 Whirlpool Refrigerator Screw
32Screw (4)
3367005421 Whirlpool Hoist Cover
34Board, HV
35Spacer, HV
36Box, HV
37Screw (2)
38Harness, HV
39W10709801 Whirlpool Refrigerator Screw
40WP33001882 Whirlpool Screw
4167005680 Whirlpool Refrigerator Condenser Grommet
42Block, Condenser
43WP67005149 Whirlpool Roller
4467006434 Whirlpool Axle Pin
