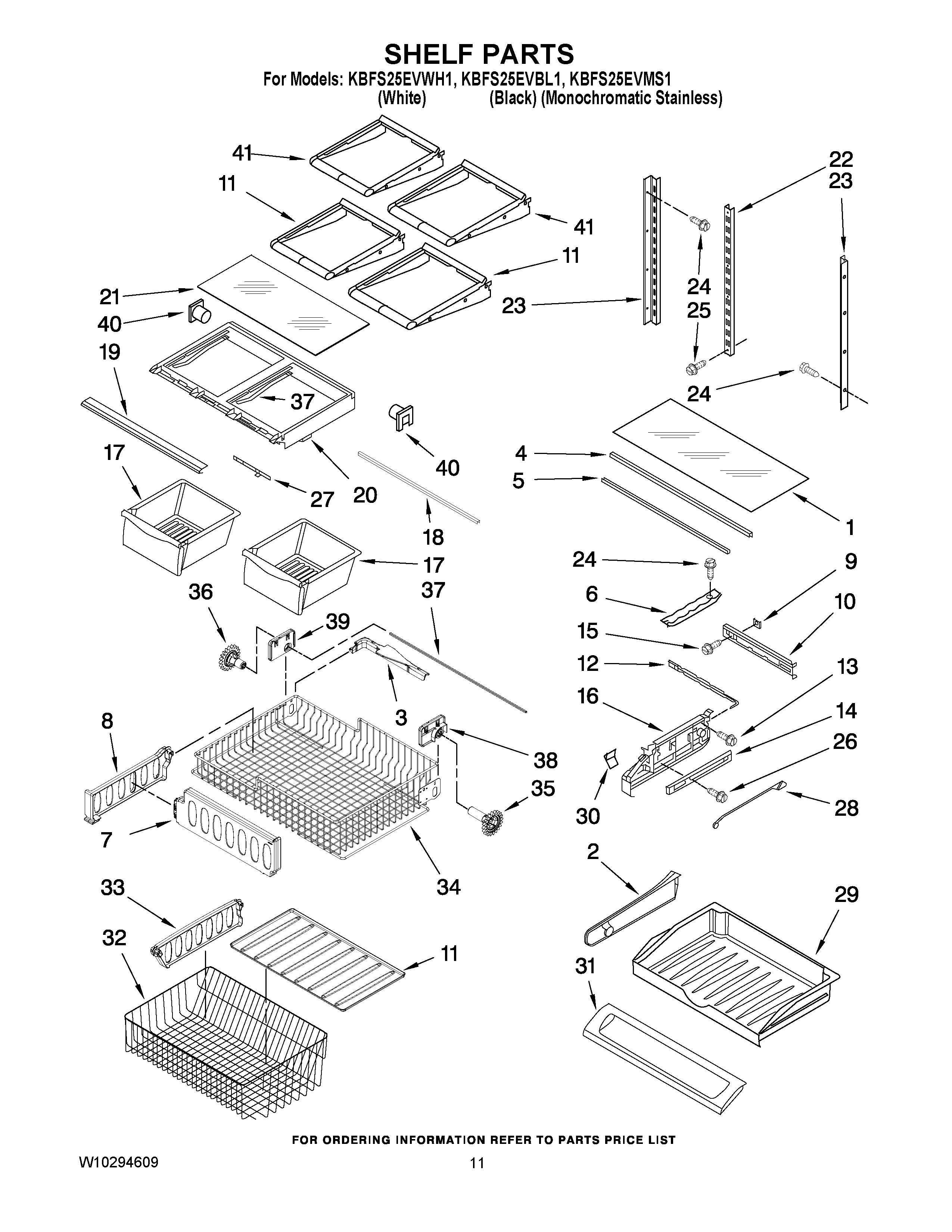

KBFS25EVBL1 06 – SHELF PARTS

KBFS25EVBL1 06 – SHELF PARTS

Written by

in

KBFS25EVBL1 06 – SHELF PARTS

Products

Position	Product
1	W11033333 Whirlpool Glass Shelf
2	WP67002759 Whirlpool Refrigerator Divider
3	W10149389 Whirlpool Refrigerator Handle
4	WP67006010 Whirlpool Refrigerator Shelf Trim
5	WP12227305WD Whirlpool Drawer Support
6	WP67001719 Whirlpool Refrigerator Track
7	W10171558 Whirlpool Refrigerator Divider
8	W10241046 Whirlpool Refrigerator Divider
9	67002329 Whirlpool Refrigerator Pantry Gasket
10	12656202 Whirlpool Refrigerator Housing
11	SHELF, GLIDE (2)
12	WP67003793 Whirlpool Refrigerator Temperature Slide
13	WP67006415 Whirlpool Refrigerator Screw
14	WPW10235370 Whirlpool Refrigerator Glide
16	W10874836 Whirlpool Endcap Assembly Left Hand and Right
17	WP67004515 Whirlpool Crisper Drawer
18	WP12642303WD Whirlpool Refrigerator Drawer Support
19	TRIM, CRISPER
20	WP67003854 Whirlpool Shelf Frame
21	WP67006704 Whirlpool Glass Crisper Cover
22	W10273463 Whirlpool Refrigerator Ladder
23	W10251971 Whirlpool Ladder Assembly
24	67006425 Whirlpool Refrigerator Screw
25	W10709795 Whirlpool Refrigerator Screw
26	WP98165 Whirlpool Screw
27	SLIDE
28	WP67003795 Whirlpool Refrigerator Temperature Control Bar
29	WP67003531 Whirlpool Drawer Assembly
30	W11498983 Whirlpool Refrigerator Knob
31	WP67005930 Whirlpool Refrigerator Pantry Drawer Front Lid
32	Basket, Freezer (Lower)
33	W10847995 Whirlpool Divider Assembly
34	WPW10348246 Whirlpool Refrigerator Freezer Basket
35	WPW10474715 Whirlpool Refrigerator Gear
36	WPW10474716 Whirlpool Refrigerator Gear
37	W11173556 Whirlpool Refrigerator Shaft
38	W10348260 Whirlpool Refrigerator Bracket
39	W10348259 Whirlpool Refrigerator Bracket Assembly
40	WP13062602 Whirlpool Refrigerator Support
41	W10205737 Whirlpool Refrigerator Glass Shelf
