KBFS25EVMS00 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

KBFS25EVMS00 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KBFS25EVMS00 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI78394A9
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
WPL 876029
W11033771 Whirlpool Refrigerator Coupling
WPL ARI78391A7
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
681390 Whirlpool Refrigerator Screw
Ice Container Assembly
Screw, Bracket
Retainer, Tube
WPL ARI78388A4
WPL ARI78389A4
WPL ARI78390A4
WPL ARI78392A3
WPL ARI78393A4
TAPE, VINYL (3/4 X 108“)
Torx Key
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
511873 Whirlpool Refrigerator Paint
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
876370 Whirlpool Refrigerator Insulation
833938 Whirlpool Refrigerator Terminal

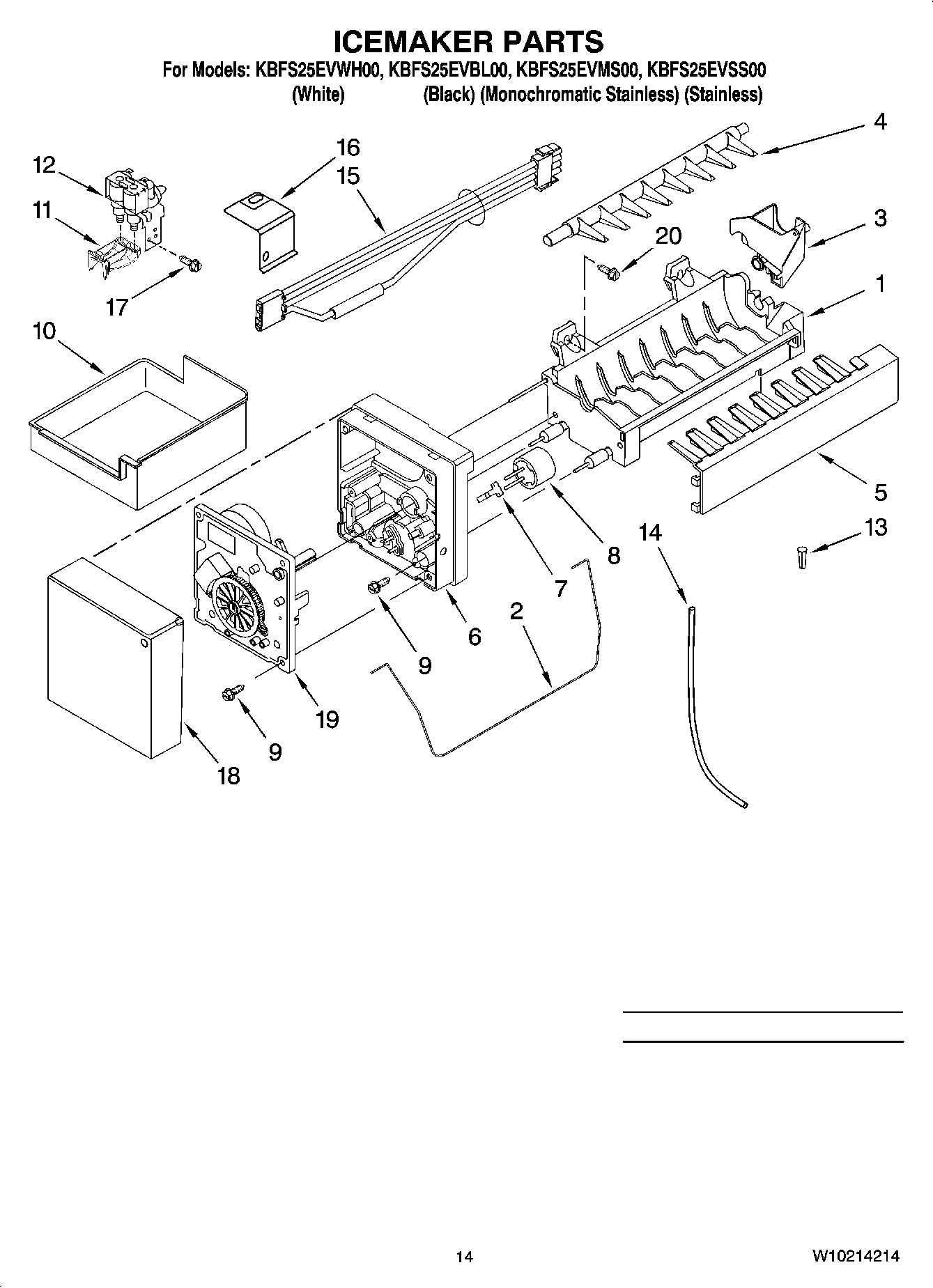

1Mold & Heater Assembly (Not Available — Order 8170937)
2ARM-SHUT
3WP628356 Whirlpool Refrigerator Fill Cup
4WP627843 Whirlpool Refrigerator Ejector Arm
5WP2182124 Whirlpool Refrigerator Stripper Arm
6WP2195914 Whirlpool Refrigerator Ice Maker Housing
7WP2315522 Whirlpool Refrigerator Clip
8Thermostat (Not Available Order D7824706Q)
9WP681249 Whirlpool Screw Assembly
10WP67001255 Whirlpool Ice Bucket
1112831101 Whirlpool Refrigerator Tube Clamp
12WP67006531 Whirlpool Water Inlet Valve
13WPA3223101 Whirlpool Refrigerator Insert PL
14WPB5705307 Whirlpool Refrigerator Tube
15WPD7813010 Whirlpool Refrigerator Wire Harness
16WP2256087 Whirlpool Refrigerator Bracket
18WPW10289690 Whirlpool Ice Maker Cover
19Module Assembly (Not Available Order D7824706Q)
20WP98165 Whirlpool Screw
100D7824706Q Whirlpool Refrigerator Ice Maker Assembly
