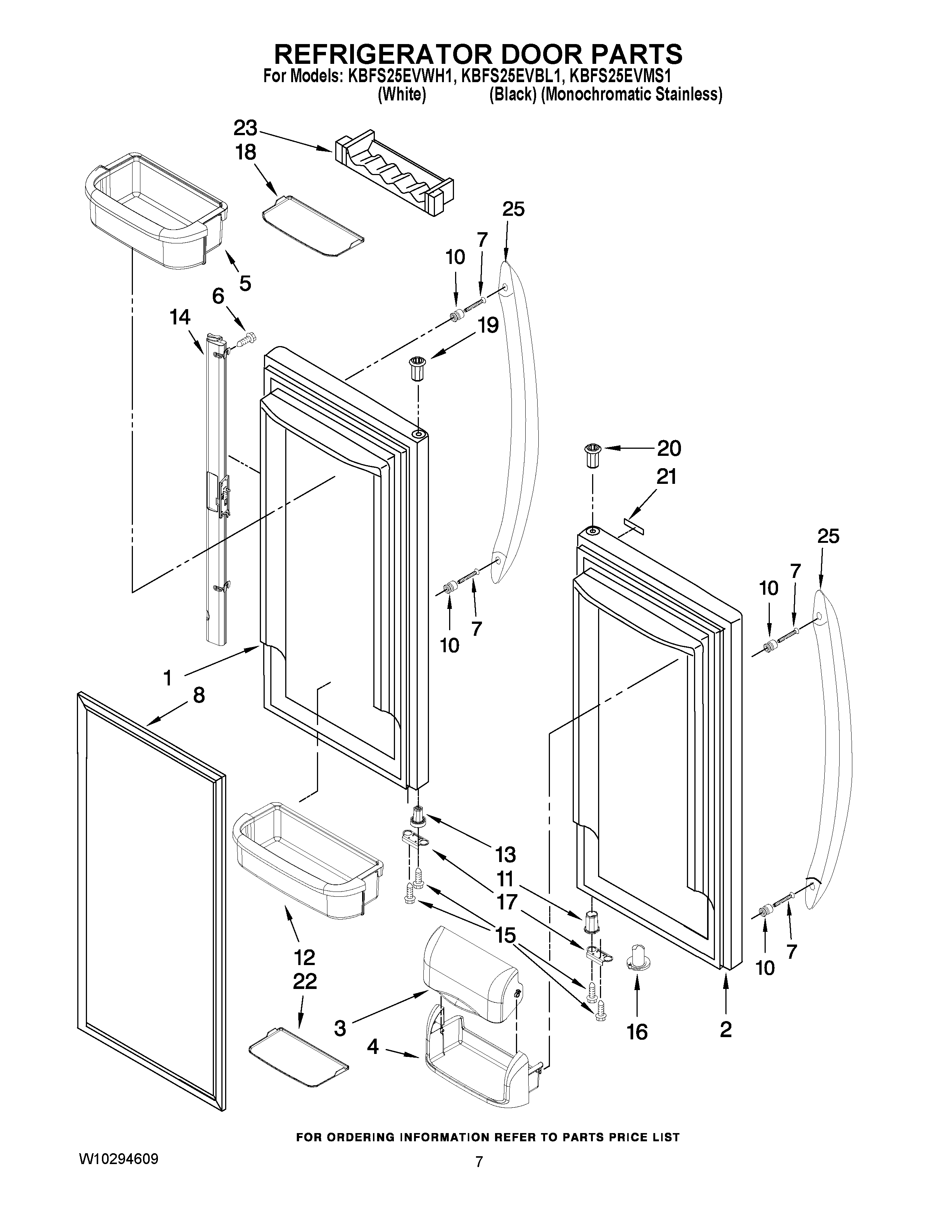

KBFS25EVMS1 04 – REFRIGERATOR DOOR PARTS

KBFS25EVMS1 04 – REFRIGERATOR DOOR PARTS

Written by

in

KBFS25EVMS1 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Door, Refrigerator (Black)
1	Door, Left (Mono Stainless)
1	Door, Refrigerator (White)
2	Door, Right (Mono Stainless)
2	WPL 13024047WQ
2	WPL 13024047BQ
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	BUCKET, MEDIUM
6	W11311945 Whirlpool Refrigerator Screw
7	WP3387230 Whirlpool Screw
8	GASKET-FIP
8	GASKET-FIP
8	W10830189 Whirlpool Refrigerator Door Gasket
10	MOUNT, HANDLE
11	WP67002731 Whirlpool Refrigerator Door Bushing
11	12028601W Whirlpool Refrigerator Hinge Bushing
11	W10853652 Whirlpool Refrigerator Hinge Bushing
12	WPW10289498 Whirlpool Refrigerator Cantilever Bin
13	BUSHING, DOOR (BOTTOM LEFT)
13	WP67002721 Whirlpool Refrigerator Door Bushing
13	67002722 Whirlpool Refrigerator White Door Bushing
14	WP12722803AP Whirlpool Refrigerator Mullion Rail
14	WP12722803B Whirlpool Door Guide
14	RAIL-MULLN WHITE
15	WP98165 Whirlpool Screw
16	WP67003639 Whirlpool Refrigerator Closer
16	WP12028505AP Whirlpool Closing Cam
16	WP67003638 Whirlpool Closing Cam
17	W11401472 Whirlpool Refrigerator Door Stop
17	W11708403 Whirlpool Door Stop
17	12968202W Whirlpool Refrigerator Door Stop
18	WPW10450021 Whirlpool Refrigerator Mat
19	Bushing, Door (Upper Left) (Black)
19	Bushing, Door (Upper Left) (White)
19	BUSHING, DOOR UPPER LEFT (APOLLO GREY)
20	67004978 Whirlpool Refrigerator Black Door Bushing
20	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
20	10961006AP Whirlpool Refrigerator Hinge Bushing
21	WPW10243392 Whirlpool Dishwasher Nameplate
21	NAMEPLATE
21	WPW10243393 Whirlpool Dishwasher Nameplate
22	W11402028 Whirlpool Refrigerator Mat
23	WP67005626 Whirlpool Refrigerator Can Caddy
25	Handle, Door (Black)
25	WPW10314515 Whirlpool Refrigerator Handle
25	WPW10314517K Whirlpool Refrigerator Handle
