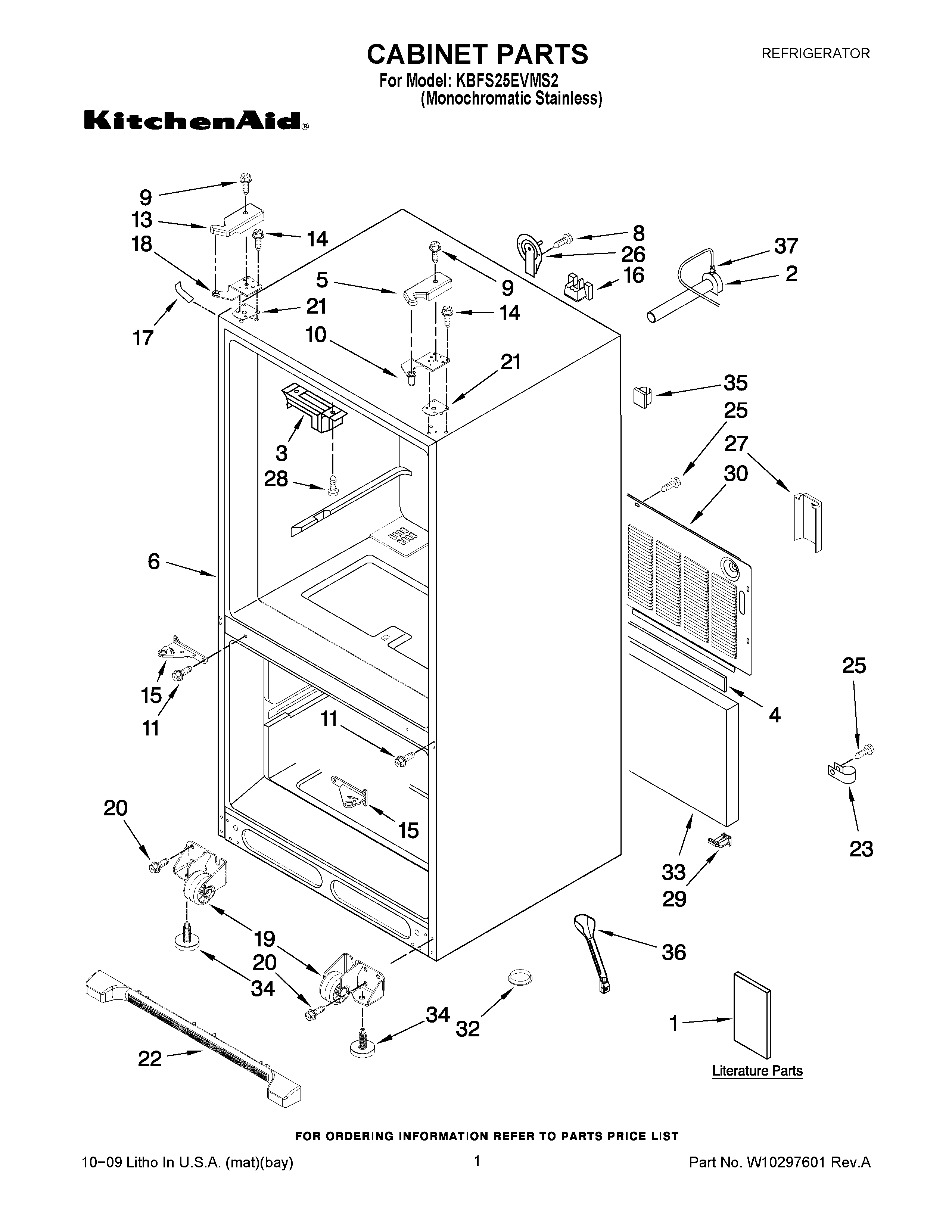

KBFS25EVMS2 01 – CABINET PARTS

KBFS25EVMS2 01 – CABINET PARTS

Written by

in

KBFS25EVMS2 01 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1Tag, Energy
1Owners Manual
2W11176463 Whirlpool Refrigerator Water Tube
3WP67003405 Whirlpool Pivot Block
4Gasket
5COVER, RIGHT HINGE
6CABINET (NOT A SERVICEABLE PART)
8WP98165 Whirlpool Screw
9WP8281196 Whirlpool Screw
10WP12566606ED Whirlpool Refrigerator Door Hinge
11WP67006380 Whirlpool Screw
13W10217487 Whirlpool Refrigerator Cover
14WP489349 Whirlpool Refrigerator Screw
1512655102AP Whirlpool Refrigerator Door Hinge
16WP12777701 Whirlpool Refrigerator Filler Block
17WP12587703AP Whirlpool Refrigerator Filler
18WP12566607ED Whirlpool Refrigerator Door Hinge
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
19WPW10515762 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21Shim, Hinge
22WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23W10833902 Whirlpool Refrigerator Clamp
2567006425 Whirlpool Refrigerator Screw
2612726003 Whirlpool Refrigerator Water Cover
27W10208593 Whirlpool Refrigerator Valve Cover
28WP7101P126-60 Whirlpool Screw
2912831101 Whirlpool Refrigerator Tube Clamp
30WPW10211855 Whirlpool Refrigerator Back Cover
32A3076901 Whirlpool Refrigerator Plug
33INSULATION, SOUND
34W11177593 Whirlpool Leveling Feet
35WPM0104106 Whirlpool Refrigerator Clip
36W10619951 Whirlpool Drain Tube with Grommet
37WPM0114003 Whirlpool Microwave Speed Clip Clamp
