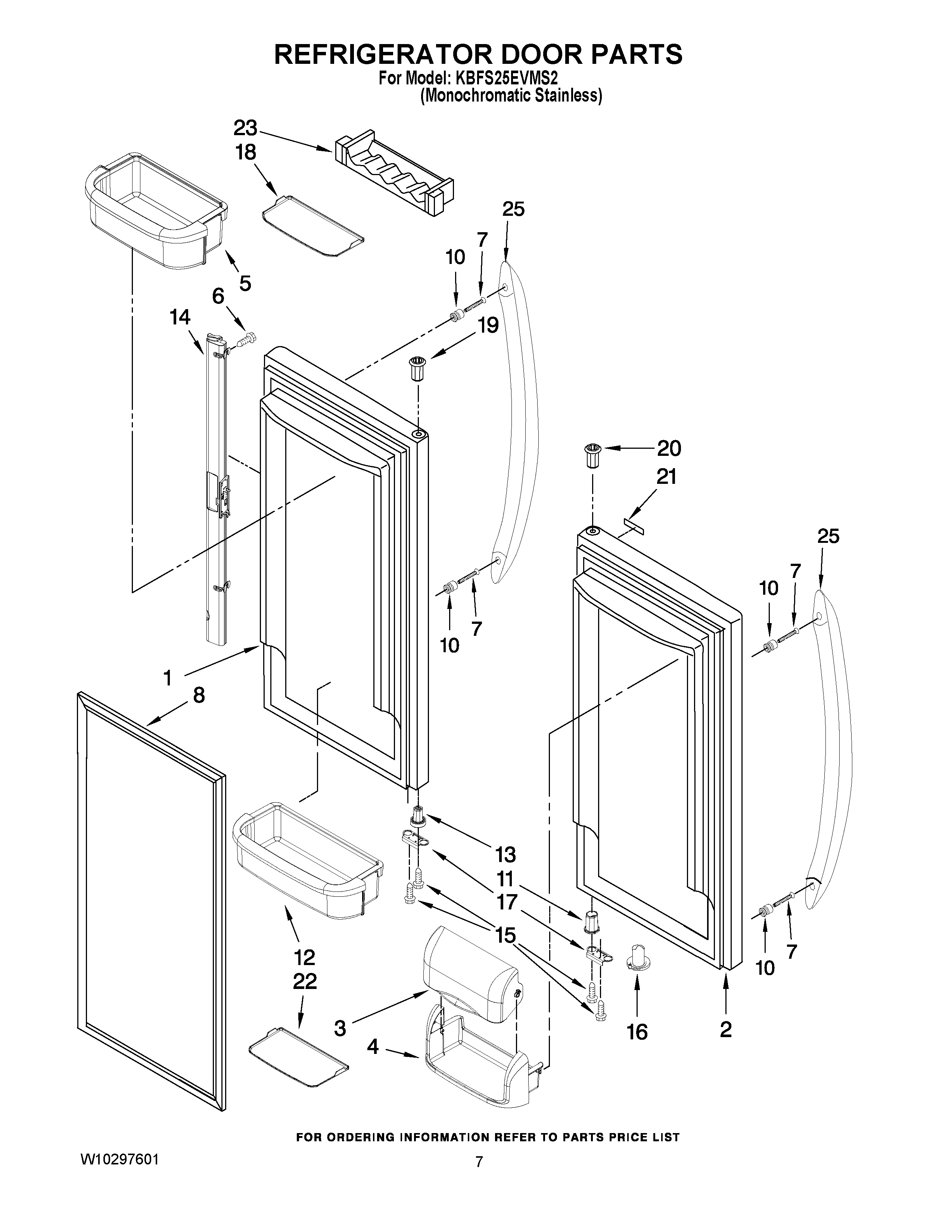

KBFS25EVMS2 04 – REFRIGERATOR DOOR PARTS

KBFS25EVMS2 04 – REFRIGERATOR DOOR PARTS

Written by

in

KBFS25EVMS2 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (LEFT) (STAINLESS)
2DOOR, RIGHT (STAINLESS)
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371195 Whirlpool Refrigerator Cantilever Bin
6W11311945 Whirlpool Refrigerator Screw
7WP3387230 Whirlpool Screw
8GASKET-FIP
10MOUNT, HANDLE
11W10853652 Whirlpool Refrigerator Hinge Bushing
12WPW10289498 Whirlpool Refrigerator Cantilever Bin
13BUSHING, DOOR (BOTTOM LEFT)
14WP12722803AP Whirlpool Refrigerator Mullion Rail
15WP98165 Whirlpool Screw
16WP12028505AP Whirlpool Closing Cam
17W11401472 Whirlpool Refrigerator Door Stop
18WPW10450021 Whirlpool Refrigerator Mat
19BUSHING, DOOR UPPER LEFT (APOLLO GREY)
2010961006AP Whirlpool Refrigerator Hinge Bushing
21NAMEPLATE
22W11402028 Whirlpool Refrigerator Mat
23WP67005626 Whirlpool Refrigerator Can Caddy
25WPW10314517K Whirlpool Refrigerator Handle
