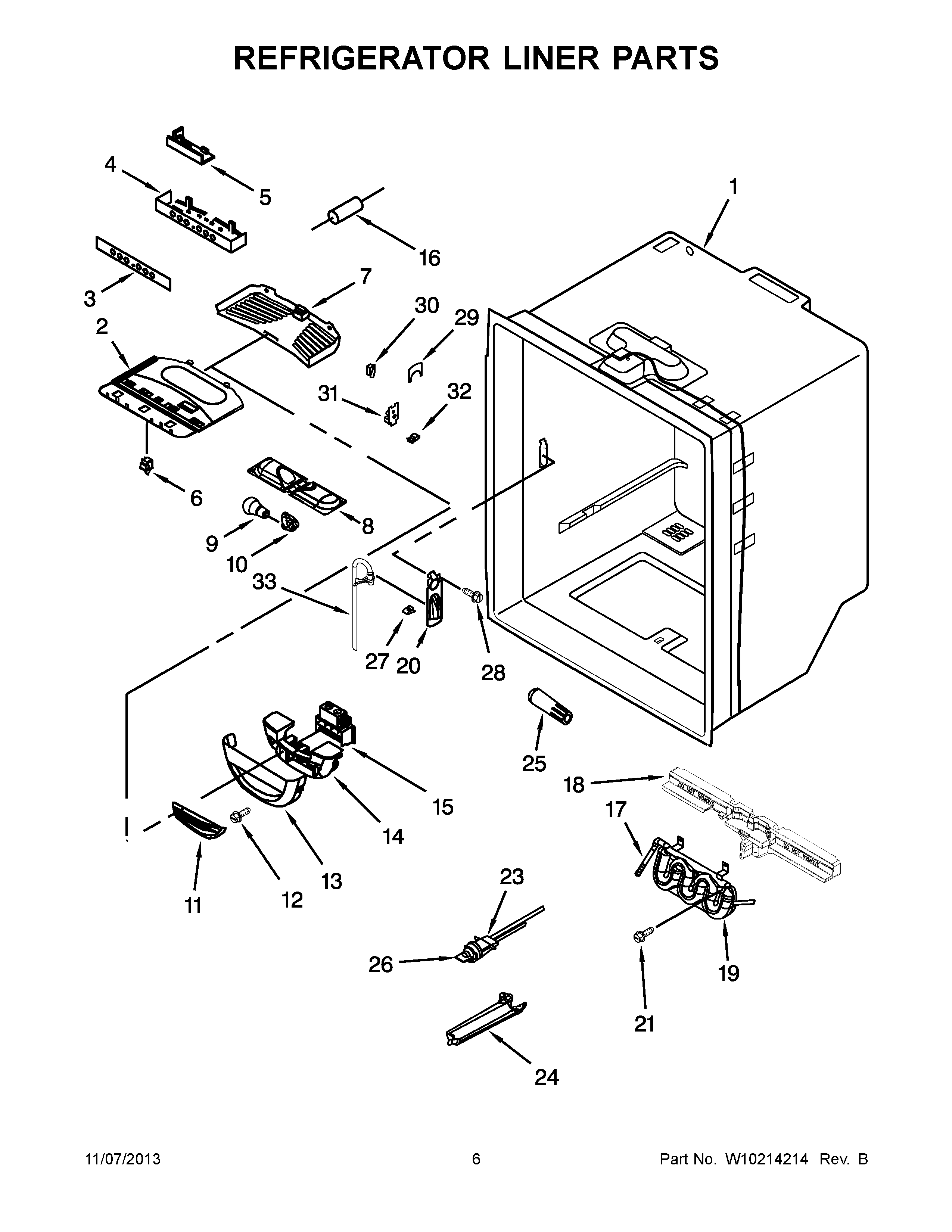

KBFS25EVSS0 04 – REFRIGERATOR LINER PARTS

KBFS25EVSS0 04 – REFRIGERATOR LINER PARTS

Written by

in

KBFS25EVSS0 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NI67005417 Whirlpool Refrigerator Harness F
2Module, Light
3Overlay
4W11416469 Whirlpool Refrigerator Housing
5WPW10207861-includeCORE Whirlpool WPW10207861 Refrigerator Electronic Control Board + Core
6W11384469 Whirlpool Door Switch
7W11284721 Whirlpool Refrigerator Cover
812806601 Whirlpool Refrigerator Light Housing
9W11679940 Whirlpool Refrigerator Light Bulb Assembly
10W11447232 Whirlpool Refrigerator Socket
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
15WPW10196393 Whirlpool Control Damper
1612002355 Whirlpool Refrigerator Thermistor Kit
17WP2300868 Whirlpool Refrigerator Fitting
18W11714300 Whirlpool Insulation
19W11361728 Whirlpool Reservoir Assembly
20Facade, Disp.
21WP98165 Whirlpool Screw
23WP67006524 Whirlpool Refrigerator Housing
24WP12568001 Whirlpool Filter Cover
25everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
26Plug, Bypass
27W10819546 Whirlpool Refrigerator Clip
28WP67006415 Whirlpool Refrigerator Screw
29W11519867 Whirlpool Refrigerator Cover
30WP12575501 Whirlpool Refrigerator Micro Switch
3112707303SP Whirlpool Refrigerator Plate
3267002816 Whirlpool Refrigerator Waterline Clip
33W11677725 Whirlpool Refrigerator Guide
