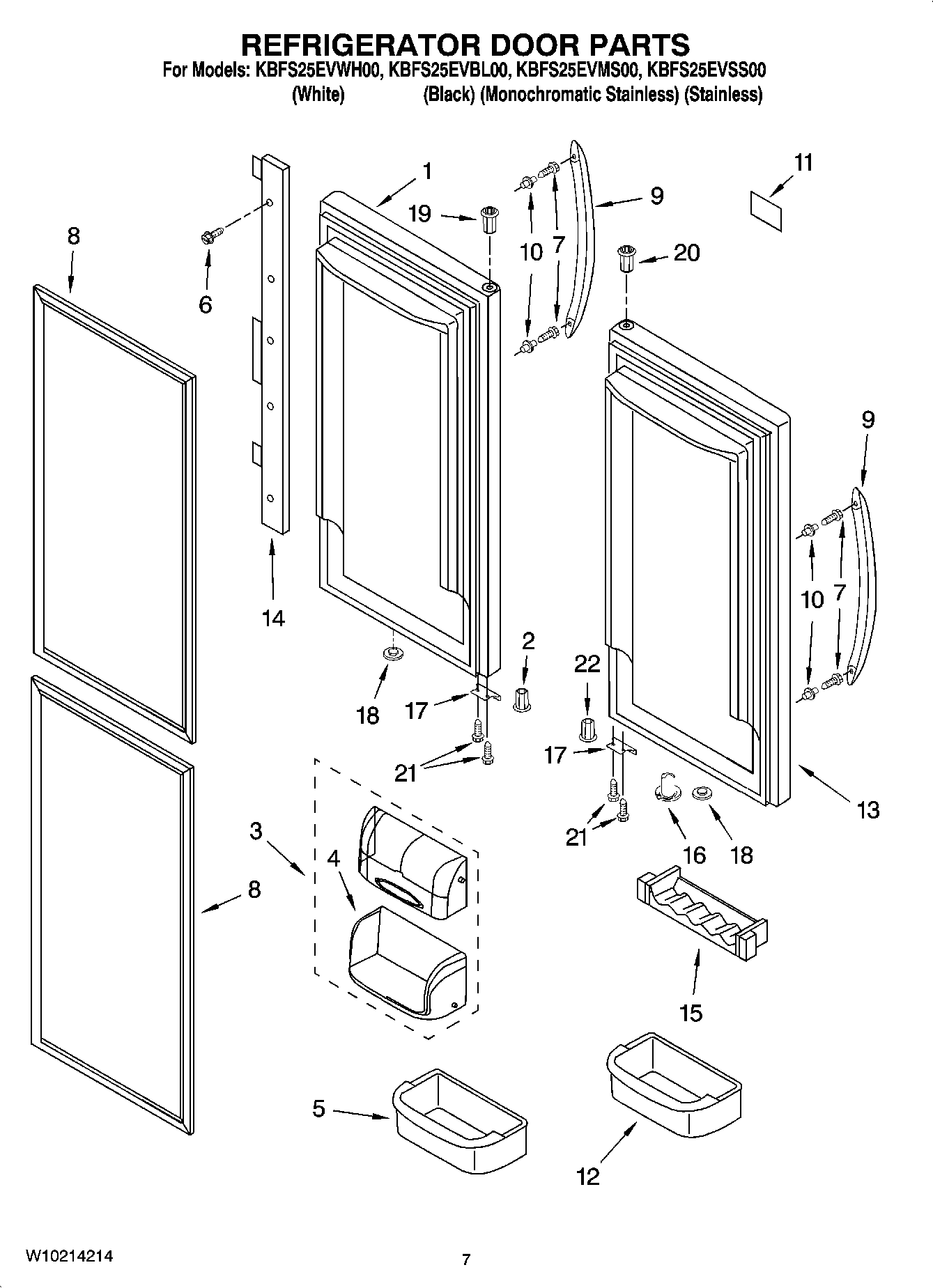

KBFS25EVSS00 04 – REFRIGERATOR DOOR PARTS

KBFS25EVSS00 04 – REFRIGERATOR DOOR PARTS

Written by

in

KBFS25EVSS00 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Door, Left (Stainless Steel)
1Door, Left (Mono Stainless)
1Door, Refrigerator (Black)
1Door, Refrigerator (White)
2WP67002721 Whirlpool Refrigerator Door Bushing
267002722 Whirlpool Refrigerator White Door Bushing
3WP12744905 Whirlpool Refrigerator Compressor Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371195 Whirlpool Refrigerator Cantilever Bin
6W11311945 Whirlpool Refrigerator Screw
767006901 Whirlpool Refrigerator Screw
8GASKET-FIP
8W10830189 Whirlpool Refrigerator Door Gasket
8GASKET-FIP
9WPW10314517K Whirlpool Refrigerator Handle
9WPW10314515 Whirlpool Refrigerator Handle
9Handle, Door (Black)
10WP67006113 Whirlpool Stud Bolt
11WPW10243393 Whirlpool Dishwasher Nameplate
11WPW10243392 Whirlpool Dishwasher Nameplate
11NAMEPLATE
12WPW10289498 Whirlpool Refrigerator Cantilever Bin
13WPL 13024047WQ
13Door, Right (Stainless)
13WPL 13024047BQ
13Door, Right (Mono Stainless)
14RAIL-MULLN WHITE
14WP12722803B Whirlpool Door Guide
14WP12722803AP Whirlpool Refrigerator Mullion Rail
15WP67005626 Whirlpool Refrigerator Can Caddy
16WP12028505AP Whirlpool Closing Cam
16WP67003639 Whirlpool Refrigerator Closer
16WP67003638 Whirlpool Closing Cam
17W11708403 Whirlpool Door Stop
1712968202W Whirlpool Refrigerator Door Stop
17W11401472 Whirlpool Refrigerator Door Stop
1810712401 Whirlpool Refrigerator Vent Plug (White)
1867004838 Whirlpool Refrigerator Button Vent Plug
19Bushing, Door (Upper Left) (Black)
19Bushing, Door (Upper Left) (White)
19BUSHING, DOOR UPPER LEFT (APOLLO GREY)
2067004978 Whirlpool Refrigerator Black Door Bushing
2010961006AP Whirlpool Refrigerator Hinge Bushing
20WP67004977 Whirlpool Refrigerator Door Hinge Bushing
21WP98165 Whirlpool Screw
2212028601W Whirlpool Refrigerator Hinge Bushing
22WP67002731 Whirlpool Refrigerator Door Bushing
22W10853652 Whirlpool Refrigerator Hinge Bushing
