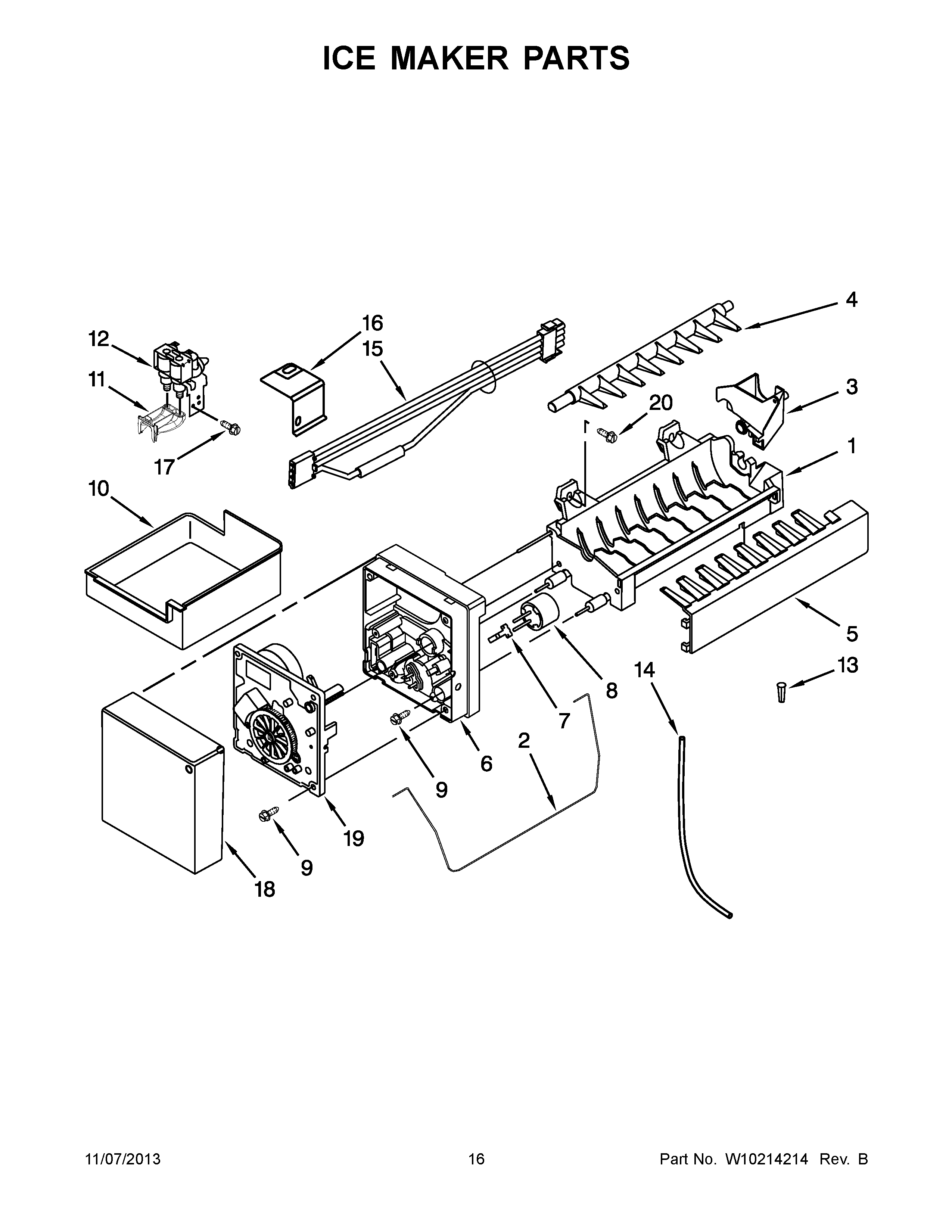

KBFS25EVWH0 09 – ICE MAKER PARTS

Products

Position	Product
NI	Retainer, Tube
NI	Screw, Bracket
NI	681390 Whirlpool Refrigerator Screw
NI	W11033771 Whirlpool Refrigerator Coupling
NI	CABINET (NOT A SERVICEABLE PART)
2	ARM-SHUT
3	WP628356 Whirlpool Refrigerator Fill Cup
4	WP627843 Whirlpool Refrigerator Ejector Arm
5	WP2182124 Whirlpool Refrigerator Stripper Arm
6	WP2195914 Whirlpool Refrigerator Ice Maker Housing
7	WP2315522 Whirlpool Refrigerator Clip
9	WP681249 Whirlpool Screw Assembly
10	WP67001255 Whirlpool Ice Bucket
11	12831101 Whirlpool Refrigerator Tube Clamp
12	WP67006531 Whirlpool Water Inlet Valve
13	WPA3223101 Whirlpool Refrigerator Insert PL
14	WPB5705307 Whirlpool Refrigerator Tube
15	WPD7813010 Whirlpool Refrigerator Wire Harness
16	WP2256087 Whirlpool Refrigerator Bracket
18	WPW10289690 Whirlpool Ice Maker Cover
20	WP98165 Whirlpool Screw
100	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
