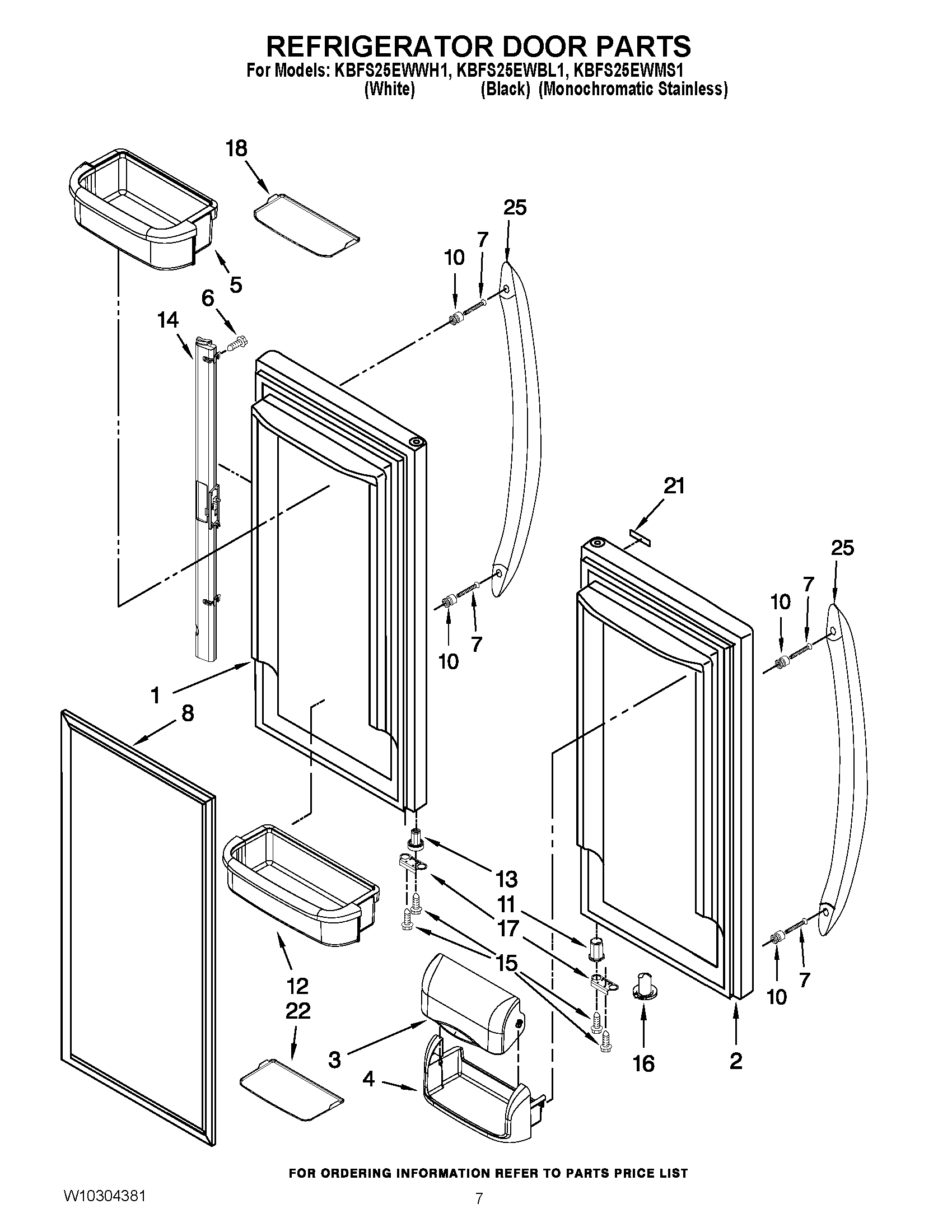

KBFS25EWBL1 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Door, Left (White)
1	DOOR, LEFT (STAINLESS)
1	DOOR, LEFT (BLACK)
2	DOOR, RIGHT (STAINLESS)
2	Door, Right (White)
2	DOOR, RIGHT (BLACK)
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371193 Whirlpool Refrigerator Door Bin
6	W11311945 Whirlpool Refrigerator Screw
7	WP3387230 Whirlpool Screw
8	GASKET-FIP
8	W10830189 Whirlpool Refrigerator Door Gasket
8	GASKET-FIP
10	MOUNT, HANDLE
11	12028601W Whirlpool Refrigerator Hinge Bushing
11	W10853652 Whirlpool Refrigerator Hinge Bushing
11	WP67002731 Whirlpool Refrigerator Door Bushing
12	WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
13	BUSHING, DOOR (BOTTOM LEFT)
13	67002722 Whirlpool Refrigerator White Door Bushing
13	WP67002721 Whirlpool Refrigerator Door Bushing
14	WP12722803B Whirlpool Door Guide
14	WP12722803AP Whirlpool Refrigerator Mullion Rail
14	RAIL-MULLN WHITE
15	WP98165 Whirlpool Screw
16	WP67003639 Whirlpool Refrigerator Closer
16	WP12028505AP Whirlpool Closing Cam
16	WP67003638 Whirlpool Closing Cam
17	W11708403 Whirlpool Door Stop
17	W11703060 Whirlpool Door Stop
17	12968202W Whirlpool Refrigerator Door Stop
18	WPW10450021 Whirlpool Refrigerator Mat
21	WPW10243393 Whirlpool Dishwasher Nameplate
21	WPW10243392 Whirlpool Dishwasher Nameplate
21	NAMEPLATE
22	W11402028 Whirlpool Refrigerator Mat
25	Handle, Door (Black)
25	WPW10314517K Whirlpool Refrigerator Handle
25	WPW10314515 Whirlpool Refrigerator Handle
