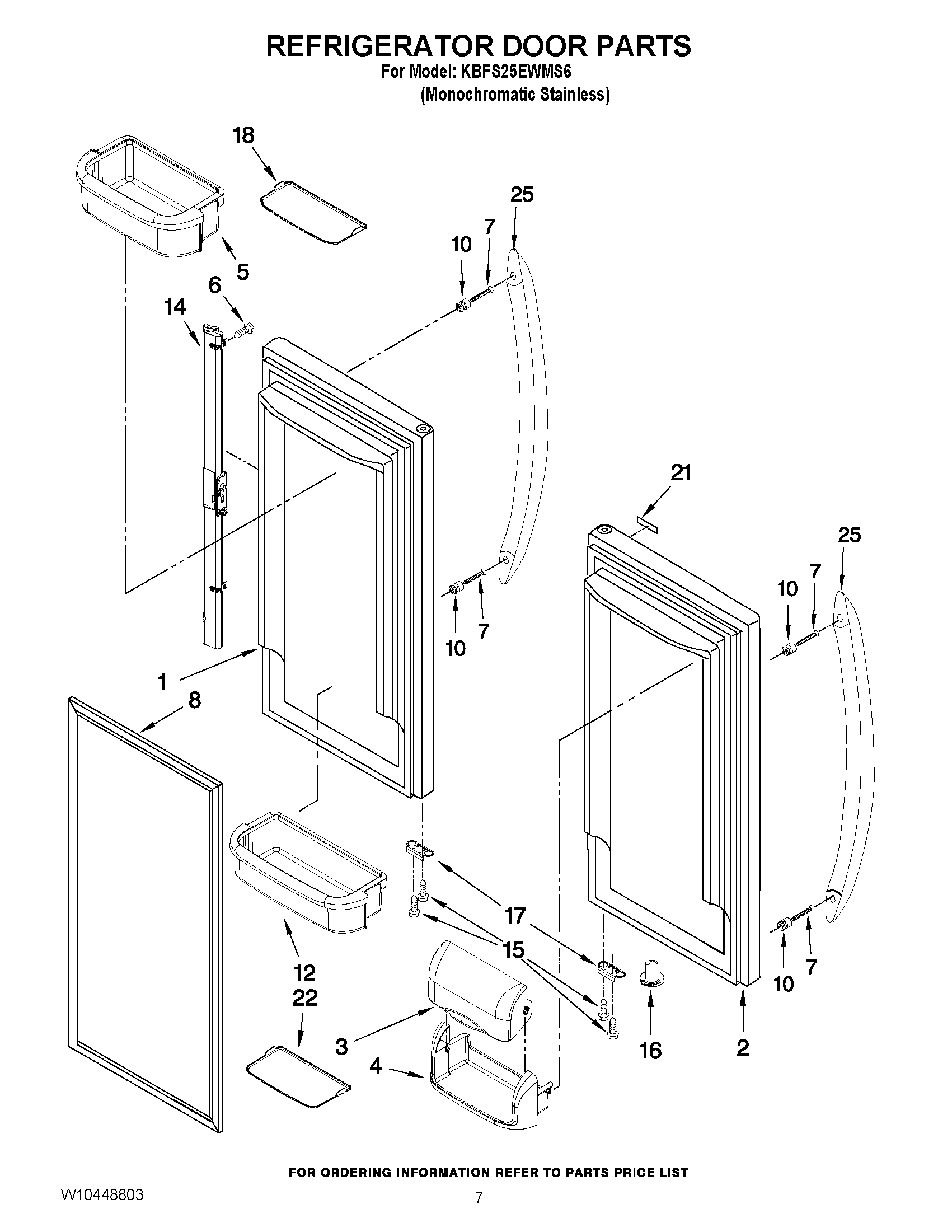

KBFS25EWMS6 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, LEFT (STAINLESS)
2	DOOR, RIGHT (STAINLESS)
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371193 Whirlpool Refrigerator Door Bin
6	W11311945 Whirlpool Refrigerator Screw
7	SCREW
8	GASKET-FIP
10	WP67006113 Whirlpool Stud Bolt
12	BIN, SHELF (GALLON)
14	WP12722803AP Whirlpool Refrigerator Mullion Rail
15	WP98165 Whirlpool Screw
16	WP12028505AP Whirlpool Closing Cam
17	W11703060 Whirlpool Door Stop
18	WPW10450021 Whirlpool Refrigerator Mat
21	WPW10243391 Whirlpool Refrigerator Nameplate
22	W11402028 Whirlpool Refrigerator Mat
25	WPW10314517K Whirlpool Refrigerator Handle
