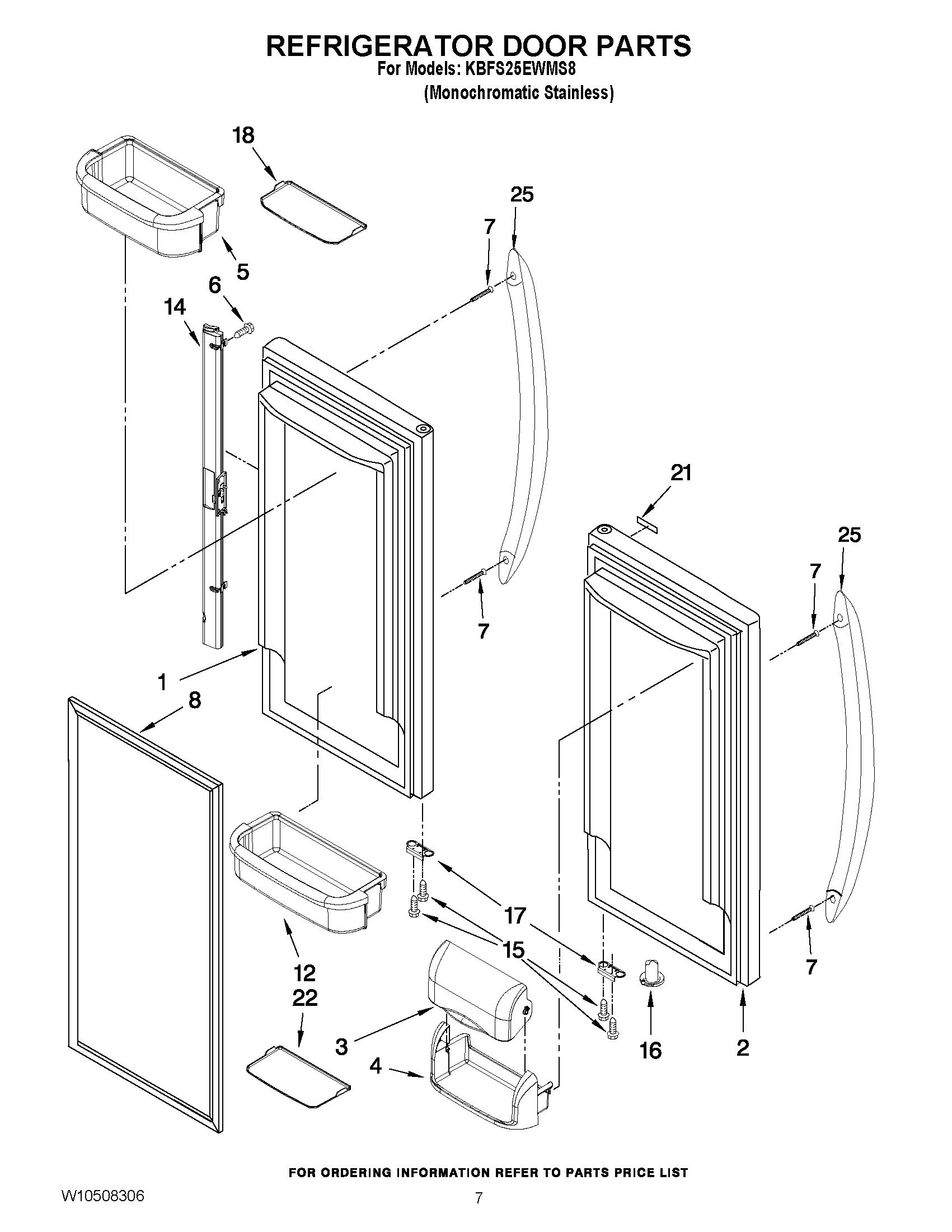

KBFS25EWMS8 04 – REFRIGERATOR DOOR PARTS

KBFS25EWMS8 04 – REFRIGERATOR DOOR PARTS

Written by

in

KBFS25EWMS8 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
113107852SQ Whirlpool Refrigerator DOR-FIP SS
213107855SQ Whirlpool Refrigerator Door – FIP Stainless Steel
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371193 Whirlpool Refrigerator Door Bin
6W11311945 Whirlpool Refrigerator Screw
7WPW10661886 Whirlpool Refrigerator Door Handle Screw
8GASKET-FIP
12BIN, SHELF (GALLON)
14WP12722803AP Whirlpool Refrigerator Mullion Rail
15WP98165 Whirlpool Screw
16WP12028505AP Whirlpool Closing Cam
17W11703060 Whirlpool Door Stop
18WPW10450021 Whirlpool Refrigerator Mat
21WPW10243391 Whirlpool Refrigerator Nameplate
22W11402028 Whirlpool Refrigerator Mat
25WPW10314517K Whirlpool Refrigerator Handle
