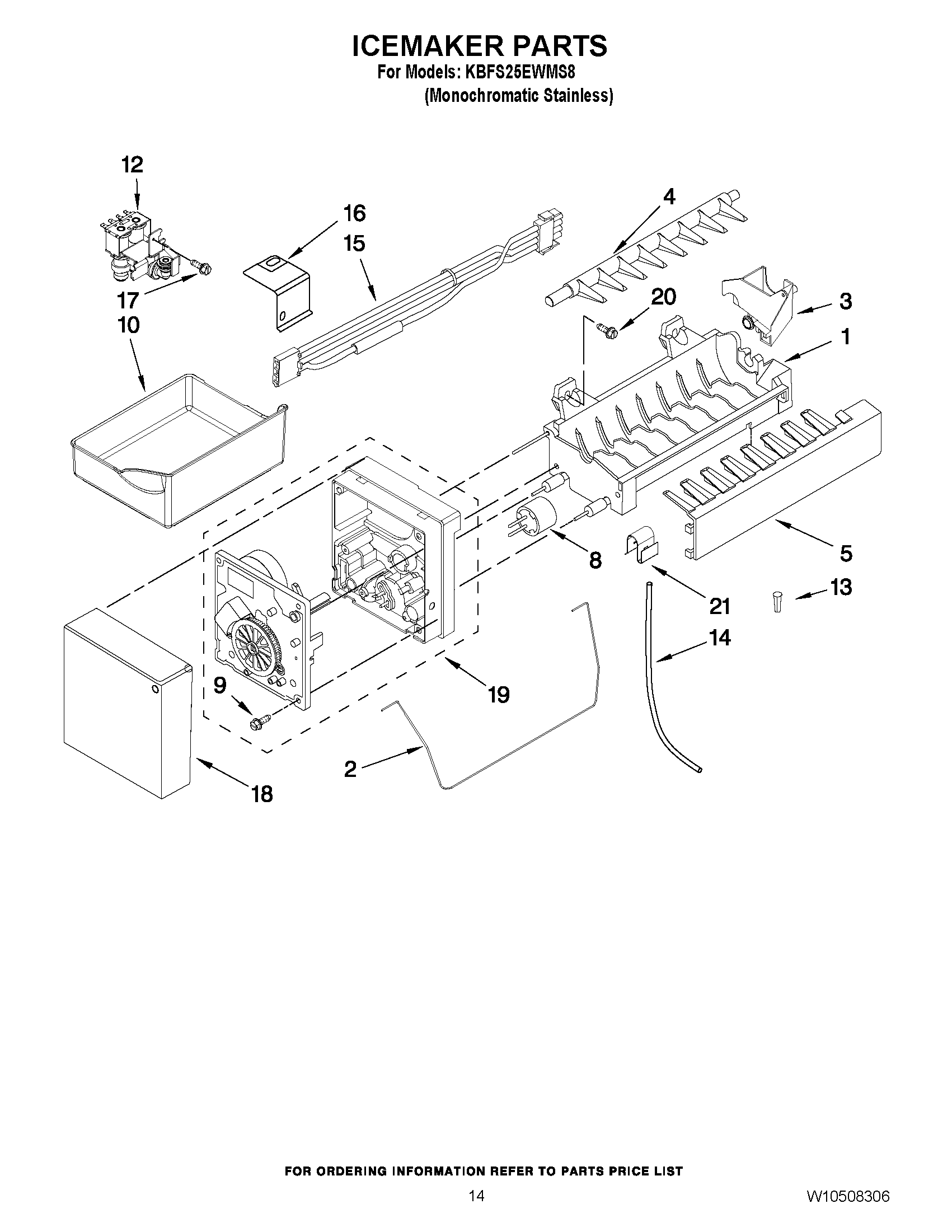

KBFS25EWMS8 08 – ICEMAKER PARTS

Products

Position	Product
1	WPW10300025 Whirlpool Refrigerator Ice Mold
2	WPW10378255 Whirlpool Refrigerator Shut Off Arm
3	W10410073 Whirlpool Fill Cup Assembly
4	W10318914 Whirlpool Refrigerator Ejector Arm
5	WPW10122563 Whirlpool Refrigerator Stripper Arm
8	WP627985 Whirlpool Icemaker Cycling Thermostat
9	WP489464 Whirlpool Refrigerator Screw
10	WPW10171529 Whirlpool Refrigerator Ice Pan
12	VALVE-WATER INLET REFR
13	WPA3223101 Whirlpool Refrigerator Insert PL
14	W11120581 Whirlpool Refrigerator Water Tube
15	WPW10458985 Whirlpool Wire Harness
16	WP2256087 Whirlpool Refrigerator Bracket
17	WP489128 Whirlpool Refrigerator Screw
18	W10377174 Whirlpool Refrigerator Front Cover
19	WPW10281342 Whirlpool Refrigerator Motor Module
20	W10001240 Whirlpool Refrigerator Screw
21	WP628379 Whirlpool Refrigerator Clip
100	W10884390 Whirlpool Refrigerator Ice Maker Assembly
