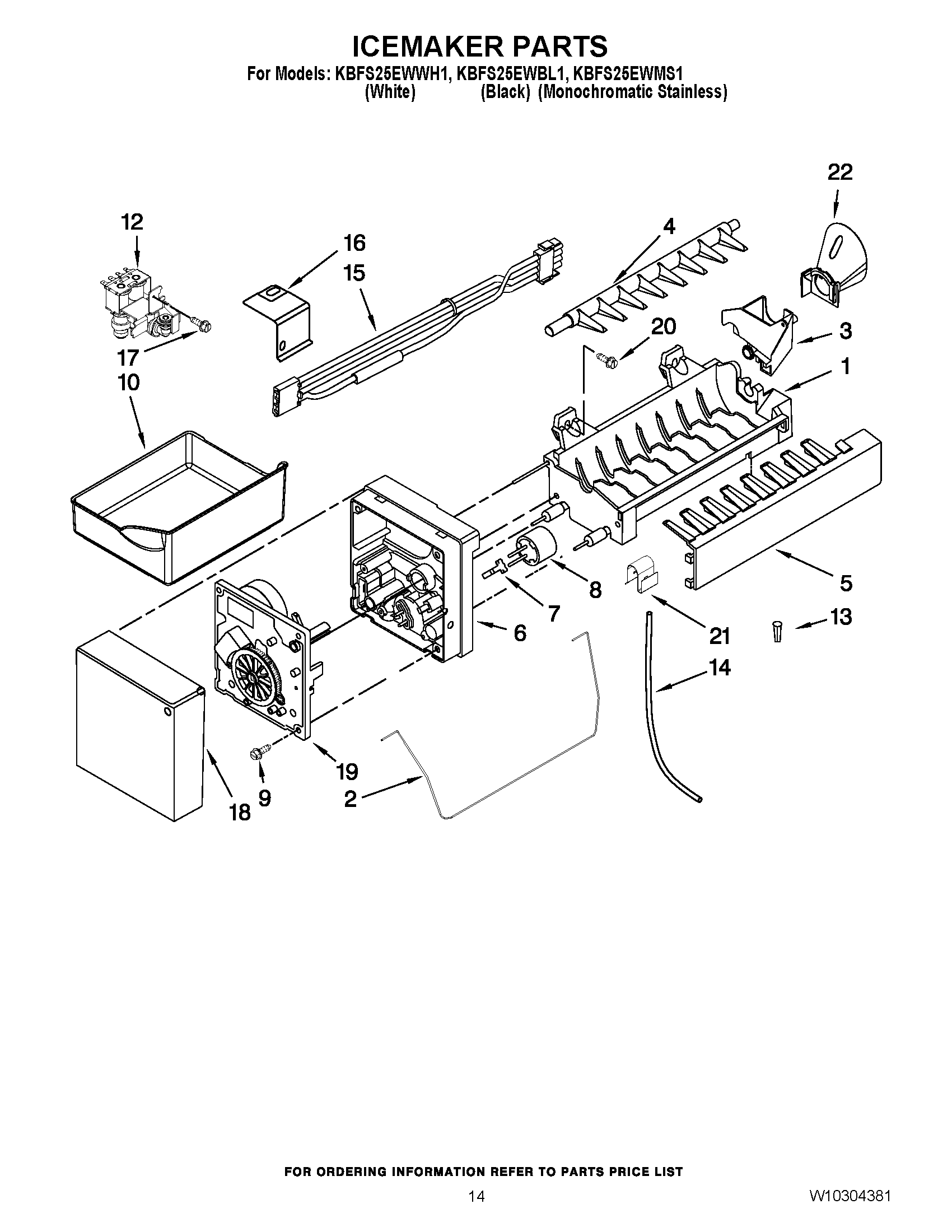

KBFS25EWWH1 08 – ICEMAKER PARTSadmin2025-04-26T12:06:17+00:00KBFS25EWWH1 08 – ICEMAKER PARTS ProductsPositionProductNIW11033771 Whirlpool Refrigerator Coupling1WPW10190929 Whirlpool Refrigerator Ice Maker Mold2W11285509 Whirlpool Refrigerator Shut-Off Arm3W10122561 Whirlpool Refrigerator Cup Fill4WP627843 Whirlpool Refrigerator Ejector Arm5WP2182124 Whirlpool Refrigerator Stripper Arm6WP2195914 Whirlpool Refrigerator Ice Maker Housing7WP2315522 Whirlpool Refrigerator Clip8WP627985 Whirlpool Icemaker Cycling Thermostat9WP489464 Whirlpool Refrigerator Screw10WPW10171529 Whirlpool Refrigerator Ice Pan12WP12544124 Whirlpool Refrigerator Valve13WPA3223101 Whirlpool Refrigerator Insert PL14W11120581 Whirlpool Refrigerator Water Tube15WPD7813010 Whirlpool Refrigerator Wire Harness16WP2256087 Whirlpool Refrigerator Bracket17WP489128 Whirlpool Refrigerator Screw18WPW10289690 Whirlpool Ice Maker Cover198201515 Whirlpool Refrigerator Motor and Gear Module Kit20WP681249 Whirlpool Screw Assembly21WP628379 Whirlpool Refrigerator Clip2212918001 Whirlpool Refrigerator Funnel100D7824706Q Whirlpool Refrigerator Ice Maker Assembly
