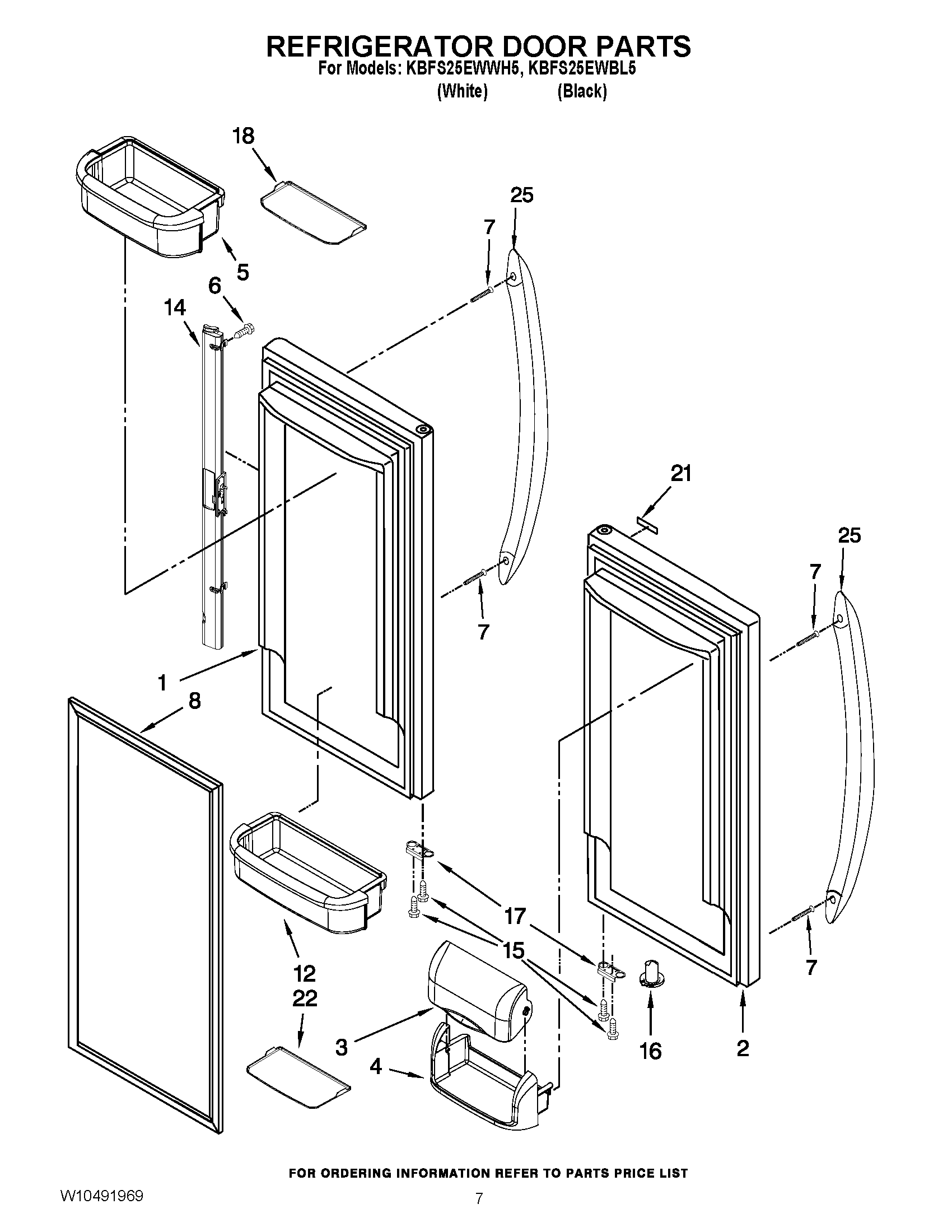

KBFS25EWWH5 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, LEFT (WHITE)
1	DOOR, LEFT (BLACK)
2	13107855WQ Whirlpool Refrigerator White FIP Door
2	13107855BQ Whirlpool Refrigerator Black Foam In Place Doorack
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371193 Whirlpool Refrigerator Door Bin
6	W11311945 Whirlpool Refrigerator Screw
7	WPW10661886 Whirlpool Refrigerator Door Handle Screw
8	GASKET-FIP
8	W10830189 Whirlpool Refrigerator Door Gasket
12	BIN, SHELF (GALLON)
14	RAIL-MULLN WHITE
14	WP12722803B Whirlpool Door Guide
15	WP98165 Whirlpool Screw
16	WP67003638 Whirlpool Closing Cam
16	WP67003639 Whirlpool Refrigerator Closer
17	12968202W Whirlpool Refrigerator Door Stop
17	W11708403 Whirlpool Door Stop
18	WPW10450021 Whirlpool Refrigerator Mat
21	WPW10243393 Whirlpool Dishwasher Nameplate
21	WPW10243392 Whirlpool Dishwasher Nameplate
22	W11402028 Whirlpool Refrigerator Mat
25	WPW10314515 Whirlpool Refrigerator Handle
25	HANDLE, DOOR (BLACK)
