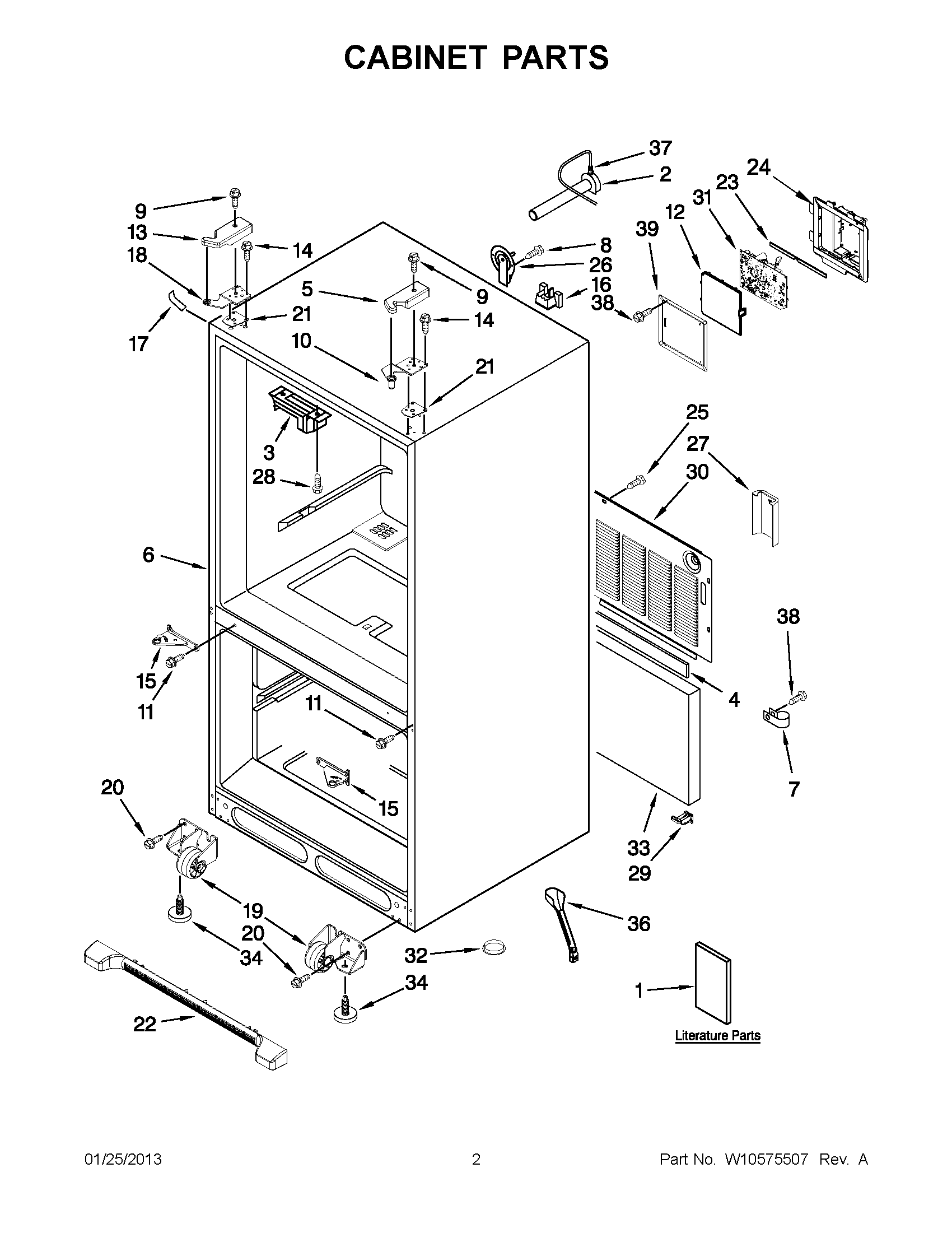

KBFS25EWWH9 01 – CABINET PARTS

Products

Position	Product
1	TECH SHEET
1	ENERGY GUIDE
1	USE & CARE GUIDE
2	W11176463 Whirlpool Refrigerator Water Tube
3	WP67003405 Whirlpool Pivot Block
4	B5759655 Whirlpool Refrigerator Gasket
5	WP67005956 Whirlpool Refrigerator Cover
5	67005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
6	CABINET (NOT A SERVICEABLE PART)
7	W11456069 Whirlpool Refrigerator Clamp
8	WP98165 Whirlpool Screw
9	WP8281196 Whirlpool Screw
10	W11592374 Whirlpool Refrigerator Top Door Hinge
11	WP67006380 Whirlpool Screw
12	W11226688 Whirlpool Refrigerator Cover
13	WPW10337634 Whirlpool Refrigerator Cover
13	W10337647 Whirlpool Refrigerator Cover
14	WP489349 Whirlpool Refrigerator Screw
15	13000002WD Whirlpool Refrigerator Door Hinge
15	W10918113 Whirlpool Refrigerator Door Hinge
15	W10918164 Whirlpool Refrigerator Door Hinge
15	W10918168 Whirlpool Refrigerator Door Hinge
16	WP12777701 Whirlpool Refrigerator Filler Block
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
17	12587703W Whirlpool Refrigerator Cover
18	W11592375 Whirlpool Door Hinge
19	WPW10515763 Whirlpool Refrigerator Cabinet Roller
19	WPW10515762 Whirlpool Refrigerator Cabinet Roller
20	67006564 Whirlpool Refrigerator Screw
21	12999502 Whirlpool Refrigerator Hinge Shim
21	12999501 Whirlpool Refrigerator Hinge Shim
22	WPW10534154 Whirlpool Refrigerator Front Grille
22	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23	GASKET, HV BOX
24	BOX, HV CONTROL
25	67006425 Whirlpool Refrigerator Screw
26	12726003 Whirlpool Refrigerator Water Cover
27	W10208593 Whirlpool Refrigerator Valve Cover
28	WP7101P126-60 Whirlpool Screw
29	W10528513 Whirlpool Tube Clamp
30	WPW10211855 Whirlpool Refrigerator Back Cover
31	WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core
32	A3076901 Whirlpool Refrigerator Plug
33	INSULATION, SOUND
34	WPW10141622 Whirlpool Leveler
36	W10619951 Whirlpool Drain Tube with Grommet
37	WPM0114003 Whirlpool Microwave Speed Clip Clamp
38	W11686675 Whirlpool Screw
39	12961602 Whirlpool Refrigerator Wire Cover
