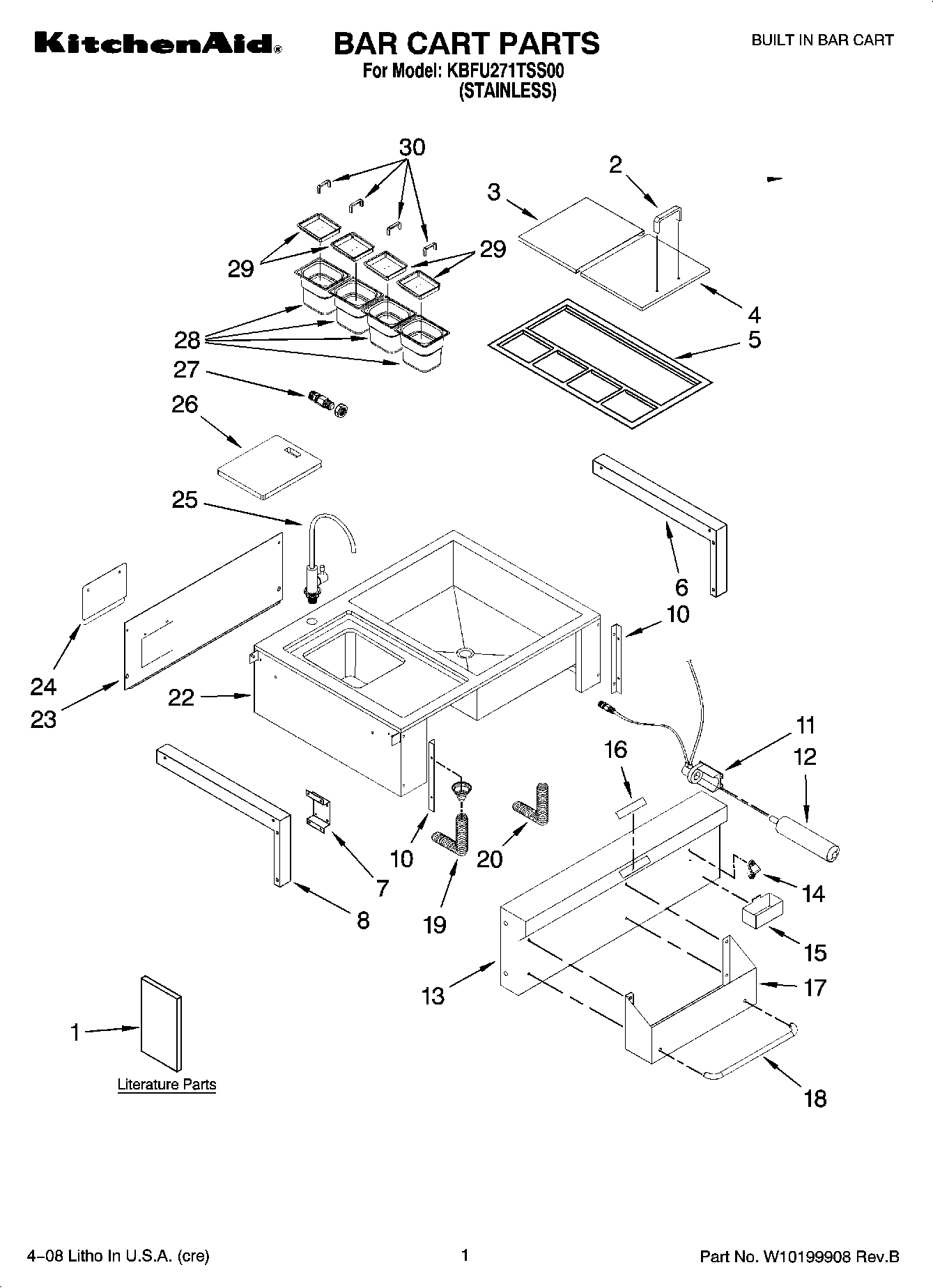

KBFU271TSS00 01 – BAR CART PARTS

Products

Position	Product
1	U & C Guide
2	Handle
3	Cover, Back
4	Cover, Front
5	Cover, Frame
6	Flange, Right
7	Bracket, Filter
8	Flange, Left
10	Trim, Panel (Right)
10	Trim, Panel (Left)
11	Tube (Drain, Water)
11	Tube (Supply, Water)
12	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
13	Panel, Control
14	Opener, Bottle
15	Bin, Bottle Cap
16	Nameplate
17	Tray, Condiment
18	Handle, Tray
19	Tube, Sink Drain
20	Tube, Ice Bin
22	Base, Sink (Not Serviced)
23	Panel, Rear
24	Panel, Access
25	FAUCET
26	Board, Cutting
27	Connector, Tube
28	Bin, Condiment
29	Cover, Bin
30	Handle, Bin
