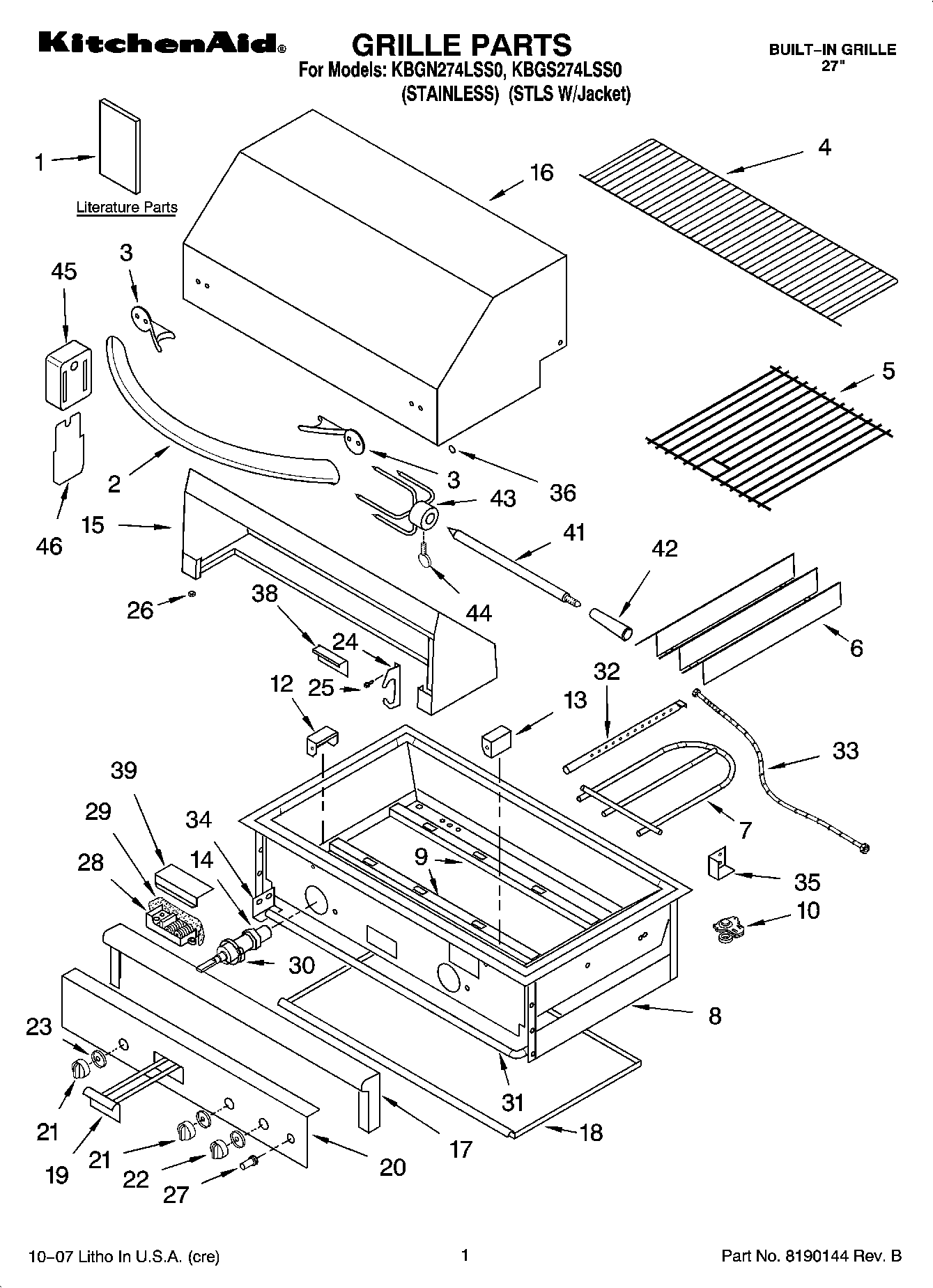

KBGN274LSS0 01 – GRILLE PARTSadmin2025-04-26T12:05:07+00:00KBGN274LSS0 01 – GRILLE PARTS
Products
| Position | Product |
|---|
| WPL 8190140 |
| WPL 8190156 |
| WPL 8190158 |
| WPL 8190737 |
| WPL 8190161 |
| WPL 8190162 |
| WPL 8190165 |
| WPL 8190167 |
| WPL 8190169 |
| WPL 8190178 |
| Wire, Battery |
| WPL 8190166 |
| Electrode Kit |
| WPL ARI78431A4 |
| WPL 8190174 |
| Elbow 3/8 to 1/2 |
| Thermocouple, IR |
| WPL 8190173 |
| WPL 8190125 |
| Cover, Bullnose |
| Screw 1/4-20X3/8SS |
| WPW10139757 Whirlpool Nut |
| Screw 18X1/2 Pan |
| Logo, Kitchenaid |
| Nut, Combinatio |
| WP2004333 Whirlpool Refrigerator Nut |
| WPL 8190123 |
| WP67006715 Whirlpool Refrigerator Screw |
| WPL 8190124 |
| Clip, J Type 8-32 |
| 1 | Literature Parts (U & C Guide / Instructions, Installation) |
| 2 | Handle, Hood |
| 3 | Insulator, Handle |
| 4 | Shelf, Warmer |
| 5 | Grate (2) |
| 6 | Plate, Sear (2) |
| 7 | Burner, Main (2) |
| 8 | Fire Box Asy (Not Serviced) |
| 9 | Hanger, Burner (2) |
| 10 | Regulator 4/11 |
| 12 | Left Collector Box |
| 13 | Right Collectr Box |
| 14 | Orifices-Nat Gas |
| 15 | Hood Asy, Rear |
| 16 | Hood Asy, Front |
| 17 | Bullnose Asy |
| 18 | Tray, Drip |
| 19 | Tray Asy, Smoker |
| 20 | Panel, Front |
| 21 | Knob, Burner (4) |
| 22 | Knob, Smoker/IR |
| 23 | Bezel (6) |
| 24 | Saddle, Spit (2) |
| 25 | WPW10068250 Whirlpool Dishwasher Screw |
| 26 | Spacer, Hood (2) |
| 27 | Switch, Igniter |
| 28 | Module, Spark (4 Spark) |
| 29 | Insulation, Module |
| 30 | Valve, Burner (Smoker / IR) |
| 30 | Valve, Burner (Main (4)) |
| 31 | Manifold |
| 32 | Burner, Smoker |
| 33 | Flex Tube, Smoker |
| 34 | Bracket, Manifold |
| 35 | Stop, Hood (Left) |
| 35 | Stop, Hood (Right) |
| 36 | Plug, Hole (4) |
| 38 | Cover, Rear |
| 39 | Shield, Igniter |
| 41 | Rod, Spit |
| 42 | Handle, Rotisserie |
| 43 | Skewer (2) |
| 44 | Screw, Thumb (2) |
| 45 | Motor, Rotisserie |
| 46 | Bracket, Motor |
