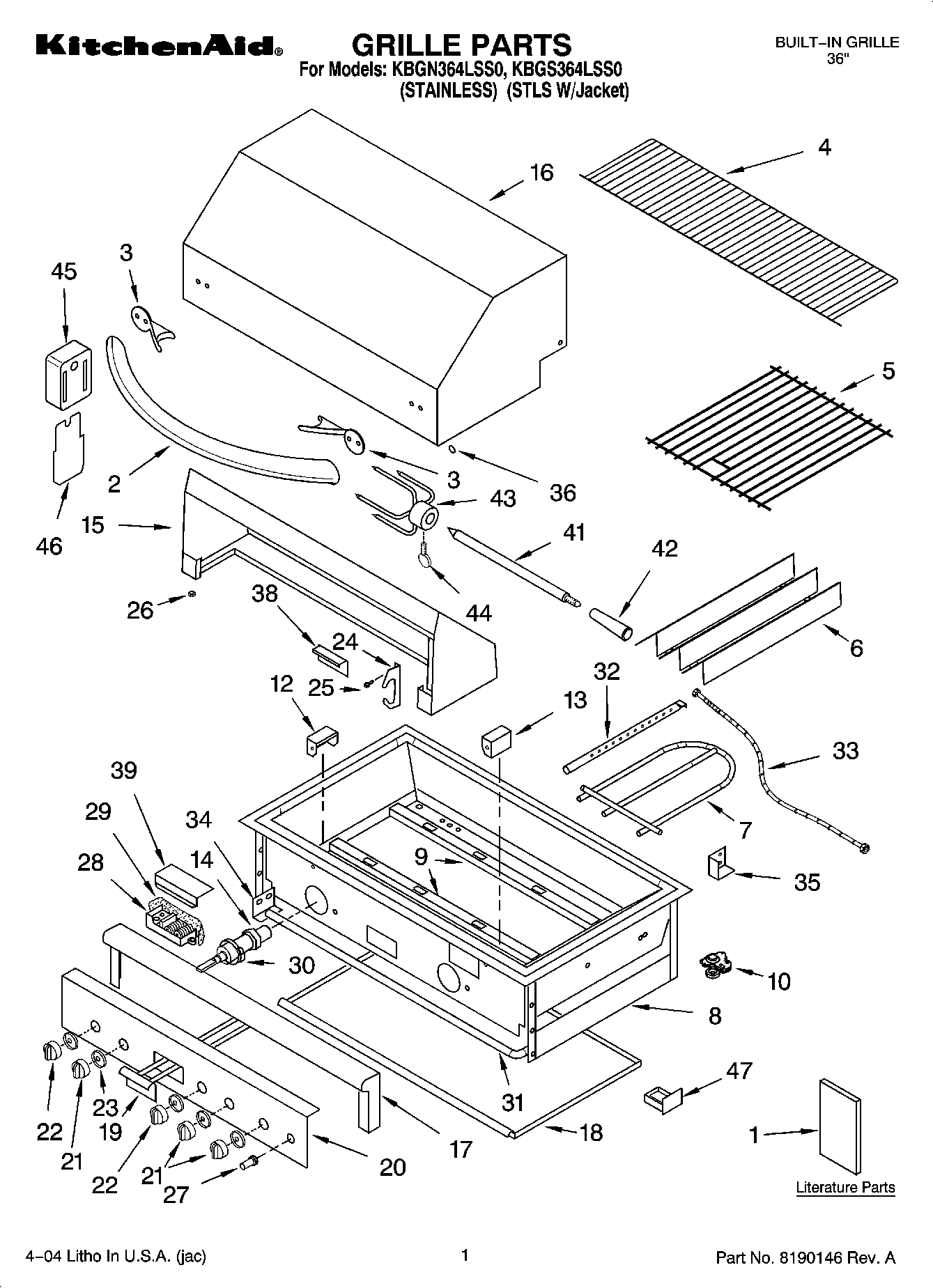

KBGN364LSS0 01 – GRILLE PARTS

Products

Position	Product
1	Literature Parts (U & C Guide / Instructions, Installation)
2	Handle, Hood
3	Insulator, Handle
4	Shelf, Warmer
5	Grate (2)
6	Plate, Sear (2)
7	Burner, Main (2)
8	Fire Box Asy (Not Serviced)
9	Hanger, Burner (2)
10	Regulator 4/11
12	Left Collector Box
13	Right Collectr Box
14	Orifices-Nat Gas
15	Hood Asy, Rear
16	Hood Asy, Front
17	Bullnose Asy
18	Tray, Drip
19	Tray Asy, Smoker
20	Panel, Front
21	Knob, Burner (4)
22	Knob, Smoker/IR
23	Bezel (6)
24	Saddle, Spit (2)
25	WPW10068250 Whirlpool Dishwasher Screw
26	Spacer, Hood (2)
27	Switch, Igniter
28	Module, Spark (4 Spark)
28	Module, Spark (2 Spark)
29	Insulation, Module
30	Valve, Burner (Smoker / IR)
30	Valve, Burner (Main (4))
31	MANIFOLD
32	Burner, Smoker
33	Flex Tube, Smoker
34	Bracket, Manifold
35	Stop, Hood (Right)
35	Stop, Hood (Left)
36	Plug, Hole (4)
38	Cover, Rear
39	Shield, Igniter
41	Rod, Spit
42	Handle, Rotisserie
43	Skewer (2)
44	Screw, Thumb (2)
45	Motor, Rotisserie
46	Bracket, Motor
47	Wire, Battery
47	Thermocouple, IR
47	WPL 8190738
47	WPL 8190192
47	WPL ARI78444A2
47	Electrode/Wire Kit
47	WPL 8190174
47	WPL 8190140
47	Tray, Battery
47	WPL 8190124
47	WPL 8190123
47	Nut, Combinatio
47	Screw 18X1/2 Pan
47	Cover, Bullnose
47	Logo, Kitchenaid
47	Clip, J Type 8-32
47	WPW10139757 Whirlpool Nut
47	WP2004333 Whirlpool Refrigerator Nut
47	WPL 8190125
47	WPL 8190156
47	WPL 8190196
47	WPL 8190173
47	Screw 1/4-20X3/8SS
47	WPL 8190178
47	WPL 8190169
47	WPL 8190167
47	WPL 8190165
47	WPL 8190162
47	WPL 8190158
47	WP67006715 Whirlpool Refrigerator Screw
