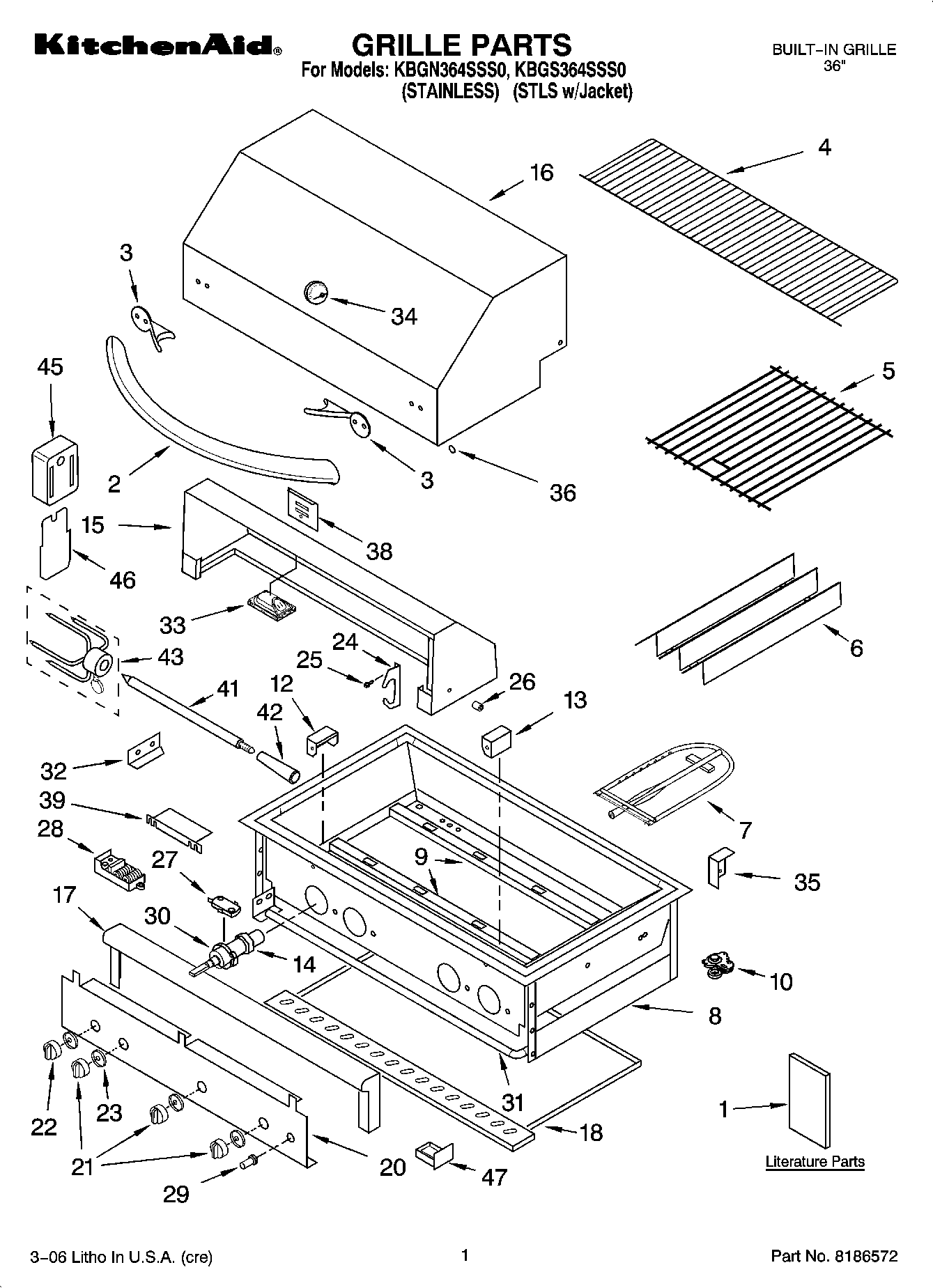

KBGN364SSS0 01 – GRILLE PARTS

Products

Position	Product
1	U & C Guide / Instructions, Installation
2	Handle, Hood
3	Insulator, Handle
4	Shelf, Warmer
5	Grate (2)
6	Plate, Sear (2)
7	Burner, Main (2)
8	Fire Box Asy (Not Serviced)
9	Hanger, Burner (2)
10	REGULATOR
12	Left Collector Box
13	Right Collectr Box
14	Orifices (45)
14	Orifice (IR)
14	Orifices (50 Nat. Gas IR)
15	Hood Asy, Rear
16	Hood Asy, Front
17	Bullnose Asy
18	Tray, Drip
20	Panel, Front
21	Knob, Burner (2)
22	Knob, Rotisserie
23	Bezel (3)
24	Saddle, Spit (2)
25	WPW10068250 Whirlpool Dishwasher Screw
26	Spacer, Hood (2)
27	Switch, Igniter
28	Module, Spark
29	Switch, Light
30	Valve, Burner (Rotisserie/IR)
30	Valve, Burner (Main (2))
31	MANIFOLD
32	Jack, PLug
33	Light, Halogen
34	Thermostat
35	Stop, Hood (Right)
35	Stop, Hood (Left)
36	Plug, Hole (4)
38	Cover, Rear
39	Shield, Igniter
41	Rod, Spit
42	Handle, Rotisserie
43	Skewer (2)
45	Motor, Rotisserie
46	Bracket, Motor
47	WPL 8190140
47	Infared Weld Asy
47	WPL 8190123
47	Nut, Combinatio
47	Screw 18X1/2 Pan
47	Screw 1/4-20X3/8SS
47	Clip, J Type 8-32
47	WPW10139757 Whirlpool Nut
47	WP2004333 Whirlpool Refrigerator Nut
47	WP8281196 Whirlpool Screw
47	WP120393 Whirlpool Washer Assembly
47	WP488130 Whirlpool Air Conditioner Nut
47	WPL ARI78449A1
47	Electrode/Wire Kit
47	Tray, Battery Assy
47	WPL 8190124
47	WPL 8190174
47	Thermocouple, IR
47	Cover, IR Igntr
47	Bracket, IR Igntr
47	Washer, Hood Hndle
47	Transformer
47	Logo, Kitchenaid
47	WP67006715 Whirlpool Refrigerator Screw
47	WPL 8190178
47	WPL 8190158
47	Cover, Bullnose
47	WPL 8190125
47	WPL ARI78450A4
