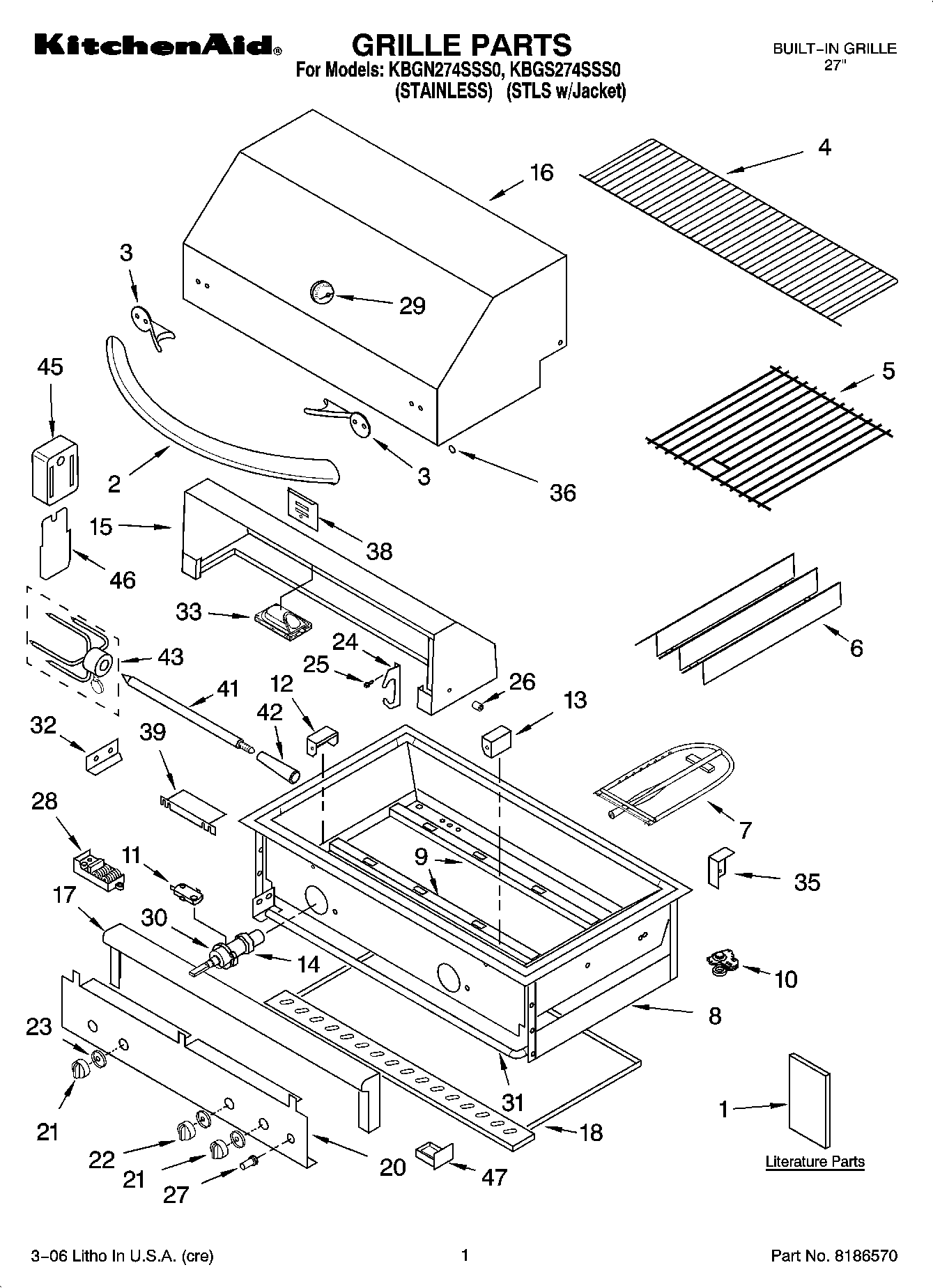

KBGS274SSS0 01 – GRILLE PARTSadmin2025-04-26T11:45:28+00:00KBGS274SSS0 01 – GRILLE PARTS
Products
| Position | Product |
|---|
| 1 | U & C Guide / Instructions, Installation |
| 2 | Handle, Hood |
| 3 | Insulator, Handle |
| 4 | Shelf, Warmer |
| 5 | Grate (2) |
| 6 | Plate, Sear (2) |
| 7 | Burner, Main (2) |
| 8 | Fire Box Asy (Not Serviced) |
| 9 | Hanger, Burner (2) |
| 10 | REGULATOR |
| 12 | Left Collector Box |
| 13 | Right Collectr Box |
| 14 | Orifices (50 Nat. Gas IR) |
| 14 | Orifices (45) |
| 15 | Hood Asy, Rear |
| 16 | Hood Asy, Front |
| 17 | Bullnose Asy |
| 18 | Tray, Drip |
| 20 | Panel, Front |
| 21 | Knob, Burner (2) |
| 22 | Knob, Rotisserie |
| 23 | Bezel (3) |
| 24 | Saddle, Spit (2) |
| 25 | WPW10068250 Whirlpool Dishwasher Screw |
| 26 | Spacer, Hood (2) |
| 27 | Switch, Light |
| 28 | Module, Spark |
| 29 | Thermostat |
| 30 | Valve, Burner (Main (2)) |
| 30 | Valve, Burner (Rotisserie/IR) |
| 31 | MANIFOLD |
| 32 | Jack, PLug |
| 33 | Light, Halogen |
| 35 | Stop, Hood (Left) |
| 35 | Stop, Hood (Right) |
| 36 | Plug, Hole (4) |
| 38 | Cover, Rear |
| 39 | Shield, Igniter |
| 41 | Rod, Spit |
| 42 | Handle, Rotisserie |
| 43 | Skewer (2) |
| 45 | Motor, Rotisserie |
| 46 | Bracket, Motor |
| 47 | Screw 1/4-20X3/8SS |
| 47 | Screw 18X1/2 Pan |
| 47 | Clip, J Type 8-32 |
| 47 | WPW10139757 Whirlpool Nut |
| 47 | WPL ARI78457A2 |
| 47 | WP2004333 Whirlpool Refrigerator Nut |
| 47 | WP67006715 Whirlpool Refrigerator Screw |
| 47 | WPL 8190123 |
| 47 | Electrode Kit |
| 47 | Cover, Bullnose |
| 47 | Nut, Combinatio |
| 47 | WPL 8190124 |
| 47 | WPL 8190125 |
| 47 | WPL ARI78458A5 |
| 47 | WPL 8190173 |
| 47 | WPL KFRK271SSS0 |
| 47 | Elbow 3/8 to 1/2 |
| 47 | Thermocouple, IR |
| 47 | Union, IR (Double End 3/8) |
| 47 | Elbow, Orifice (W/O Hood & Pin) |
| 47 | Cover, IR Igntr |
| 47 | Bracket, IR Igntr |
| 47 | Infared Weld Asy |
| 47 | Washer, Hood Hndle |
| 47 | Transformer |
| 47 | Logo, Kitchenaid |
| 47 | WPL 8190158 |
| 47 | Tray, Battery Assy |
