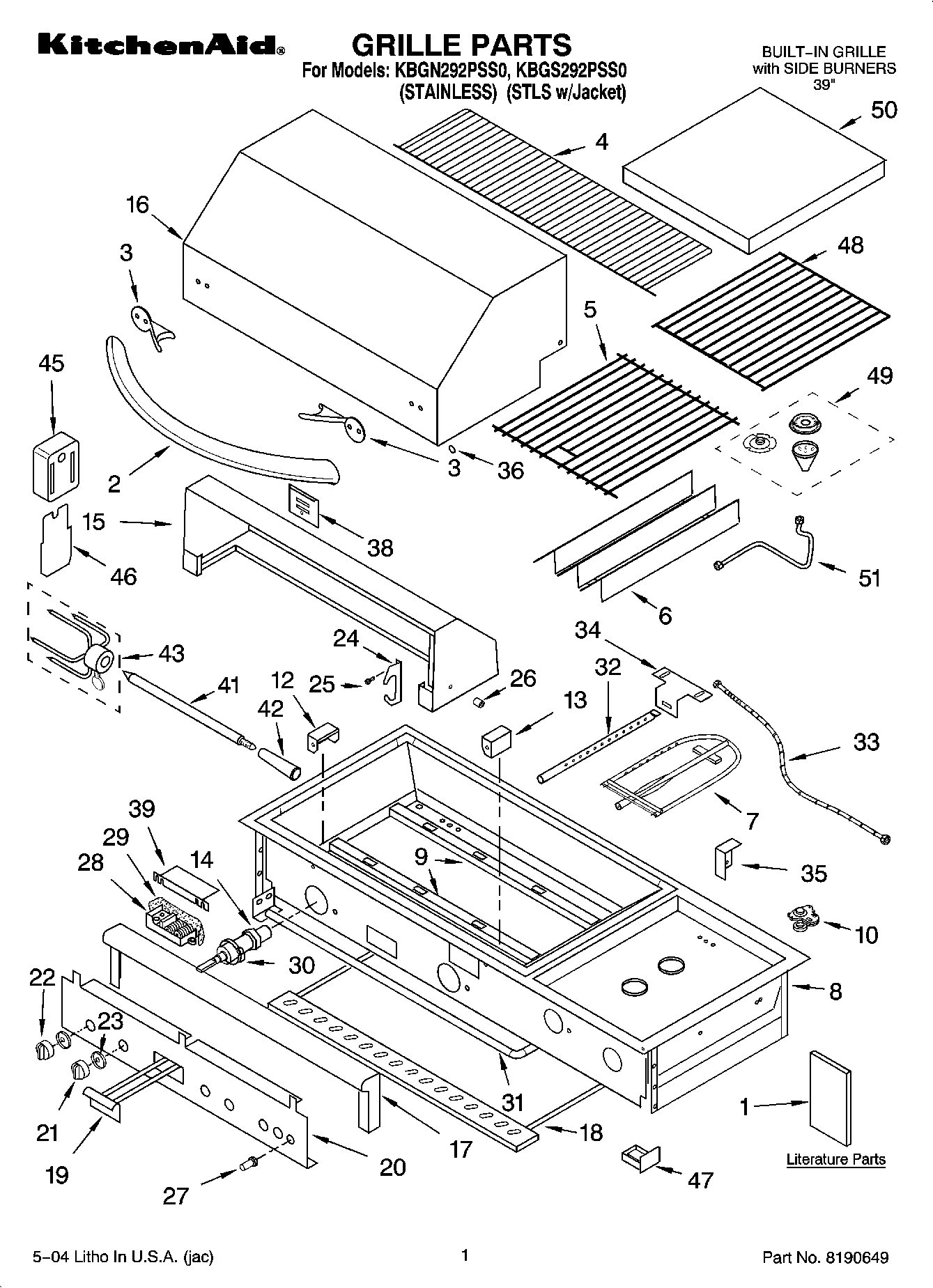

KBGS292PSS0 01 – GRILLE PARTS

KBGS292PSS0 01 – GRILLE PARTS

Written by

in

KBGS292PSS0 01 – GRILLE PARTS

Products

PositionProduct
1U & C Guide / Instructions, Installation (KBGN292PSS0)
1U & C Guide / Instructions, Installation (KBGS292PSS0)
2Handle, Hood
3Insulator, Handle
4Shelf, Warmer
5Grate (2)
6Plate, Sear (2)
7Burner, Main (2)
8Fire Box Asy (Not Serviced)
9Hanger, Burner (2)
10Regulator 4/11
12Left Collector Box
13Right Collectr Box
14Orifices-Nat Gas
15Hood Asy, Rear
16Hood Asy, Front
17Bullnose Asy
18Tray, Drip
19Tray Asy, Smoker
20Panel, Front
21Knob, Burner (4)
22Knob, Smoker/IR
23Bezel (6)
24Saddle, Spit (2)
25WPW10068250 Whirlpool Dishwasher Screw
26Spacer, Hood (2)
27Switch, Igniter (Main)
27Switch, Igniter (SideBurner)
28Module, Spark (2 Spark)
28Module, Spark (4 Spark)
29Insulation, Module
30Valve, Burner (Main (4))
30Valve, Burner (Smoker / IR)
30Valve, Burner (SideBurner (2))
31MANIFOLD
32Burner, Smoker
33Flex Tube, Smoker
35Stop, Hood (Left)
35Stop, Hood (Right)
36Plug, Hole (4)
38Cover, Rear
39Shield, Igniter
41Rod, Spit
42Handle, Rotisserie
43Skewer (2)
45Motor, Rotisserie
46Bracket, Motor
47Tray, Battery
48Grate, SideBurner
49Burner Assembly (2)
50Cover, SideBurner
51WPL 8190739
51Clip, J Type 8-32
51WPL 8190529
51WPL 8190528
51Logo, Kitchenaid
51WPL 8190525
51WPW10139757 Whirlpool Nut
51WP3400814 Whirlpool Screw
51WP2004333 Whirlpool Refrigerator Nut
51WP8281196 Whirlpool Screw
51WP308685 Whirlpool Microwave Screw
51Thermocouple, IR
51WP67006715 Whirlpool Refrigerator Screw
51WP488130 Whirlpool Air Conditioner Nut
51WPL 8190517
51WPL 8190516
51WPL 8190178
51WPL ARI78462A8
51WPL 8190125
51WPL 8190158
51WPL 8190169
51WPL 8190644
51WPL 8190161
51WPL 8190162
51WPL 8190167
51WPL 8190629
51WPL 8190124
51WPL 8190123
51WPL ARI78463A4
51Cover, Bullnose
51Latch-Magnetic
51WPL 8190460
51Screw 1/4-20X3/8SS
51WPL 8190457
51WPL 8190454
51Screw 18X1/2 Pan
51WPL 8190431
51Nut, Combinatio
51WPL 8190196
51WPL 8190165
