KBHC109JBL04 06 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
350930 Whirlpool White Spray Paint
261900 Whirlpool Microwave Spray
Harness, Main
WIRING HARNESS PARTS
WP261869 Whirlpool Microwave Paint
4450950 Whirlpool Oven Conduit
4452400 Whirlpool Microwave Wire Harness
Ground (M/W)
WP4448950 Whirlpool Screw
8303838 Whirlpool Oven Wire Harness
72017 Whirlpool Appliance Touch-Up Paint White
FOLLOWING PARTS NOT ILLUSTRATED
4450800 Whirlpool Oven Screw
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WP482338 Whirlpool Refrigerator Adhesive

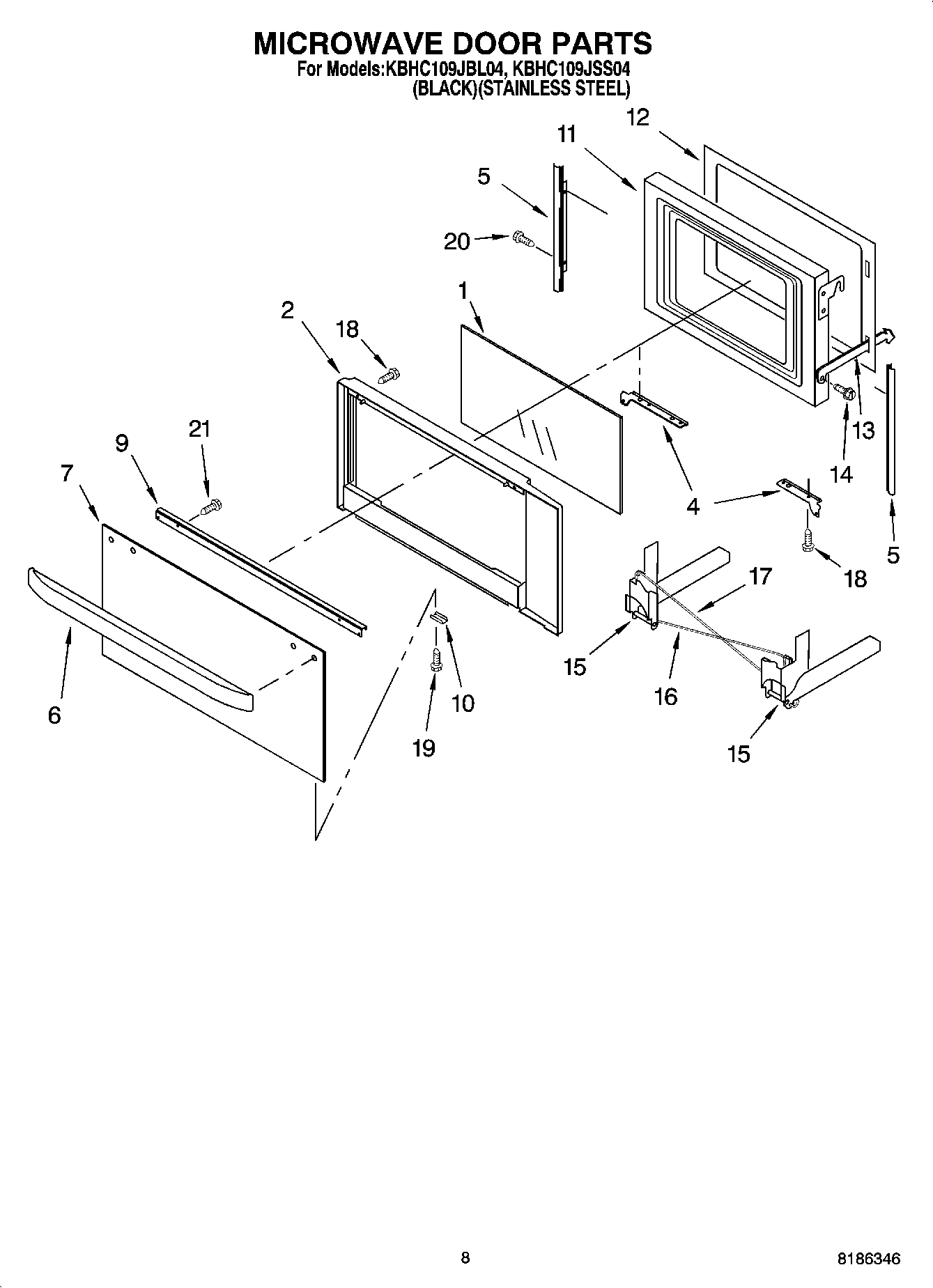

1Glass, Middle
2WP8303556 Whirlpool Microwave Door Frame
4Bracket, Mounting (Left Side)
4Bracket, Mounting (Right Side)
5Filler, Side
5Filler, Side (Left Side)
6Handle, Door (Black)
6Handle, Door (Stainless)
7Glass, Outer (Black)
7WP4452259 Whirlpool Door Glass
9Bracket, Handle
10Retainer, Glass-Clip (Stainless Steel)
10Clip, Retainer (Black Model)
11Plate, Door
12Frame, Inner
13Strap, Door
14Screw
15WP4375323 Whirlpool Microwave Door Hinge
15WP4375324 Whirlpool Microwave Door Hinge
16WP4452398 Whirlpool Microwave Door Spring
16WP4451009 Whirlpool Microwave Spring
17WP4452395 Whirlpool Spring Assembly
18WP4449809 Whirlpool Screw
19Screw
20WP4450038 Whirlpool Screw
21WPW10132940 Whirlpool Dishwasher Screw
21Screw
