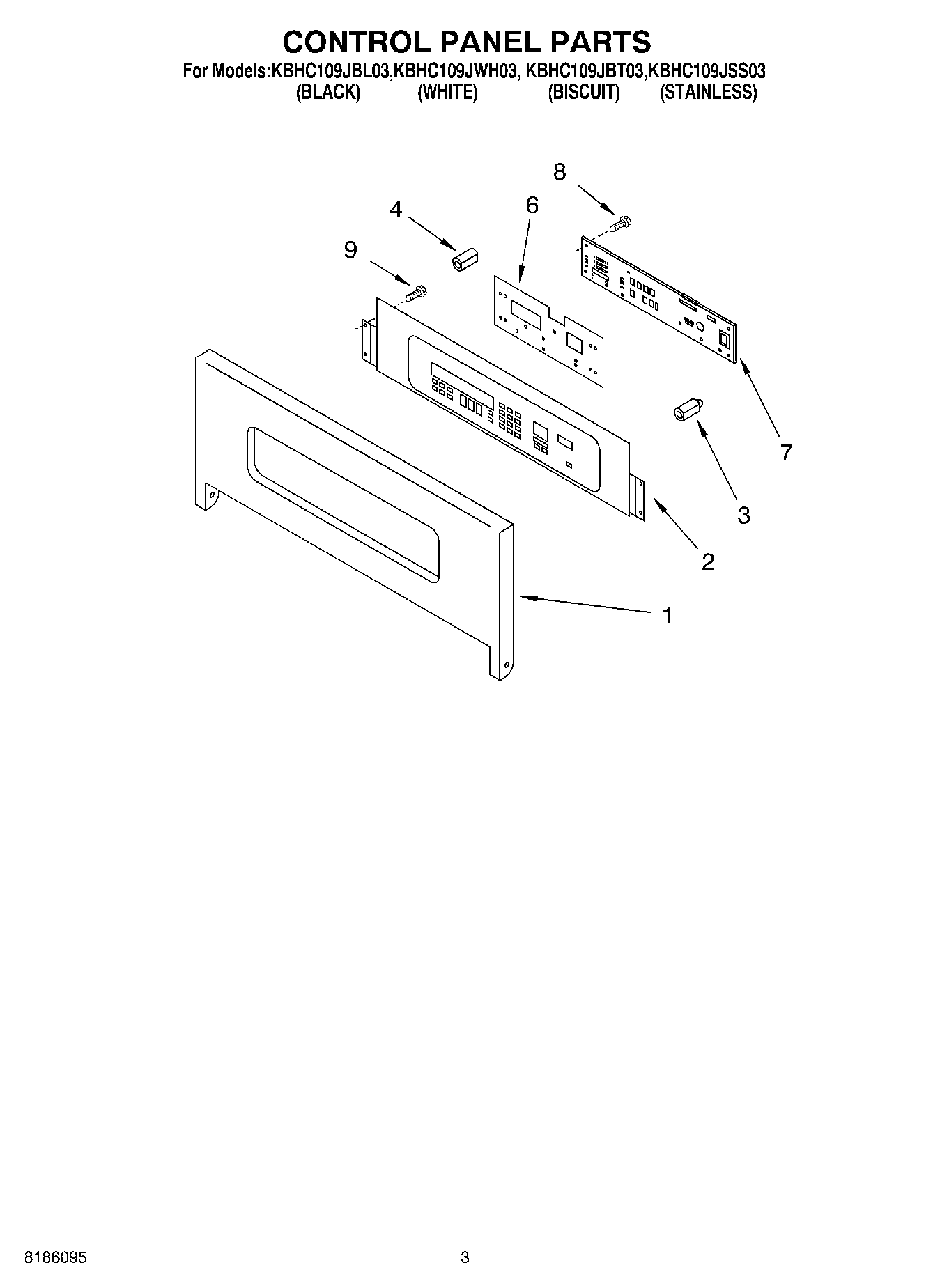

KBHC109JBT03 02 – CONTROL PANEL PARTS

KBHC109JBT03 02 – CONTROL PANEL PARTS

Written by

in

KBHC109JBT03 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Panel, Control (Biscuit)
1Panel, Control (Stainless)
1Panel, Control (Black)
1Panel, Control (White)
2Switch, Membrane (Biscuit)
2Switch, Membrane (Stainless)
2Switch, Membrane (White)
2Switch, Membrane (Black)
3Insulation, Board
4Insulation, Board Support
6Insulator, Dialectric
7Microcomputer
8Screw
9WP3400832 Whirlpool Screw
