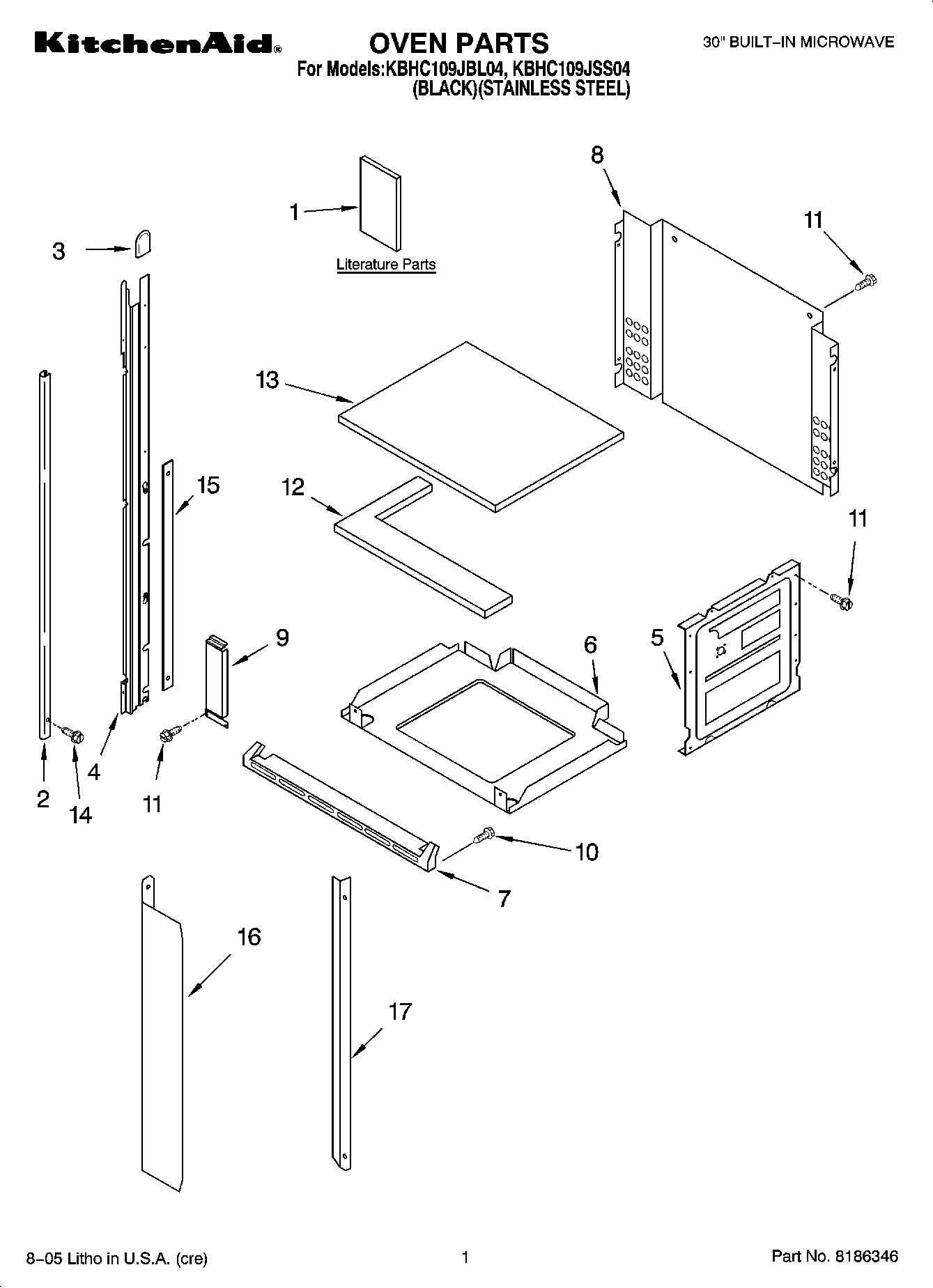

KBHC109JSS04 01 – OVEN PARTS

KBHC109JSS04 01 – OVEN PARTS

Written by

in

KBHC109JSS04 01 – OVEN PARTS

Products

PositionProduct
1Use & Care Guide (Microwave)
1Safe Cooking Tips (French)
1Safe Cooking Tips
1Easy Set Guide
1Installation Instructions
1Tech Sheet
1Chart, High Speed Cooking
1Cooking Guide (Lable)
2Trim, Side (RH Stainless)
2Trim, Side (LH Stainless)
2Trim, Side (RH Black)
2Trim, Side (LH Black)
3Cap, Spacer
4Rail, Side (Left Side)
4Rail, Side (Right Side)
5Side, Combo
6Base, Chassis
7Trim, Bottom (Stainless)
7Trim, Bottom (Black)
8Chassis, Back
9Extension Filler
10WP3400832 Whirlpool Screw
11WP4449809 Whirlpool Screw
12WPL 4452492
13WPL 4452491
14WP8281236 Whirlpool Screw
14WP694091 Whirlpool Screw
15Spacer
16Bracket
17Bracket
