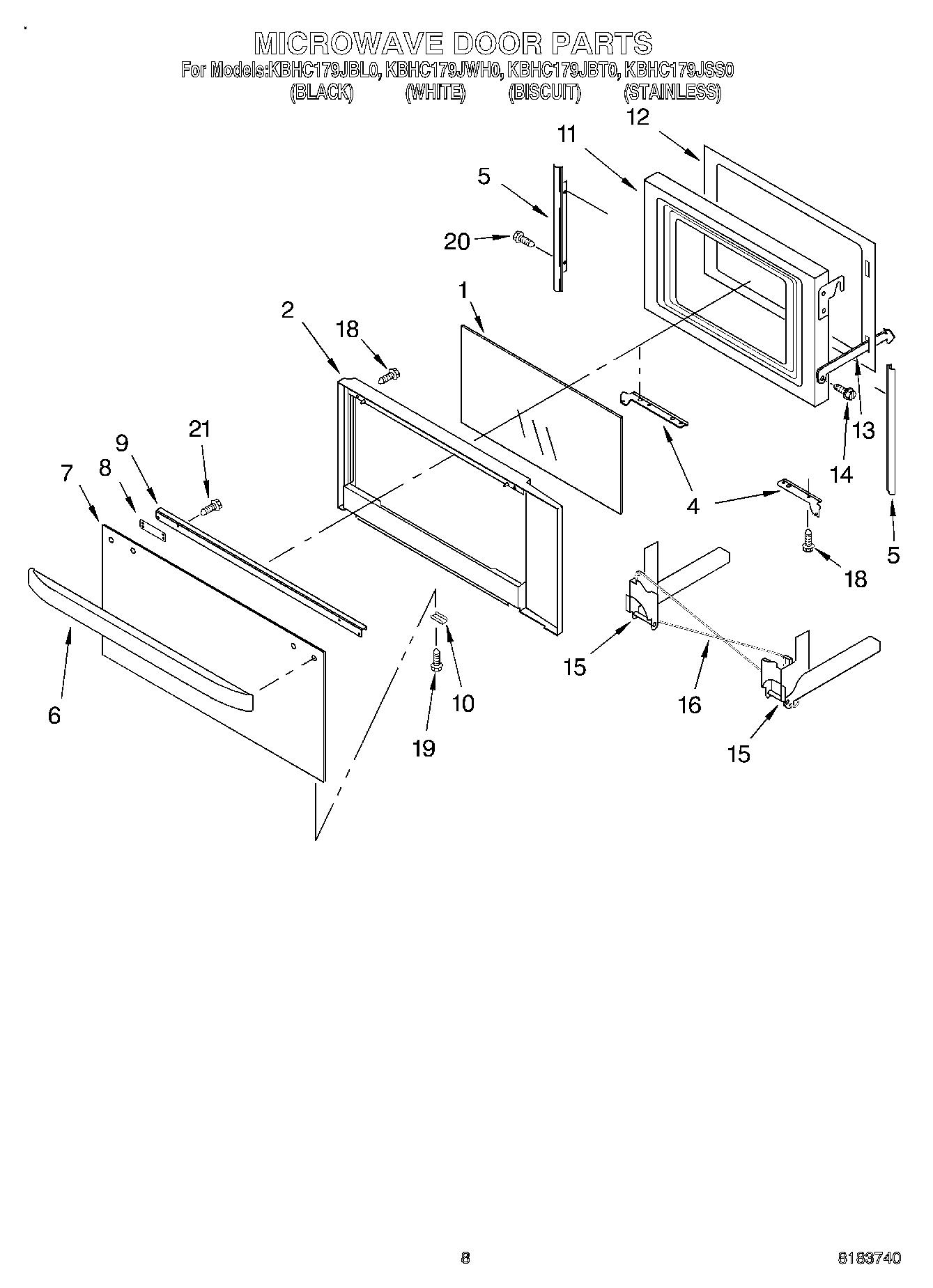

KBHC179JBL0 06 – MICROWAVE DOOR, OPTIONAL

Products

Position	Product
1	Glass, Middle
2	Frame, Door
4	Bracket, Mounting (Left Side)
4	Bracket, Mounting (Right Side)
5	Filler, Side
5	Filler, Side (Left Side)
6	Door Handle (Stainless Steel)
6	Handle, Door (Black)
6	Handle, Door (Biscuit)
6	Handle, Door (White)
7	Glass, Outer (White)
7	Glass, Outer (Stainless)
7	Glass, Outer (Black)
7	Glass, Outer (Biscuit)
8	Spacer (Stainless)
9	Bracket, Handle
10	RETAINER,GLASS CLIP (BISCUIT)
10	Clip, Retainer (White Model)
10	Clip, Retainer (Black Model)
10	Retainer, Glass-Clip (Stainless Steel)
11	Plate, Door
12	Frame, Inner
13	Strap, Door
14	Screw
15	WP4375324 Whirlpool Microwave Door Hinge
15	WP4375323 Whirlpool Microwave Door Hinge
16	WP4451008 Whirlpool Microwave Spring
16	WP4452398 Whirlpool Microwave Door Spring
18	WP4449809 Whirlpool Screw
19	Screw
20	WP4450038 Whirlpool Screw
21	WPW10132940 Whirlpool Dishwasher Screw
21	72032 Whirlpool Touch Up Paint Black
21	4450800 Whirlpool Oven Screw
21	4450950 Whirlpool Oven Conduit
21	72017 Whirlpool Appliance Touch-Up Paint White
21	350930 Whirlpool White Spray Paint
21	285006 Whirlpool Spray
21	WP482338 Whirlpool Refrigerator Adhesive
21	WP261869 Whirlpool Microwave Paint
21	4452400 Whirlpool Microwave Wire Harness
21	261900 Whirlpool Microwave Spray
21	WP4448950 Whirlpool Screw
21	Ground (M/W)
21	Screw
21	Harness, Main
