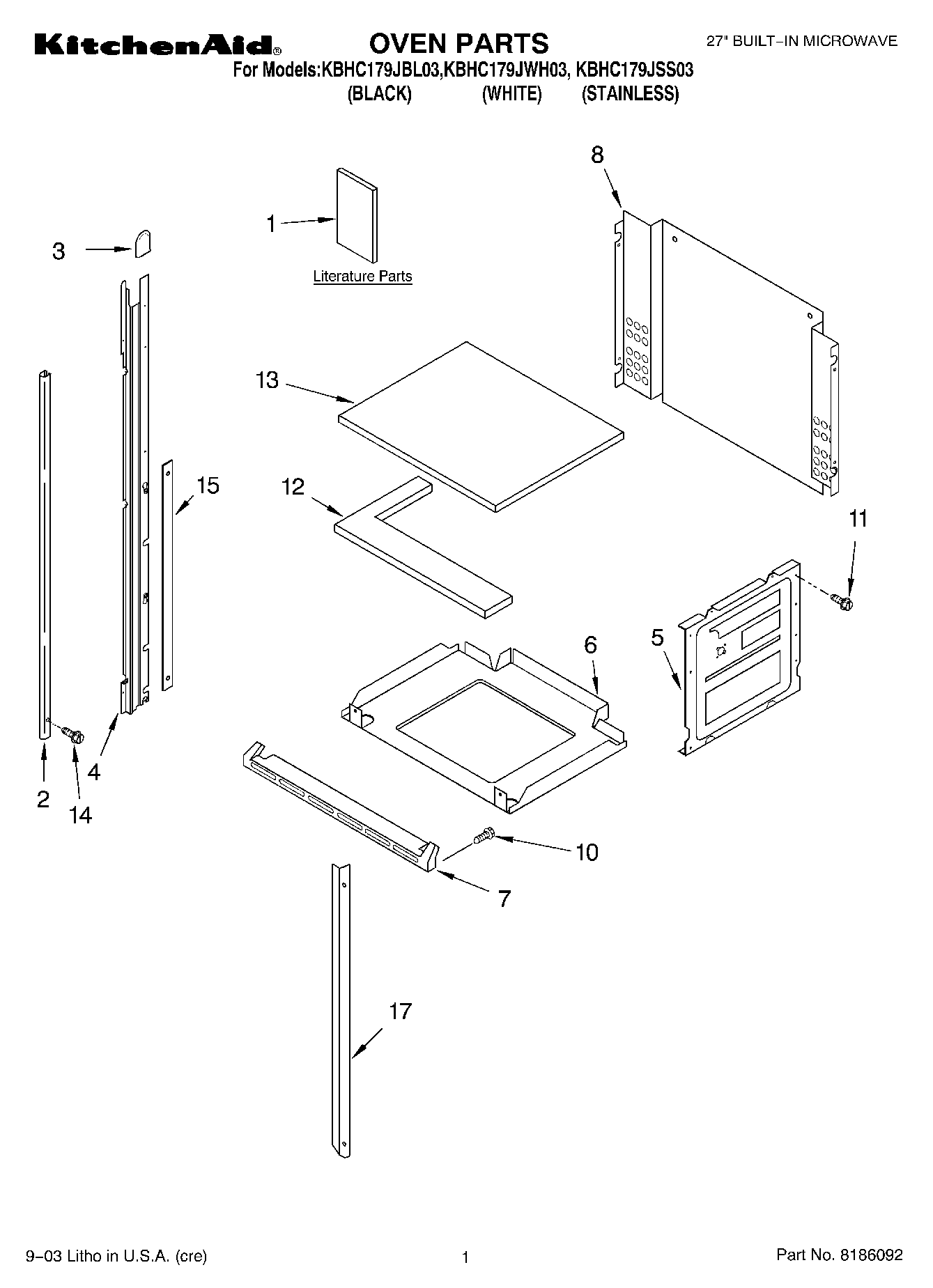

KBHC179JBL03 01 – OVEN PARTS

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Use & Care Guide (Microwave))
1	Literature Parts (Chart, High Speed Cooking)
1	Literature Parts (Tech Sheet)
1	Literature Parts (Cooking Guide (Lable))
1	Literature Parts (Installation Instructions)
1	Literature Parts (Easy Set Guide)
2	Trim, Side (RH White)
2	Trim, Side (RH Stainless)
2	Trim, Side (LH Stainless)
2	Trim, Side (RH Black)
2	Trim, Side (LH Black)
2	Trim, Side (LH White)
3	Cap, Spacer
4	Rail, Side (Left Side)
4	Rail, Side (Right Side)
5	Side, Combo
6	Base, Chassis
7	Trim, Bottom (White)
7	Trim, Bottom (Black)
7	Trim, Bottom (Stainless)
8	Chassis, Back
10	WP3400832 Whirlpool Screw
11	WP4449809 Whirlpool Screw
12	WPL 4452492
13	WPL 4452491
14	WP8281236 Whirlpool Screw
14	WP694091 Whirlpool Screw
15	Spacer
17	Bracket
