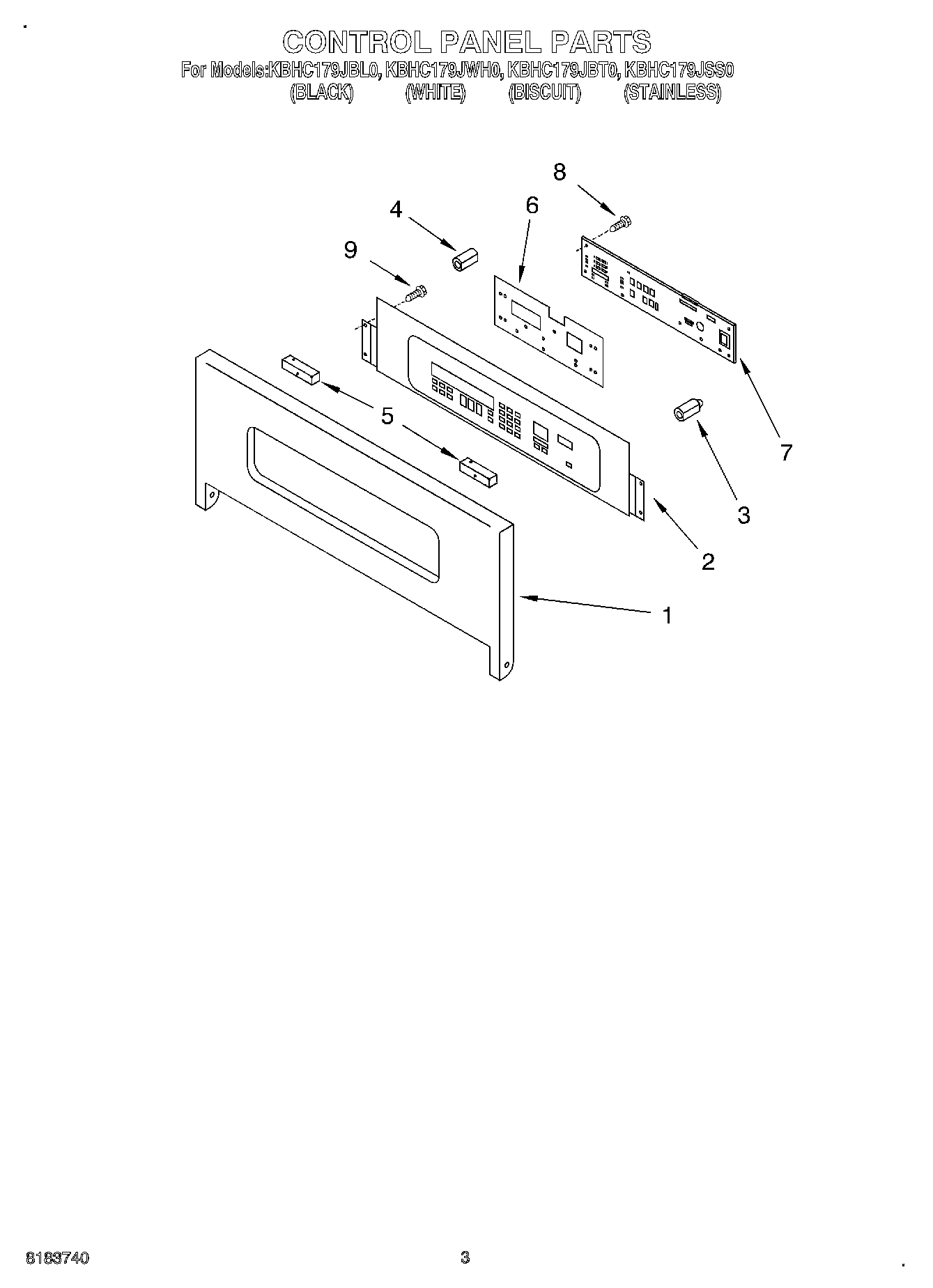

KBHC179JBT0 02 – CONTROL PANEL

KBHC179JBT0 02 – CONTROL PANEL

Written by

in

KBHC179JBT0 02 – CONTROL PANEL

Products

Position	Product
1	Panel, Control
1	Panel, Control (Biscuit)
1	Panel, Control (White)
1	Panel, Control (Black)
2	Switch, Membrane (Biscuit)
2	Switch, Membrane (Stainless)
2	Switch, Membrane (White)
2	Switch, Membrane (Black)
3	Insulation, Board
4	Insulation, Board Support
5	Spacer, Foam
6	Insulator, Dialectric
7	Microcomputer
8	Screw
9	WP3400832 Whirlpool Screw
