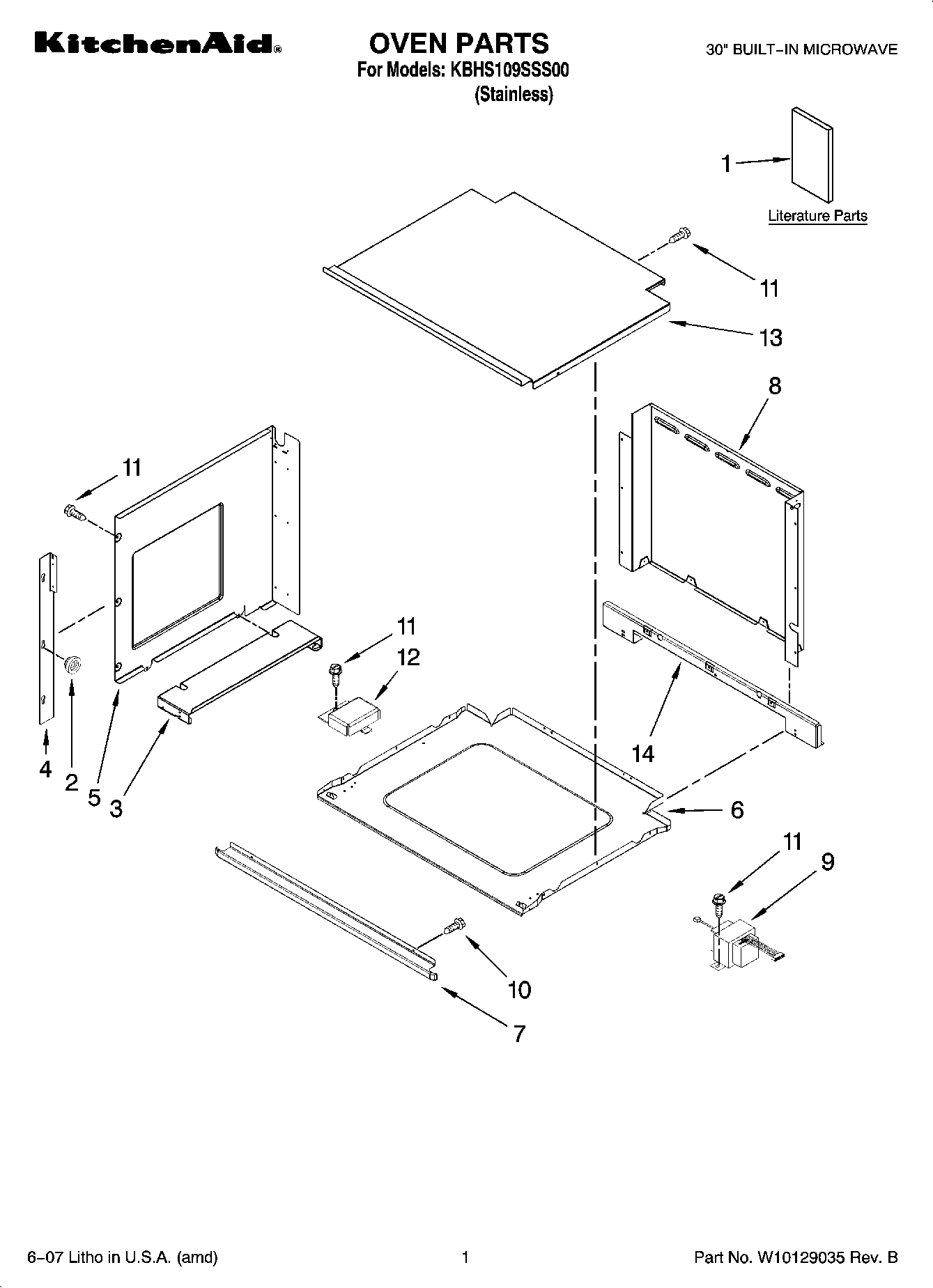

KBHS109SSS00 01 – OVEN PARTS

KBHS109SSS00 01 – OVEN PARTS

Written by

in

KBHS109SSS00 01 – OVEN PARTS

Products

PositionProduct
1Safe Cooking Tips (French)
1Installation Instructions
1Tech Sheet (French)
1Tech Sheet (English)
1Use & Care Guide
1Easy Set Guide (Microwave)
1Safe Cooking Tips
2WP4448444 Whirlpool Grommet
3Support (2)
4Rail, Mounting Side (Left)
4Rail, Mounting Side (Right)
5Side, Combo (Right)
5Side, Combo (Left)
6Base, Chassis
7Trim, Bottom
8Back Chassis Panel
9Transformer, Microwave UI
10WP3400832 Whirlpool Screw
11WP4449809 Whirlpool Screw
128285593 Whirlpool Oven Wire Cover
13Cover, Top Rear
14Back, Control
