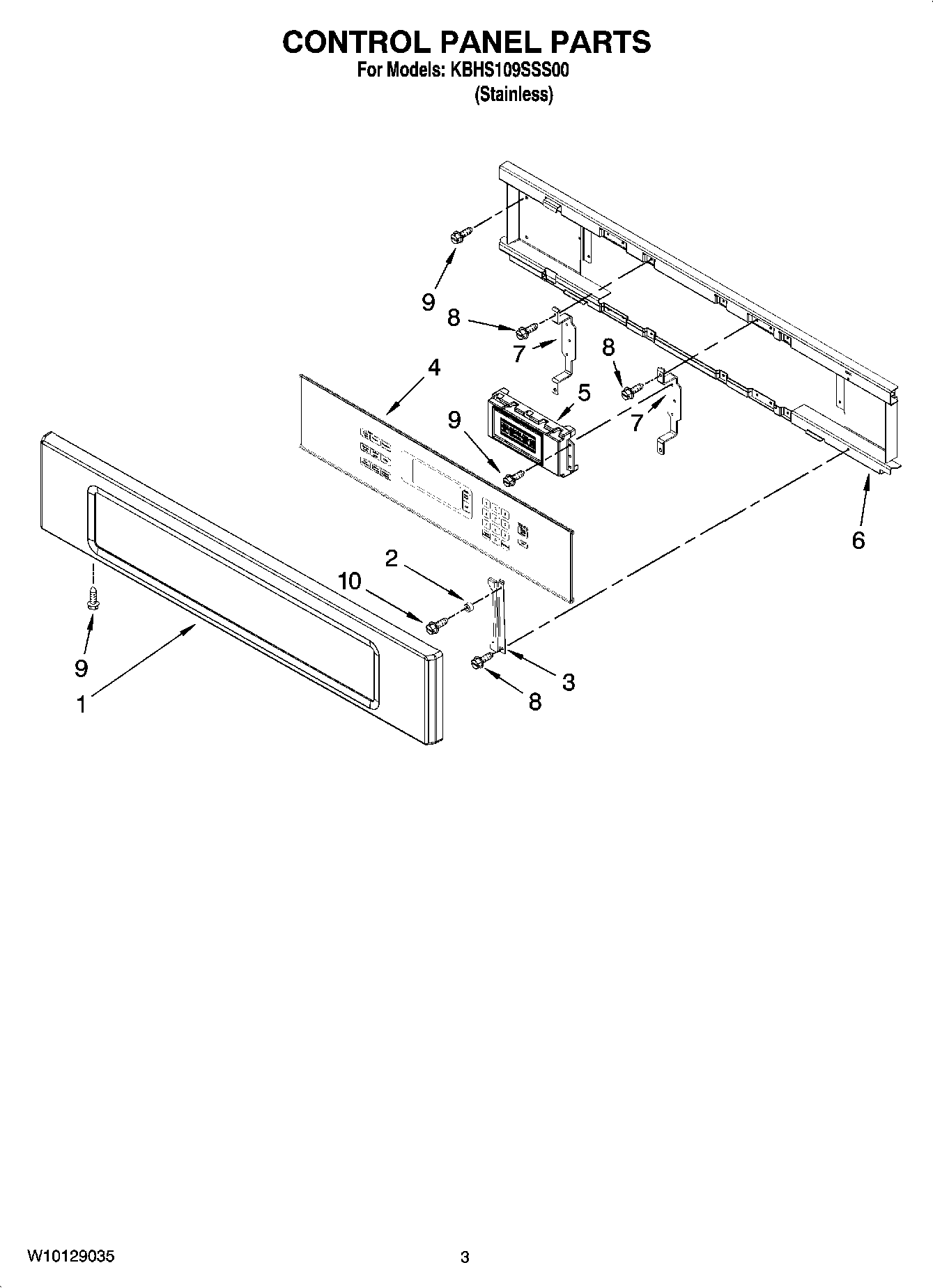

KBHS109SSS00 02 – CONTROL PANEL PARTS

KBHS109SSS00 02 – CONTROL PANEL PARTS

Written by

in

KBHS109SSS00 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Panel, Control
2W10105790 Whirlpool Bumper
3Bracket, Glass Touch
4Keyboard, Glass Touch
5User Inferface
6Backer, Control
7Bracket,Enclosure
8WP4449154 Whirlpool Screw
9WP3400805 Whirlpool Screw Assembly
10WP4449809 Whirlpool Screw
