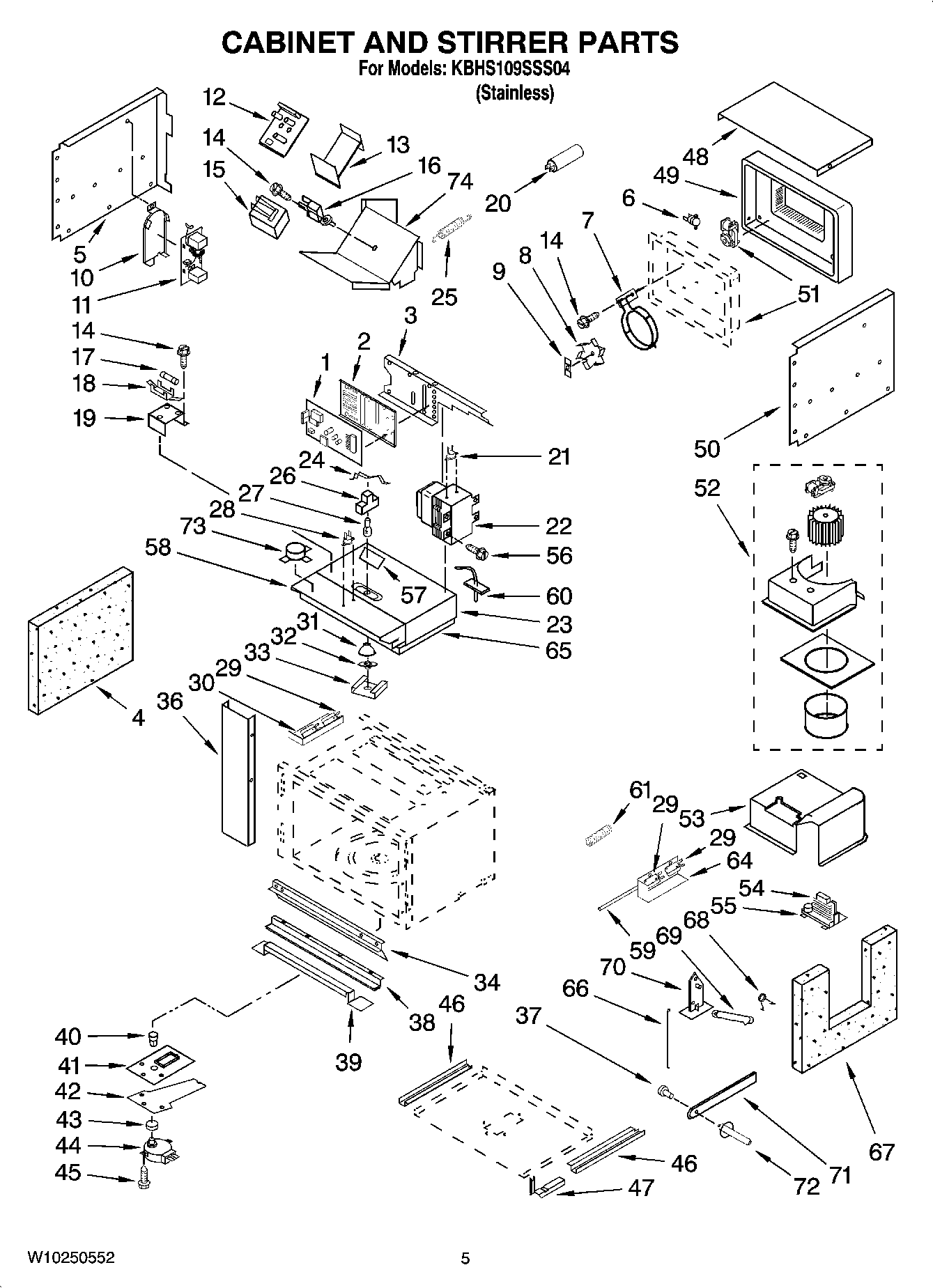

KBHS109SSS04 04 – CABINET AND STIRRER PARTS
Written by
in
KBHS109SSS04 04 – CABINET AND STIRRER PARTS
Products
Position
Product
1
Control, Electric
2
461967750752 Whirlpool Support Bracket
3
Plate, Air
4
W10130901 Whirlpool Insulation
5
Cover, Side Left
6
W11607085 Whirlpool Microwave Thermostat Fix
7
Element, Convection
8
W11512064 Whirlpool Microwave Fan
9
W11724411 Whirlpool Support
10
W10130891 Whirlpool Microwave Holder
11
WPW10120220 Whirlpool Microwave Filter
12
CONTROL, ELECTRIC CONVERTER, WIDE
13
Bracket, Support
15
W11238401 Whirlpool Microwave Transformer
16
461967842541 Whirlpool Microwave Actuator
17
WP4375321 Whirlpool Microwave Fuse
18
W10245194 Whirlpool Microwave Fuse Block
19
Bracket, Support
20
W10549523 Whirlpool Microwave Filter
21
W10852735 Whirlpool Microwave Thermostat
22
W11346197 Whirlpool Magnetron
23
Plate, Air
24
W10465869 Whirlpool Microwave Spring
26
WPW10490593 Whirlpool Microwave Lamp Housing
27
WPW10440740 Whirlpool Microwave Light Bulb
28
Thermostat
29
W10211972 Whirlpool Microwave Switch
31
423107022541 Whirlpool Microwave Reflector
32
W11193483 Whirlpool Microwave Lamp Lens
33
W11440819 Whirlpool Clip
34
Top Vent
36
Trim, Side (Left)
36
Trim, Side (Right)
38
Bracket, Support
39
Bracket, Support
40
W11126044 Whirlpool Drive Shaft
41
461967008471 Whirlpool Microwave Motor Cover
42
Cover
43
Ring, Rubber
44
W10911403 Whirlpool Microwave Turn Motor
45
461967825321 Whirlpool Microwave Screw
46
8205707 Whirlpool Microwave Support
47
W10874474 Whirlpool Door Hinge
48
Cover, Plate
49
Cover, Rear
50
8205680 Whirlpool Microwave Side Cover
51
Convection, Motor Assmebly
52
Blower Assembly
53
Cover, Inverter
54
W10217711 Whirlpool Microwave Inverter
55
W10130906 Whirlpool Holder
56
461967825971 Whirlpool Oven Screw
57
Baffle, Air
58
Plate, Air
59
WPW10120235 Whirlpool Microwave Relief Rod
60
SENSOR
61
W11715912 Whirlpool Spring Assembly
64
WP8205683 Whirlpool Microwave Interlock
65
Insulation
66
W11700292 Whirlpool Spring
67
Insulation
69
WPW10128850 Whirlpool Microwave Arm
70
W11684510 Whirlpool Support
71
W11214480 Whirlpool Microwave Arm
73
W10871220 Whirlpool Microwave Sensor
74
W10130898 Whirlpool Microwave Duct Assembly
←
