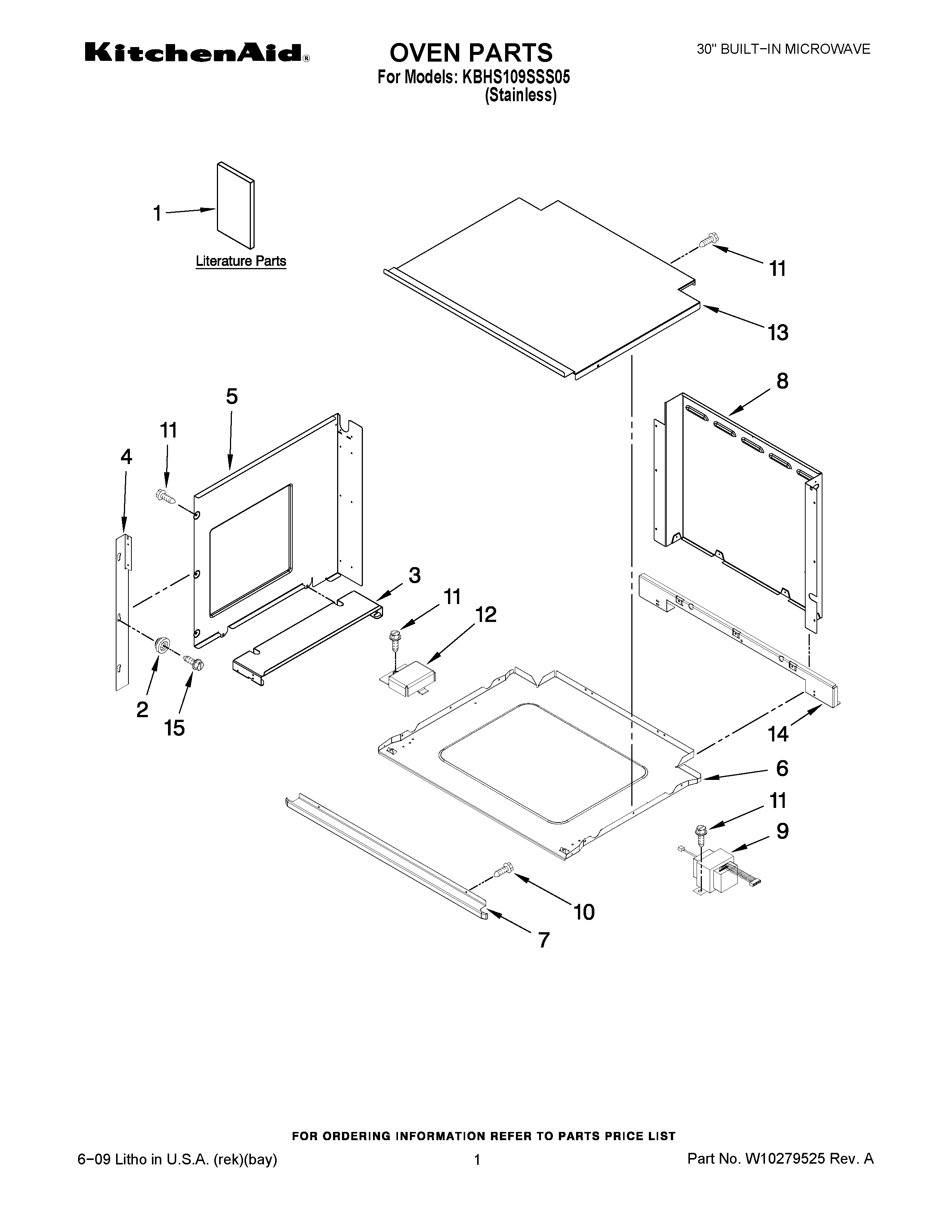

KBHS109SSS05 01 – OVEN PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1	Tech Sheet (English)
1	Tech Sheet (French)
1	Safe Cooking Tips (French)
1	Use & Care Guide (Microwave)
1	Easy Set Guide (Microwave)
1	Installation Instructions
1	SAFER COOKING TIPS (ENGLISH
2	WP4448444 Whirlpool Grommet
3	Support (2)
4	Rail, Mounting Side (Left)
4	Rail, Mounting Side (Right)
5	Side, Combo (Right)
5	Side, Combo (Left)
6	Base, Chassis
7	Trim, Bottom
8	Back Chassis Panel
9	Transformer, Microwave UI
10	WP3400832 Whirlpool Screw
11	WP4449809 Whirlpool Screw
12	8285593 Whirlpool Oven Wire Cover
13	Cover, Top Rear
14	Back, Control
15	W10142289 Whirlpool Air Conditioner Screw
