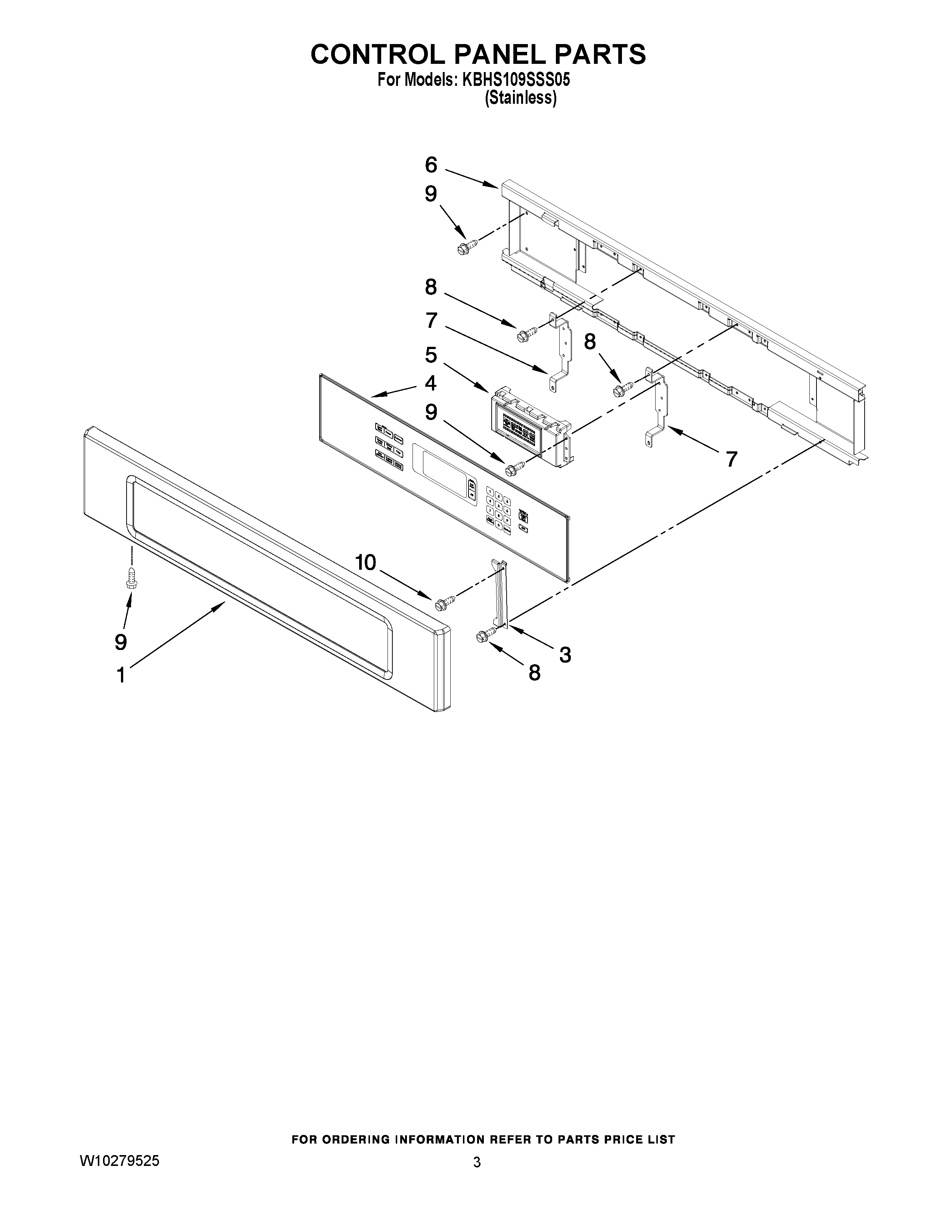

KBHS109SSS05 02 – CONTROL PANEL PARTS

KBHS109SSS05 02 – CONTROL PANEL PARTS

Written by

in

KBHS109SSS05 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Panel, Control
3BRACKET, THERMOSTAT
4Keyboard, Glass Touch
5User Inferface
6Backer, Control
7Bracket,Enclosure
8WP4449154 Whirlpool Screw
9WP3400805 Whirlpool Screw Assembly
10WP4449809 Whirlpool Screw
