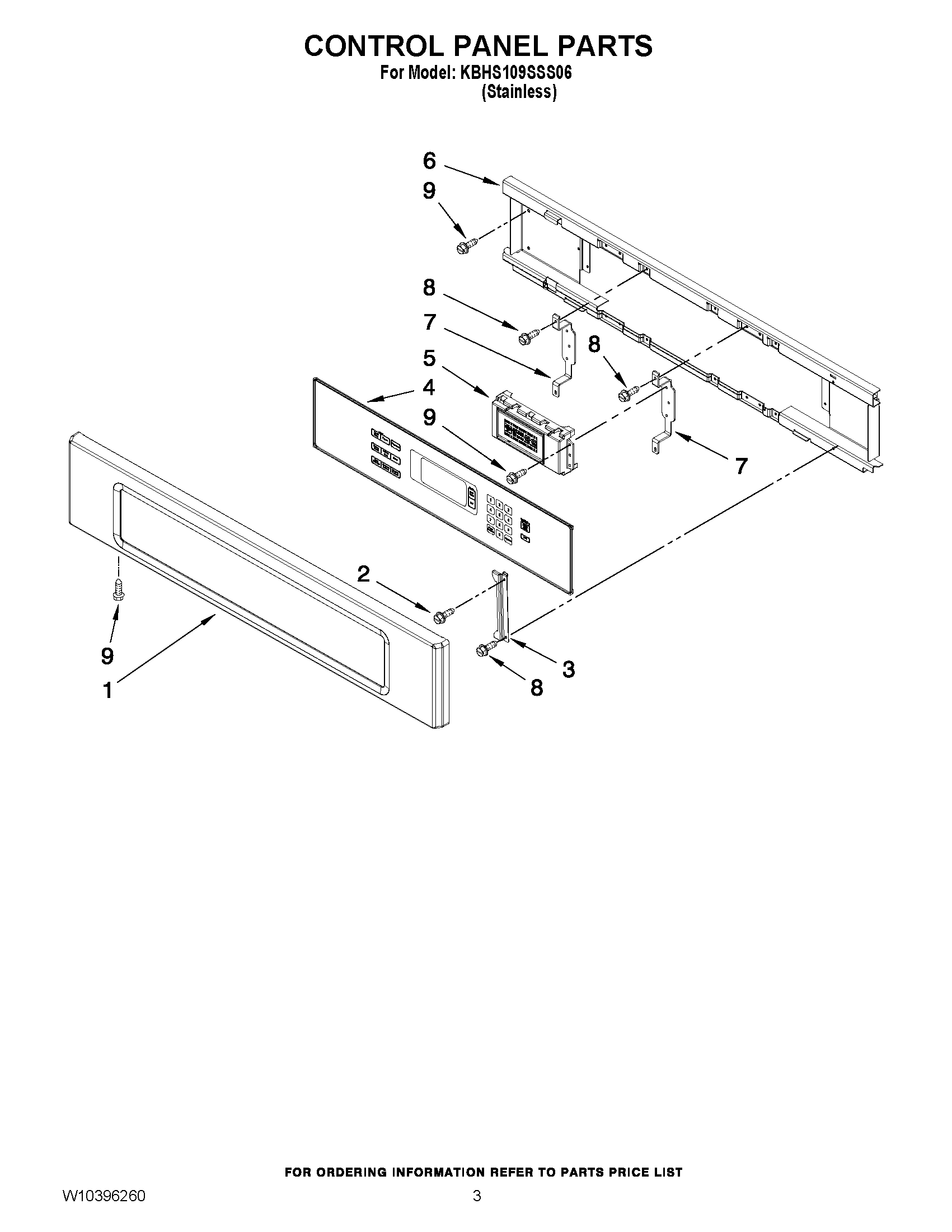

KBHS109SSS06 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Panel, Control
2	WP4449809 Whirlpool Screw
3	BRACKET, THERMOSTAT
4	Keyboard, Glass Touch
5	User Inferface
6	Backer, Control
7	Bracket,Enclosure
8	WP4449154 Whirlpool Screw
9	WP3400805 Whirlpool Screw Assembly
