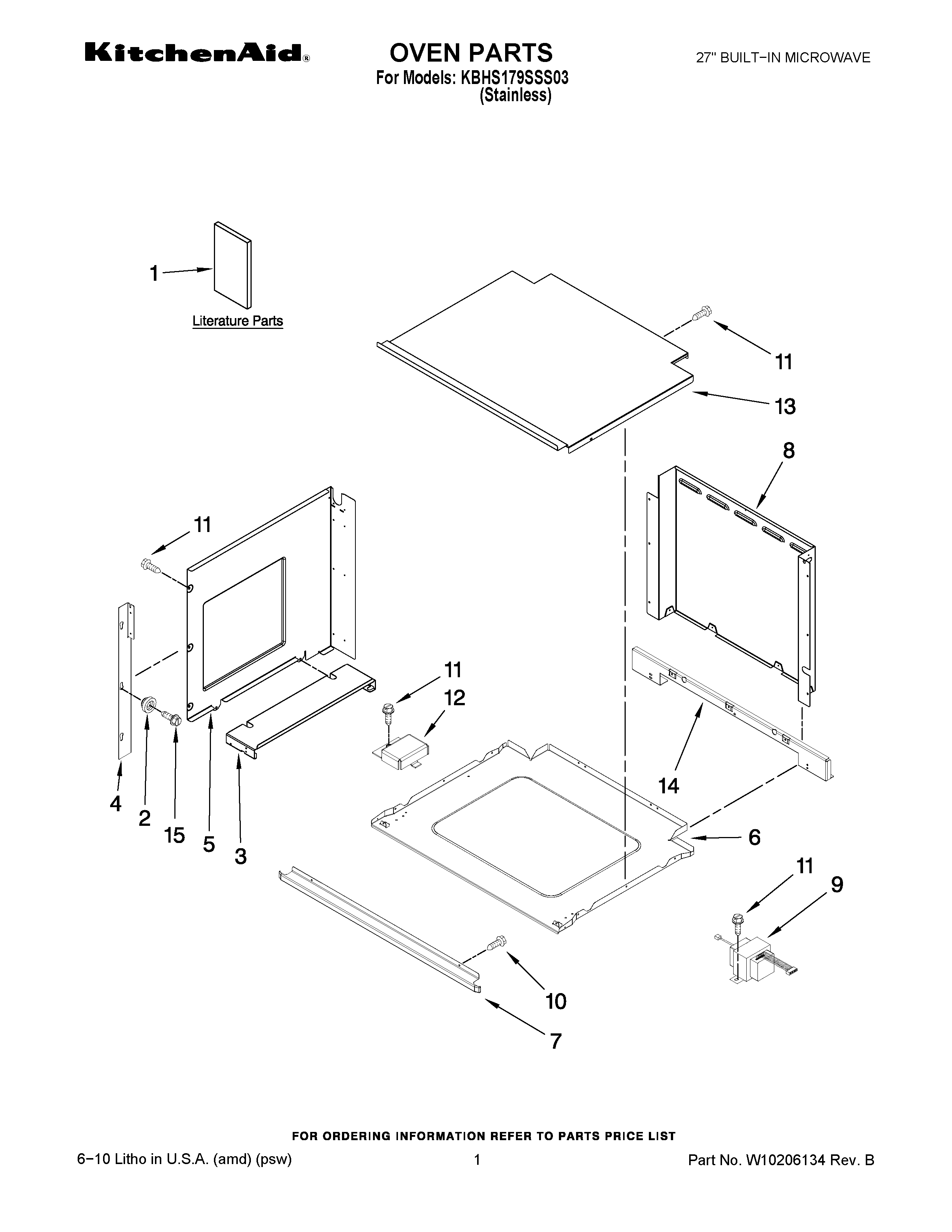

KBHS179SSS03 01 – OVEN PARTS

KBHS179SSS03 01 – OVEN PARTS

Written by

in

KBHS179SSS03 01 – OVEN PARTS

Products

PositionProduct
1Easy Set Guide (Microwave)
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1Use & Care Guide (Microwave)
1Installation Instructions
1Tech Sheet (English)
1Tech Sheet (French)
2WP4448444 Whirlpool Grommet
3Support, Microwave Module
4Rail, Mounting Side (Right)
4Rail, Mounting Side (Left)
5Side, Combo (Left)
5Side, Combo (Right)
6Base, Chassis
7Trim, Bottom
8Back Chassis Panel
9Transformer, Microwave UI
10WP3400832 Whirlpool Screw
11WP4449809 Whirlpool Screw
128285593 Whirlpool Oven Wire Cover
13Cover, Top
14Channel, Rear Combo
15W10142289 Whirlpool Air Conditioner Screw
