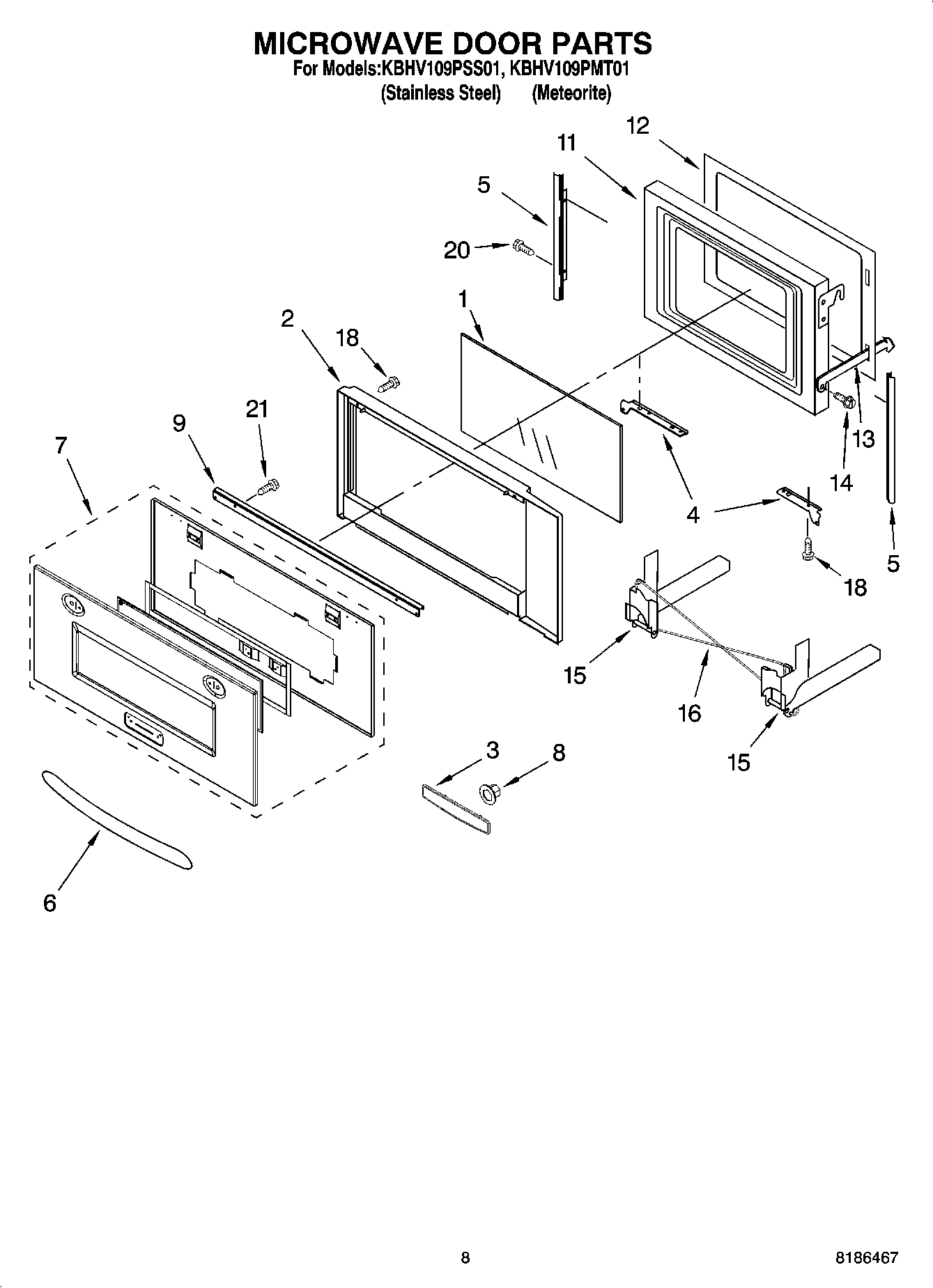

KBHV109PMT01 06 – MICROWAVE DOOR PARTS

Products

PositionProduct
1Glass, Middle
2WP8303556 Whirlpool Microwave Door Frame
3Nameplate
4Bracket, Mounting (Right Side)
4Bracket, Mounting (Left Side)
5Filler, Side (Left Side)
5Filler, Side
6Handle, Door (Stainless Steel)
7Glass, Outer (Meteorite)
7Glass, Outer (Stainless Steel)
8Palnut
9Bracket, Handle
11Plate, Door
12Frame, Inner
13Strap, Door
14Screw
15WP4375324 Whirlpool Microwave Door Hinge
15WP4375323 Whirlpool Microwave Door Hinge
16WP4451009 Whirlpool Microwave Spring
16WP4452396 Whirlpool Microwave Spring
18WP4449809 Whirlpool Screw
20WP4450038 Whirlpool Screw
21screw
