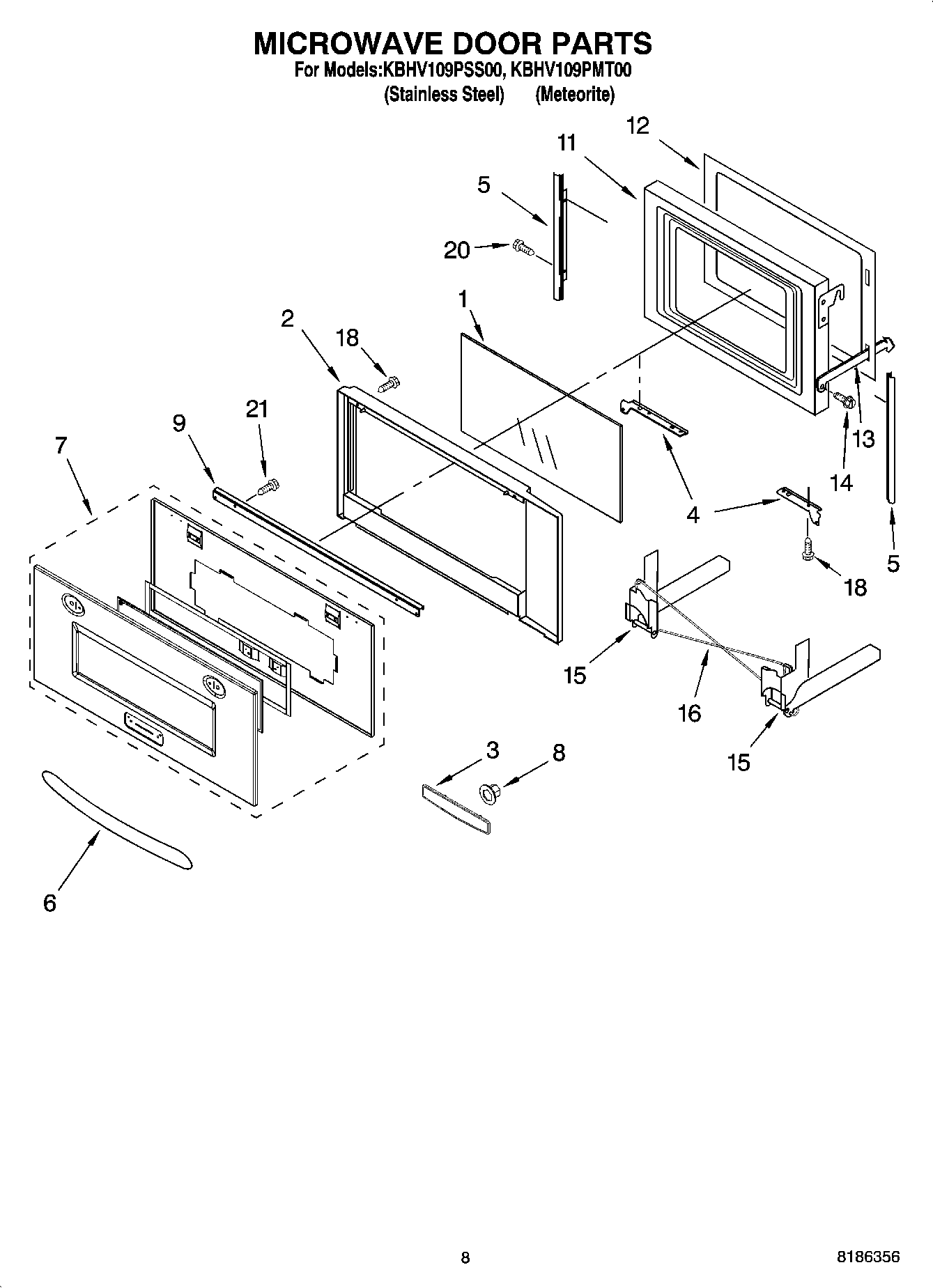

KBHV109PSS00 06 – MICROWAVE DOOR PARTSadmin2025-04-26T11:46:40+00:00KBHV109PSS00 06 – MICROWAVE DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Glass, Middle |
| 2 | WP8303556 Whirlpool Microwave Door Frame |
| 3 | Nameplate |
| 4 | Bracket, Mounting (Right Side) |
| 4 | Bracket, Mounting (Left Side) |
| 5 | Filler, Side (Left Side) |
| 5 | Filler, Side |
| 6 | Handle, Door (Stainless Steel) |
| 7 | Glass, Outer (Meteorite) |
| 7 | Glass, Outer (Stainless Steel) |
| 8 | Palnut |
| 9 | Bracket, Handle |
| 11 | Plate, Door |
| 12 | Frame, Inner |
| 13 | Strap, Door |
| 14 | Screw |
| 15 | WP4375324 Whirlpool Microwave Door Hinge |
| 15 | WP4375323 Whirlpool Microwave Door Hinge |
| 16 | WP4451009 Whirlpool Microwave Spring |
| 16 | WP4452396 Whirlpool Microwave Spring |
| 18 | WP4449809 Whirlpool Screw |
| 20 | WP4450038 Whirlpool Screw |
| 21 | screw |
