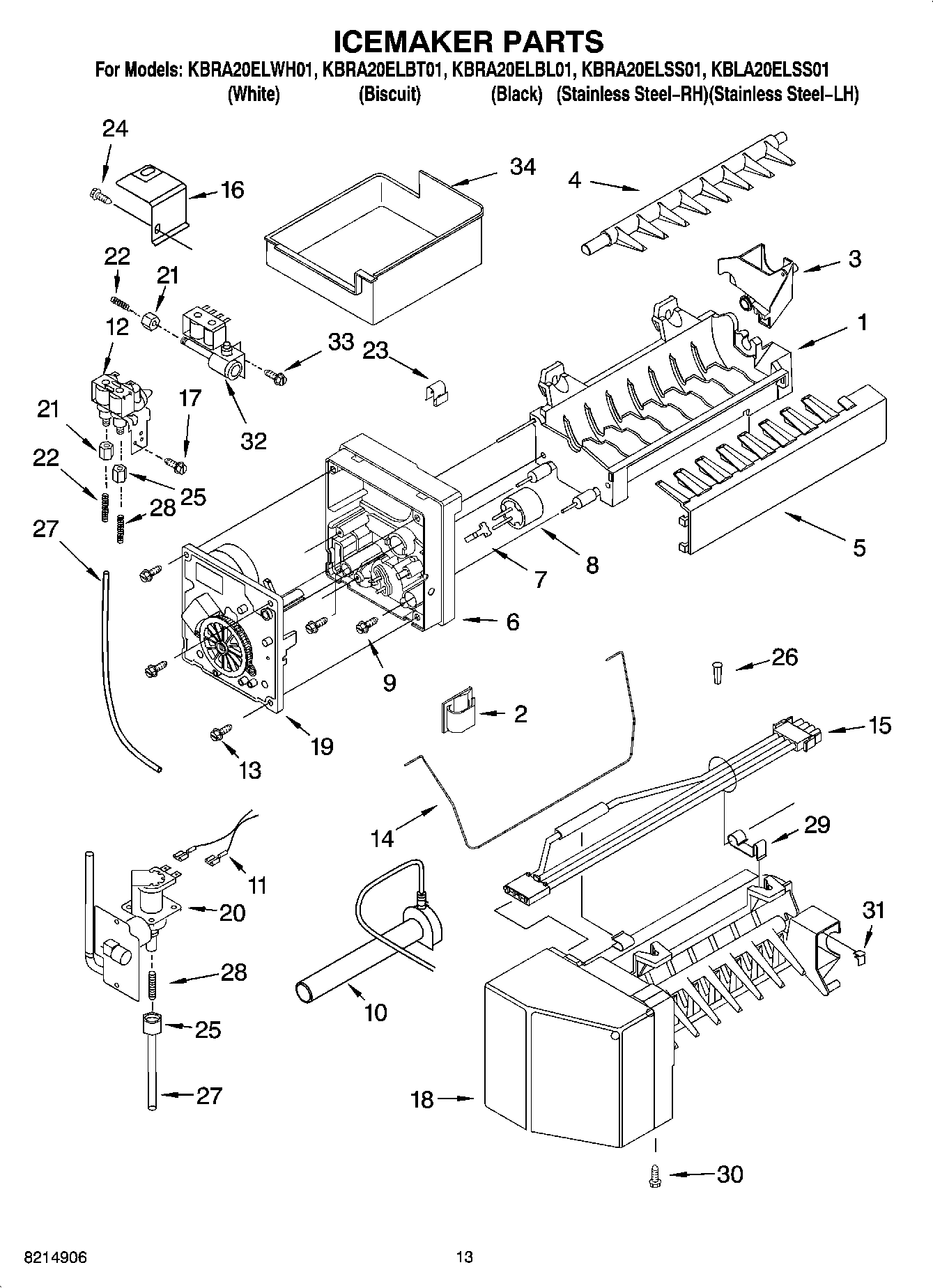

KBLA20ELSS01 07 – ICEMAKER PARTS

Products

Position	Product
1	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
2	WPM0104106 Whirlpool Refrigerator Clip
3	WP628356 Whirlpool Refrigerator Fill Cup
4	WP627843 Whirlpool Refrigerator Ejector Arm
5	WP2182124 Whirlpool Refrigerator Stripper Arm
6	WP2195914 Whirlpool Refrigerator Ice Maker Housing
7	WP2315522 Whirlpool Refrigerator Clip
8	WP627985 Whirlpool Icemaker Cycling Thermostat
9	WP681249 Whirlpool Screw Assembly
10	W11176463 Whirlpool Refrigerator Water Tube
11	WPL 8170413
12	12002193 Whirlpool Refrigerator Water Valve Kit
13	WPL 4344397
14	ARM-SHUT
15	WPD7813010 Whirlpool Refrigerator Wire Harness
16	WP2256087 Whirlpool Refrigerator Bracket
17	WPL 4344167
18	WPW10289690 Whirlpool Ice Maker Cover
19	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
20	WP67003753 Whirlpool Refrigerator Inlet Valve
21	Nut, Sleeve
22	INSERT
23	WP628379 Whirlpool Refrigerator Clip
24	67006425 Whirlpool Refrigerator Screw
25	WP627018 Whirlpool Refrigerator Nut
26	WPA3223101 Whirlpool Refrigerator Insert PL
27	W10823511 Whirlpool Refrigerator Water Tube
28	Spring
29	WPL 4343984
30	WP98165 Whirlpool Screw
31	WPM0114003 Whirlpool Microwave Speed Clip Clamp
32	WP12544002 Whirlpool Refrigerator Inlet Valve
33	WP489128 Whirlpool Refrigerator Screw
34	WP67001255 Whirlpool Ice Bucket
100	Following Parts Not Illustrated
100	WP488878 Whirlpool Refrigerator Tube Clamp
100	W11033771 Whirlpool Refrigerator Coupling
100	4396418 Whirlpool Ice Maker
100	WPL 4344549
100	WPL 4344316
100	Note: The Following Parts Are Components of Accessory Bag
