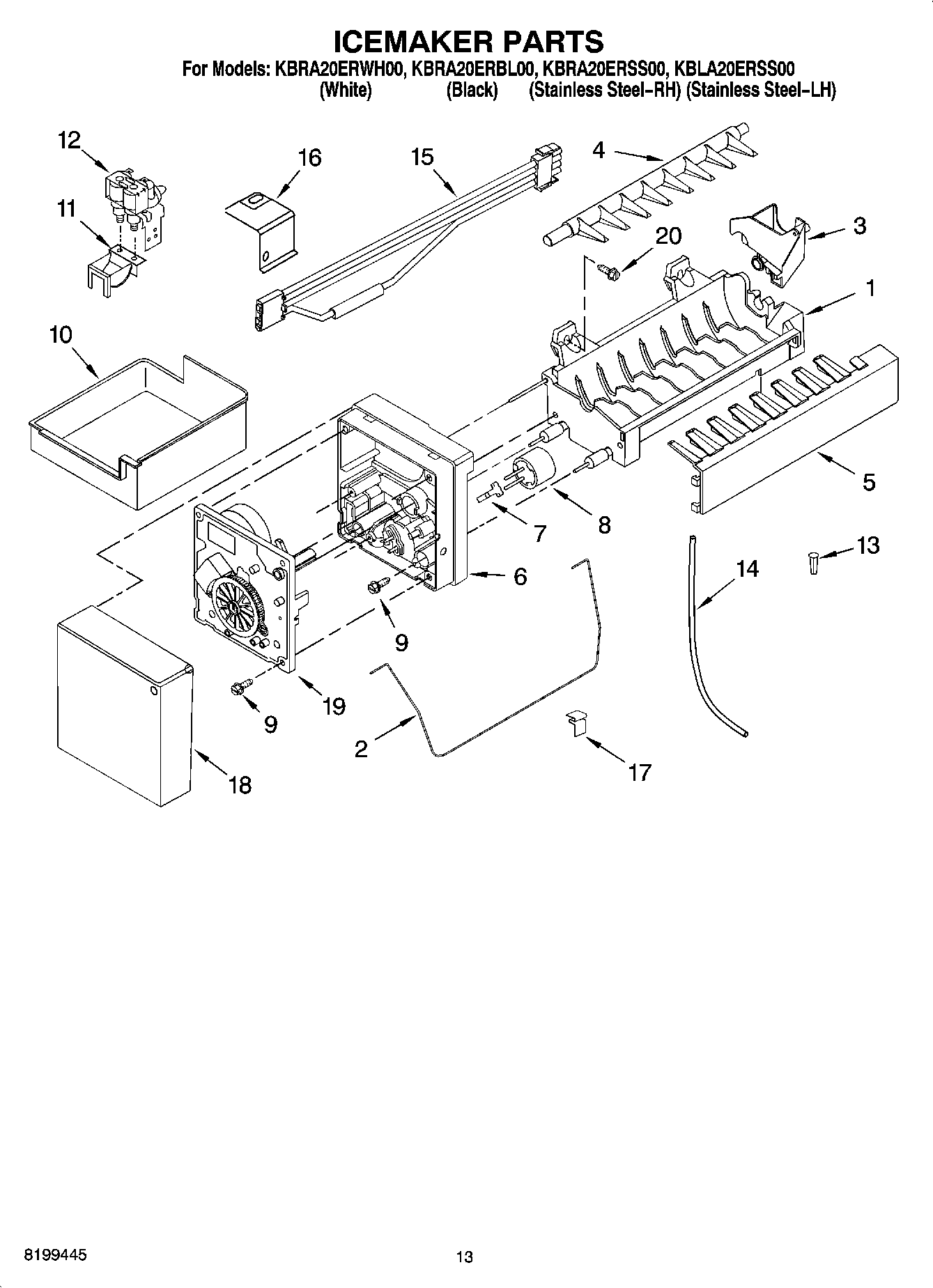

KBLA20ERSS00 08 – ICEMAKER PARTS, OPTIONAL PARTS

KBLA20ERSS00 08 – ICEMAKER PARTS, OPTIONAL PARTS

Written by

in

KBLA20ERSS00 08 – ICEMAKER PARTS, OPTIONAL PARTS

Products

PositionProduct
350930 Whirlpool White Spray Paint
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
Torx Key
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
WPL 876029
4396418 Whirlpool Ice Maker
72032 Whirlpool Touch Up Paint Black
876370 Whirlpool Refrigerator Insulation
833938 Whirlpool Refrigerator Terminal
WPL ARI153510A
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL ARI153513A
WPL ARI153512A
WPL ARI153511A
606755 Whirlpool Refrigerator Bag
WPL ARI153509A
WPL ARI153508A
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
511873 Whirlpool Refrigerator Paint
285006 Whirlpool Spray
1Mold & Heater Assembly (Not Available — Order 8170937)
2ARM-SHUT
3WP628356 Whirlpool Refrigerator Fill Cup
4WP627843 Whirlpool Refrigerator Ejector Arm
5WP2182124 Whirlpool Refrigerator Stripper Arm
6WP2195914 Whirlpool Refrigerator Ice Maker Housing
7WP2315522 Whirlpool Refrigerator Clip
8Thermostat (Not Available — Order 8170937)
9WP681249 Whirlpool Screw Assembly
10WP67001255 Whirlpool Ice Bucket
1112831101 Whirlpool Refrigerator Tube Clamp
12WP67005154 Whirlpool Water Valve
13WPA3223101 Whirlpool Refrigerator Insert PL
14W10823511 Whirlpool Refrigerator Water Tube
15WPD7813010 Whirlpool Refrigerator Wire Harness
16WP2256087 Whirlpool Refrigerator Bracket
17WPM0114003 Whirlpool Microwave Speed Clip Clamp
18WPW10289690 Whirlpool Ice Maker Cover
19Module Assembly (Not Available — Order 8170937)
20WP98165 Whirlpool Screw
100FOLLOWING PARTS NOT ILLUSTRATED
100W11033771 Whirlpool Refrigerator Coupling
100Screw, Bracket
100Retainer, Tube
100681390 Whirlpool Refrigerator Screw
100D7824706Q Whirlpool Refrigerator Ice Maker Assembly
