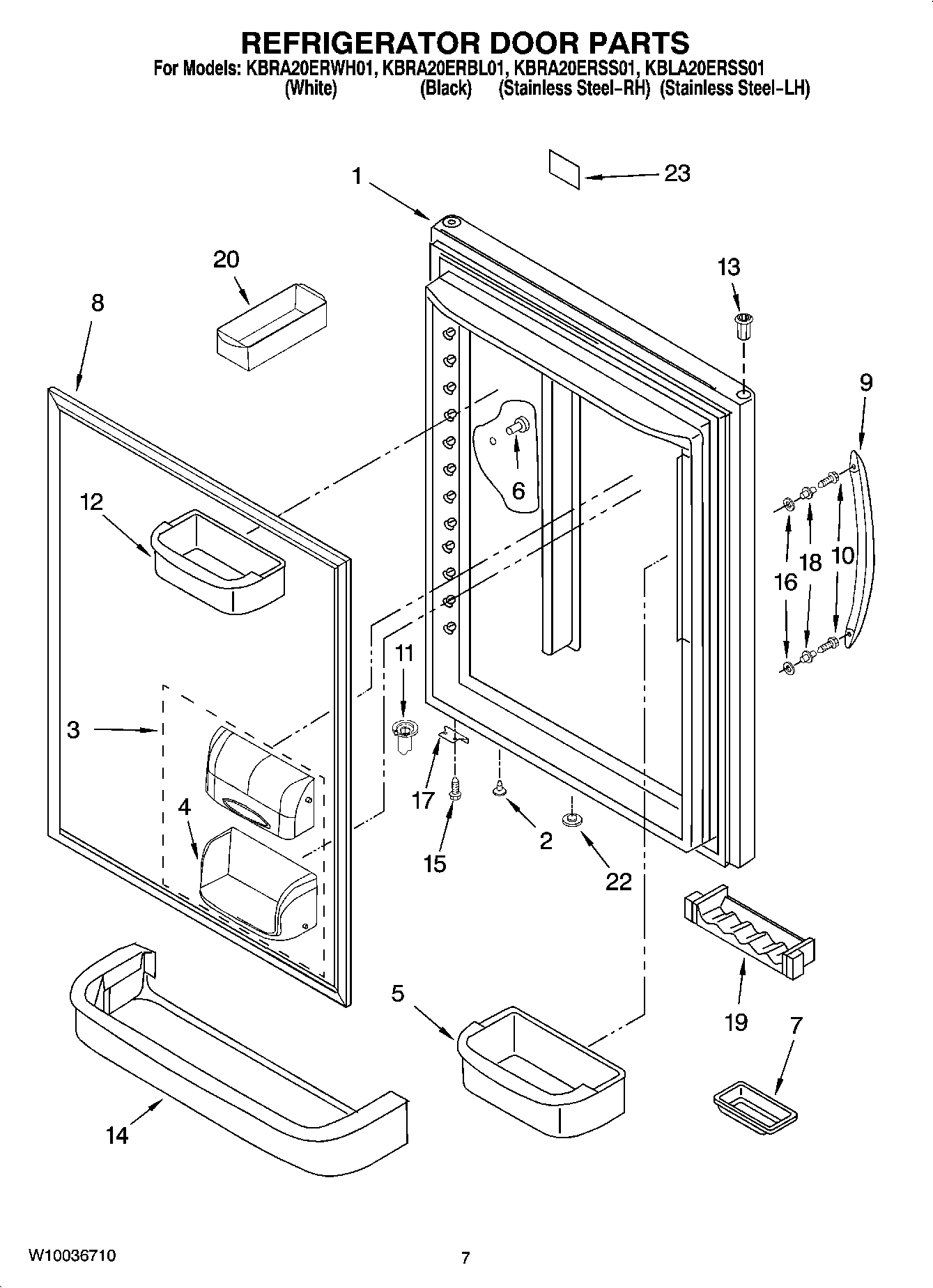

KBLA20ERSS01 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	12658537SQ Whirlpool Refrigerator DOR-FIP SS
1	Refrigerator Door (Includes Insulation) (Black)
1	Refrigerator Door (Includes Insulation) (White)
1	Refrigerator Door (Includes Insulation) (Stainless- RH-Mdl)
2	10712401 Whirlpool Refrigerator Vent Plug (White)
2	67004838 Whirlpool Refrigerator Button Vent Plug
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	Bin, Shelf (3) (Medium)
6	WP67001130 Whirlpool Refrigerator White Button Plug
6	WP12246608 Whirlpool Refrigerator Button
7	WPL 4344296
8	W10443317 Whirlpool Refrigerator FIP Gasket
8	W10849442 Whirlpool Refrigerator FIP Gasket
9	Door Handle (Stainless)
9	Door Handle (Black)
9	Door Handle (White)
10	WP3387230 Whirlpool Screw
11	WP67003639 Whirlpool Refrigerator Closer
11	WP67003638 Whirlpool Closing Cam
12	Bin, Shelf (1) (Small)
13	67004978 Whirlpool Refrigerator Black Door Bushing
13	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
14	Door Shelf
15	WP98165 Whirlpool Screw
16	Washer
17	W11708403 Whirlpool Door Stop
17	12968202W Whirlpool Refrigerator Door Stop
18	Stud, Handle
19	WP67005626 Whirlpool Refrigerator Can Caddy
20	W10136387A Whirlpool Refrigerator Egg Container
22	Plug, Button
22	Plug, Button (White)
23	Nameplate (White)
23	Nameplate (Black)
