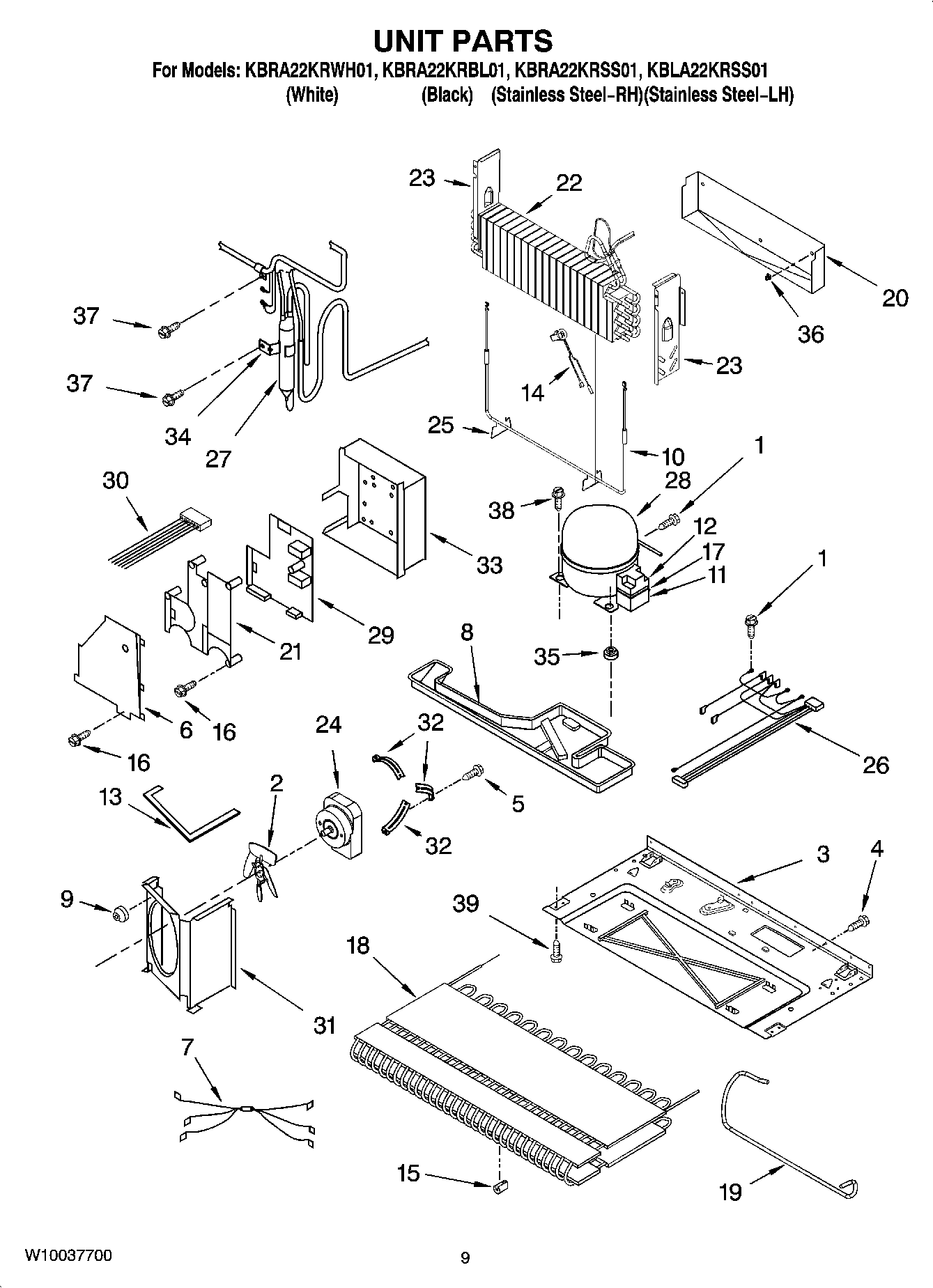

KBLA22KRSS01 06 – UNIT PARTS

KBLA22KRSS01 06 – UNIT PARTS

Written by

in

KBLA22KRSS01 06 – UNIT PARTS

Products

PositionProduct
112992301 Whirlpool Refrigerator Screw
2W10156818 Whirlpool Refrigerator Fan Blade
3Base
4WPL 4344167
5WP67004954 Whirlpool Refrigerator Screw
667005421 Whirlpool Hoist Cover
7Harness, Evap Heater
8Drain Pan
9Grommet (3)
10WP67001794 Whirlpool Refrigerator Defrost Heater
12W10613606 Whirlpool Refrigerator Start Device Relay Overload
13WP854334 Whirlpool Air Conditioner Sealing Strip
14WP67003426 Whirlpool Refrigerator Thermostat
1567005680 Whirlpool Refrigerator Condenser Grommet
16Screw
17Clip
18WP67006132 Whirlpool Refrigerator Condenser
19Tube, Drain
20WPW10292802 Whirlpool Refrigerator Drip Tray
21Spacer
2212001919 Whirlpool Refrigerator Evaporator Replacement Kit
23Dam (Right Side)
23Dam (Left Side)
24W11613295 Whirlpool Condenser Motor
25W11673433 Whirlpool Clip
26Harness, Unit
27W10843121 Whirlpool Refrigerator Tube
28W10309989 Whirlpool Refrigerator Compressor
29Control Board
30Harness, Wiring
31SHROUD
32WP67004953 Whirlpool Refrigerator Bracket
33Box, Control
34Clip, Drier
35WPL 4343845
36Clip, Evap Motor
37W10709801 Whirlpool Refrigerator Screw
3812846902 Whirlpool Refrigerator Screw
39Following Parts Not Illustrated and Optional Parts Not Included
39876764 Whirlpool Refrigerator Primary Valve
39978026 Whirlpool Refrigerator Primary Valve
39978027 Whirlpool Refrigerator Primary Valve
39WPL 4344292
39978030 Whirlpool Refrigerator Valve
39WP978025 Whirlpool Refrigerator Valve
39VALVE, ACCESS (1/2“)
39VALVE, ACCESS (5/8“)
39REFRIGERANT CHARGE 5.00 Ozs. (R-134A)
