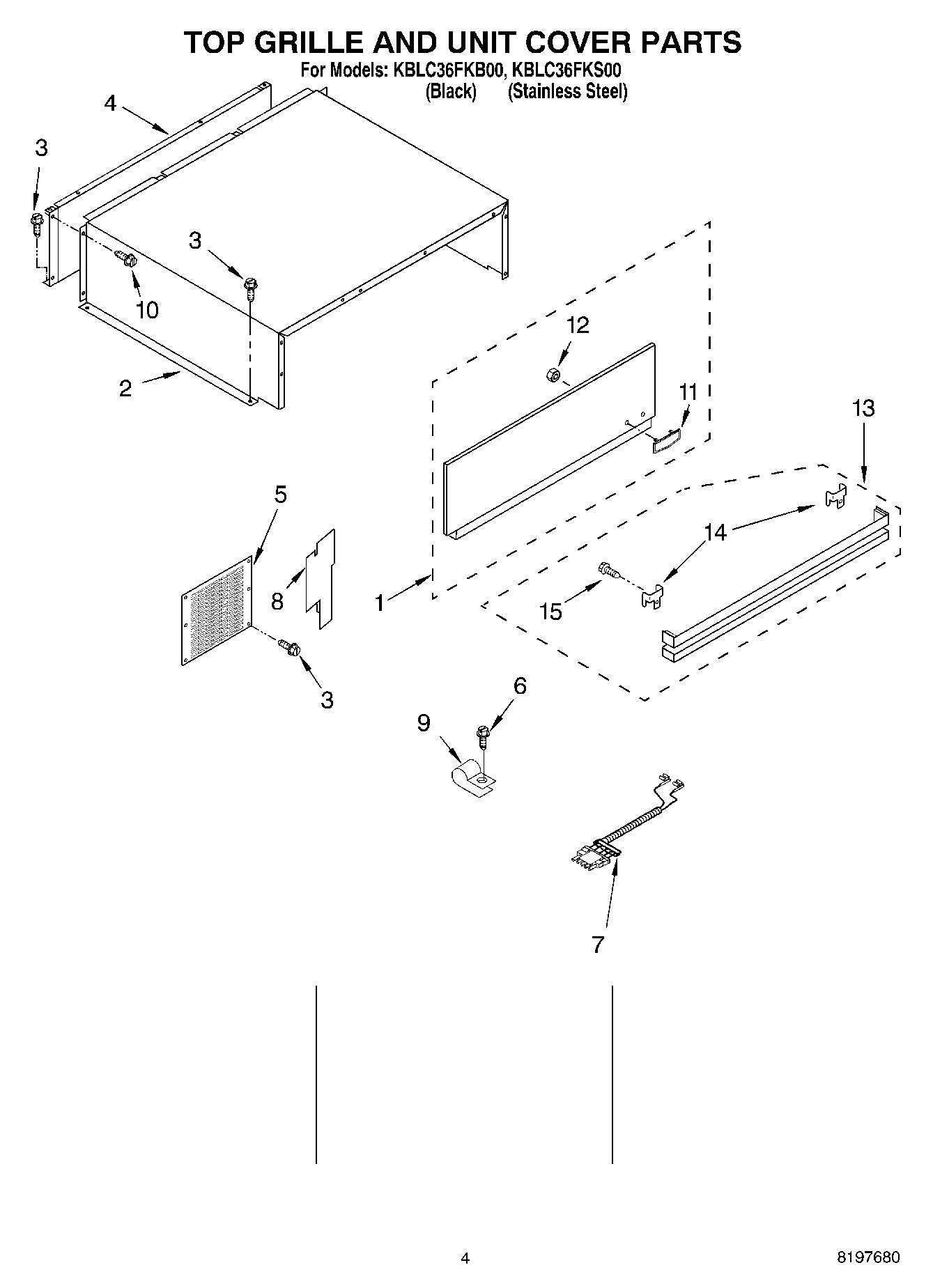

KBLC36FKB00 03 – TOP GRILLE AND UNIT COVER

Products

PositionProduct
1Top Grille Assembly (Black)
1Top Grille Assembly (Stainless Steel)
2Cover, Unit
3WP489069 Whirlpool Compactor Screw
42256466 Whirlpool Refrigerator Unit Cover
5Guard, Wiring
6WP965173 Whirlpool Dishwasher Screw
7Wire Assembly
8Baffle-Air, Condenser
9489348 Whirlpool Refrigerator Tube Clamp
10SCREW
11Nameplate (Black)
12WP2004333 Whirlpool Refrigerator Nut
13Louver, Vent (Black)
13Louver, Vent (Stainless Steel)
14Louver, Bracket
15303776 Whirlpool Dishwasher Screw
