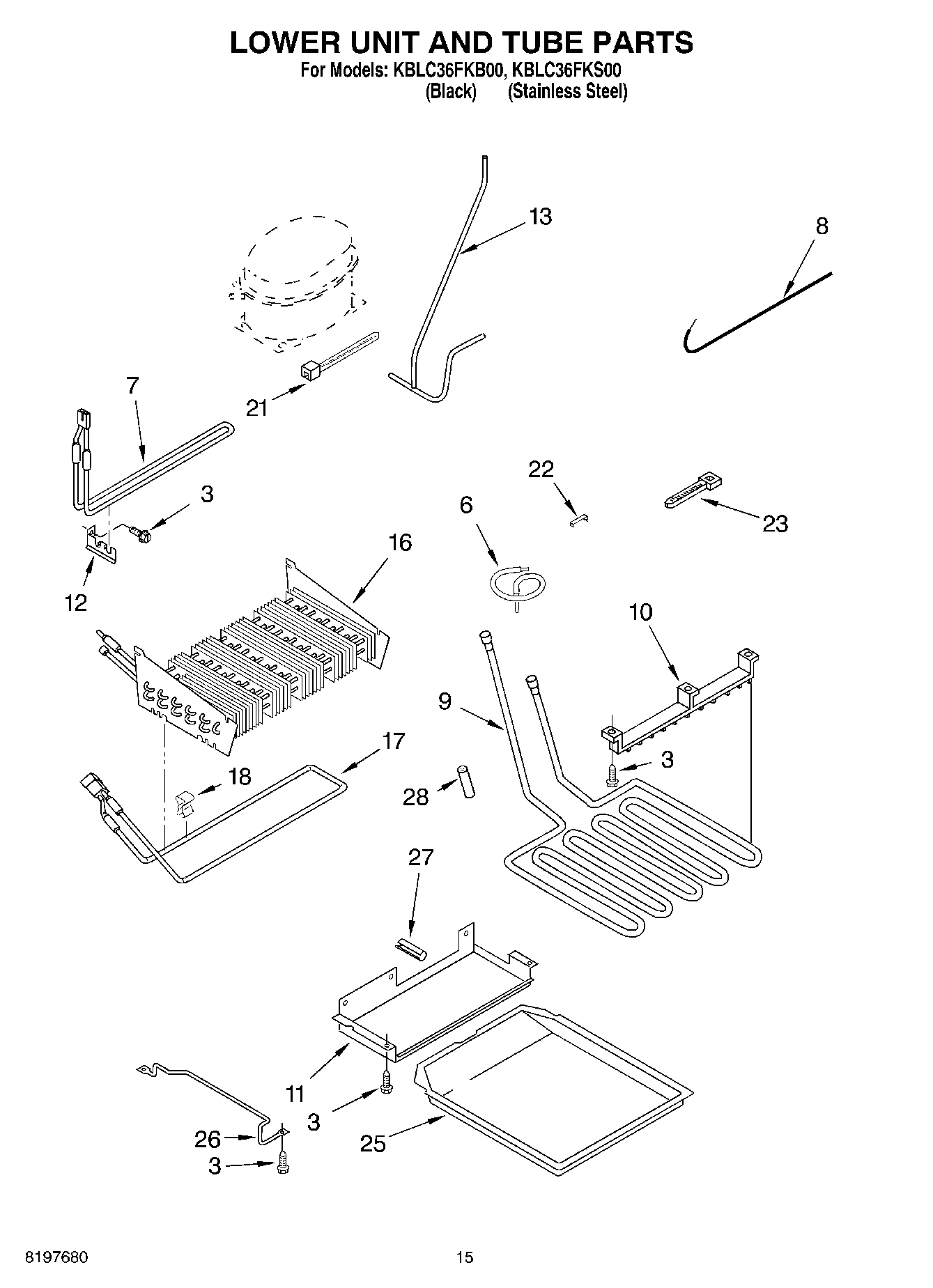

KBLC36FKB00 09 – LOWER UNIT AND TUBEadmin2025-04-26T11:48:12+00:00KBLC36FKB00 09 – LOWER UNIT AND TUBE
Products
| Position | Product |
|---|
| 3 | W11624204 Whirlpool Screw |
| 6 | Suction Tube |
| 7 | Heater, Defrost (Rear) |
| 8 | Tube, Connect (Drier) |
| 9 | Heater, Drain Pan |
| 10 | Hanger, Heater |
| 11 | Shield, Drain Pan |
| 12 | Support, Heater |
| 13 | Tube, Discharge |
| 16 | Evaporator |
| 17 | Heater, Defrost (Front) |
| 18 | Clamp, Heater (2) |
| 21 | WPW10339879 Whirlpool Wire Tie |
| 22 | W10169509 Whirlpool Refrigerator Clip |
| 23 | Strap |
| 25 | WP2001264 Whirlpool Refrigerator Drip Pan |
| 26 | Bracket, Drain Pan (Left) |
| 26 | Bracket, Drain Pan (Right) |
| 27 | WP2158826 Whirlpool Refrigerator Dampener |
| 28 | 2215648 Whirlpool Refrigerator Dampener |
