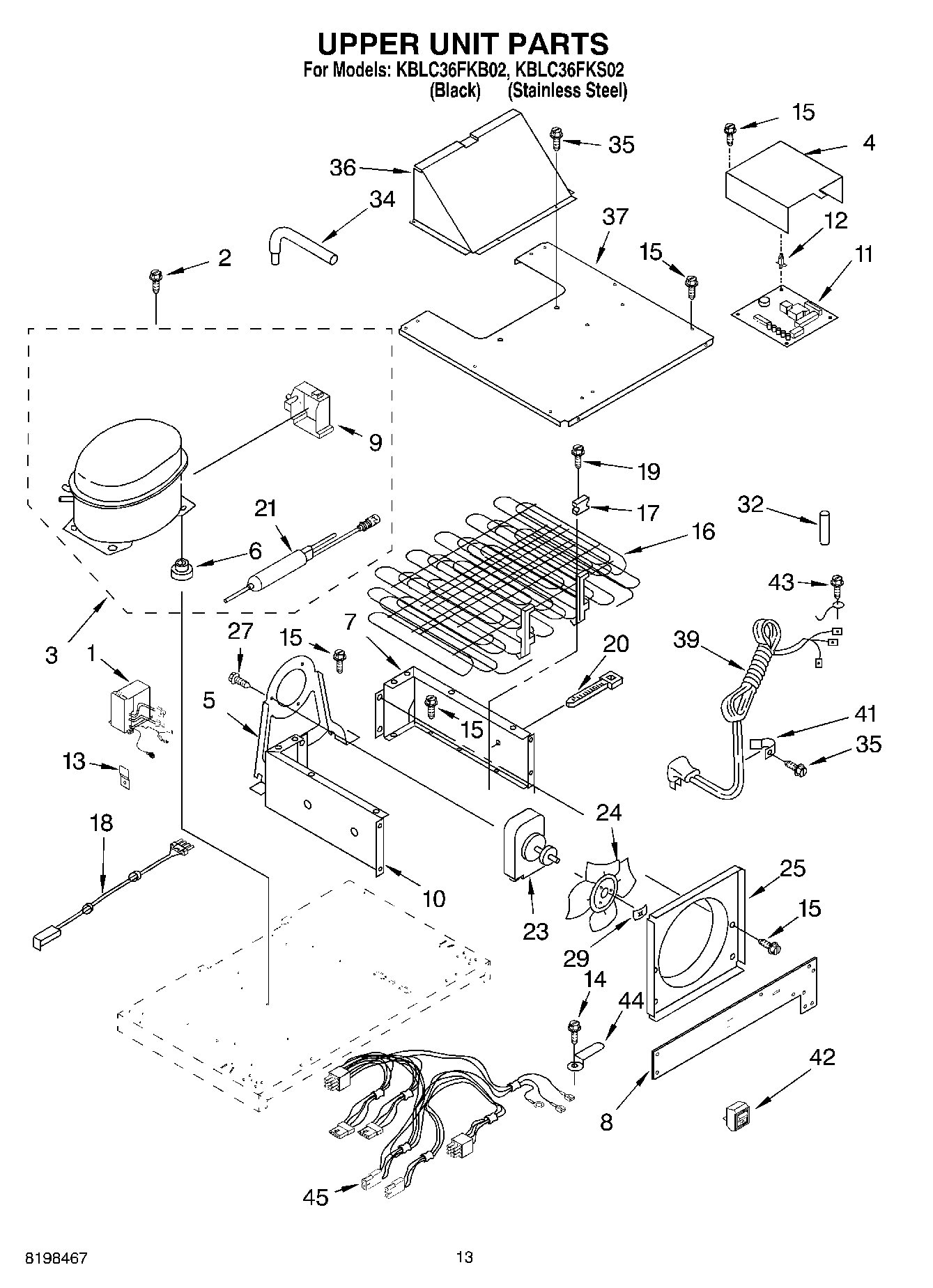

KBLC36FKB02 08 – UPPER UNIT PARTS

KBLC36FKB02 08 – UPPER UNIT PARTS

Written by

in

KBLC36FKB02 08 – UPPER UNIT PARTS

Products

PositionProduct
1W10629033 Whirlpool Refrigerator Inverter Control Box
3W10841139 Whirlpool Refrigerator Compressor
4Housing, Control Board
5Bracket, Fan Motor
6876811 Whirlpool Grommet
7Shroud, Condenser (Right)
8Panel, Condenser Front
92215676 Whirlpool Refrigerator Terminal Cover
10Shroud, Condenser (Left)
11Control Board
12WP2203075 Whirlpool Refrigerator Spacer
132256328 Whirlpool Bracket Assembly
14Screw
15WP489069 Whirlpool Compactor Screw
16Condenser
17Grommet (4)
18Wire, Jumper
19WP488163 Whirlpool Refrigerator Screw
20WPW10339879 Whirlpool Wire Tie
21W10843121 Whirlpool Refrigerator Tube
23MOTOR-COND/INCL BLADE&BRKT
24Blade, Fan
25Orifice, Fan
278281160 Whirlpool Screw
29WP486692 Whirlpool Refrigerator Nut
32Sleeve, Condenser
34W10528578 Whirlpool Refrigerator Tube
35W11624204 Whirlpool Screw
36Cover, Fan
37Cover, Condenser
39Service Cord
41549193 Whirlpool Refrigerator Power Clamp
42WP2266802 Whirlpool Refrigerator Switch
43303776 Whirlpool Dishwasher Screw
44Clip, Cord Plug
45Following Parts Not Illustrated and Optional Parts Not Included
45VALVE, ACCESS (5/8“)
45VALVE, ACCESS (1/2“)
45Wiring Harness, Unit Compartment
45978030 Whirlpool Refrigerator Valve
45WP978025 Whirlpool Refrigerator Valve
45876764 Whirlpool Refrigerator Primary Valve
45978026 Whirlpool Refrigerator Primary Valve
45978027 Whirlpool Refrigerator Primary Valve
45REFRIGERANT CHARGE 6.75 oz. (R-134A)
