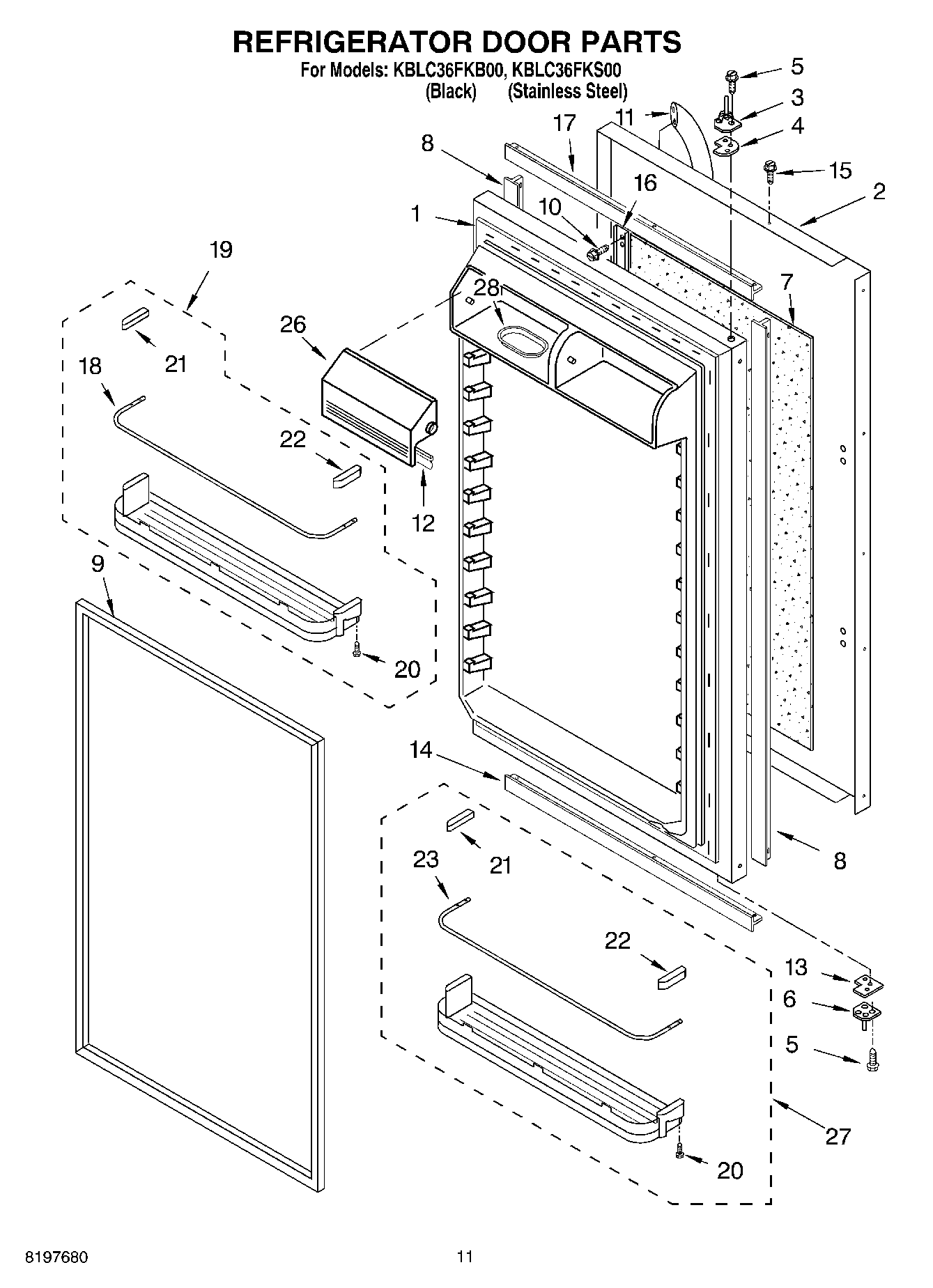

KBLC36FKS00 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item 9)
2	Skin, Door (Stainless Steel)
2	Skin, Door (Black)
3	Hinge Assembly, Top
4	Spacer-Hinge, Top
5	W11474472 Whirlpool Screw
6	Hinge Assembly, Bottom
7	Filler, Foam
8	Spacer, Door Edge – Side (2)
9	Door Gasket, Magnetic
10	WP308544 Whirlpool Screw
11	Handle, Door (Stainless Steel)
11	Handle, Door (Black)
12	Gasket (2)
13	Spacer-Hinge, Bottom
14	Spacer, Door Edge – Bottom
15	WP8281250 Whirlpool Refrigerator Screw
15	W10851443 Whirlpool Refrigerator Screw
16	Plate, Handle
17	Spacer, Door Edge – Top
18	Tube, Door Shelf
19	Shelf, Door (2)
20	WP681249 Whirlpool Screw Assembly
21	End Cap, Left
22	End Cap, Right
23	Tube, Door Shelf (Gallon)
26	Door, Utility Bin (2) (Includes Item 12)
27	Door Shelf, Gallon
28	Butter Tray
