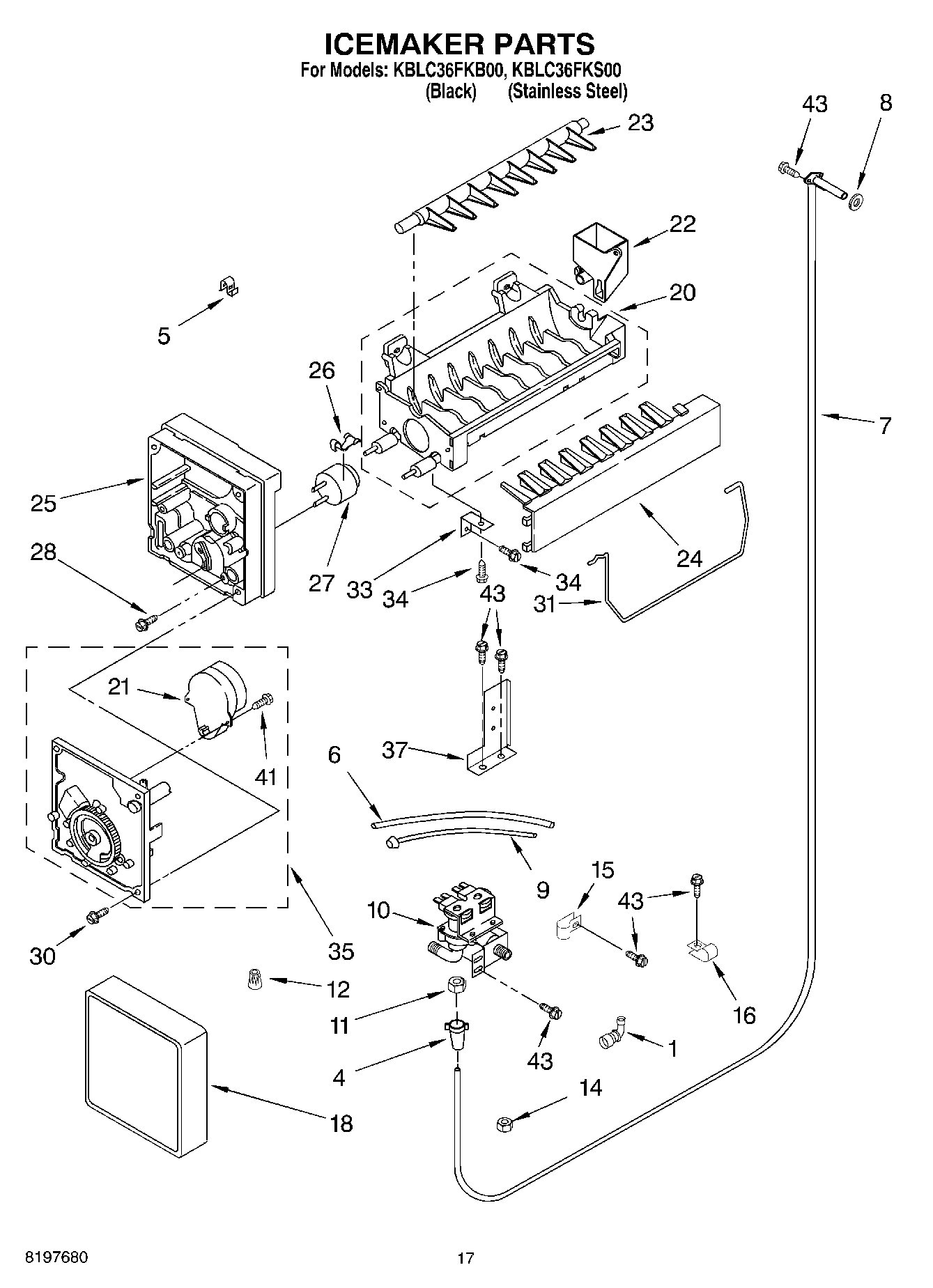

KBLC36FKS00 10 – ICEMAKER

KBLC36FKS00 10 – ICEMAKER

Written by

in

KBLC36FKS00 10 – ICEMAKER

Products

PositionProduct
1Tube, Valve
44387491 Whirlpool Refrigerator Insert
5WP628379 Whirlpool Refrigerator Clip
6Tube, Filter Inlet
7Water Inlet Tube Assembly
8WP1106508 Whirlpool Refrigerator Gasket
9Tube, Filter Outlet
10Valve, Solenoid
11WP627018 Whirlpool Refrigerator Nut
12Wire Connector
14Plug, Water Valve
15489348 Whirlpool Refrigerator Tube Clamp
16488946 Whirlpool Air Conditioner Clamp
18WPW10289690 Whirlpool Ice Maker Cover
20WP542638 Whirlpool Refrigerator Grease
20WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
22WP628356 Whirlpool Refrigerator Fill Cup
23WP627843 Whirlpool Refrigerator Ejector Arm
24WP2182124 Whirlpool Refrigerator Stripper Arm
25WP2195914 Whirlpool Refrigerator Ice Maker Housing
26WP2315522 Whirlpool Refrigerator Clip
27WP627985 Whirlpool Icemaker Cycling Thermostat
27CEMENT, ALUMILASTIC (1 1/4 OZ.)
288533917 Whirlpool Refrigerator Screw
30WP681249 Whirlpool Screw Assembly
31Shut Off Arm
33WP2256087 Whirlpool Refrigerator Bracket
34WP489478 Whirlpool Refrigerator Screw
37Water Valve Mounting Bracket
41489136 Whirlpool Refrigerator Screw
43W11624204 Whirlpool Screw
1004317943 Whirlpool Refrigerator Ice Maker Assembly
