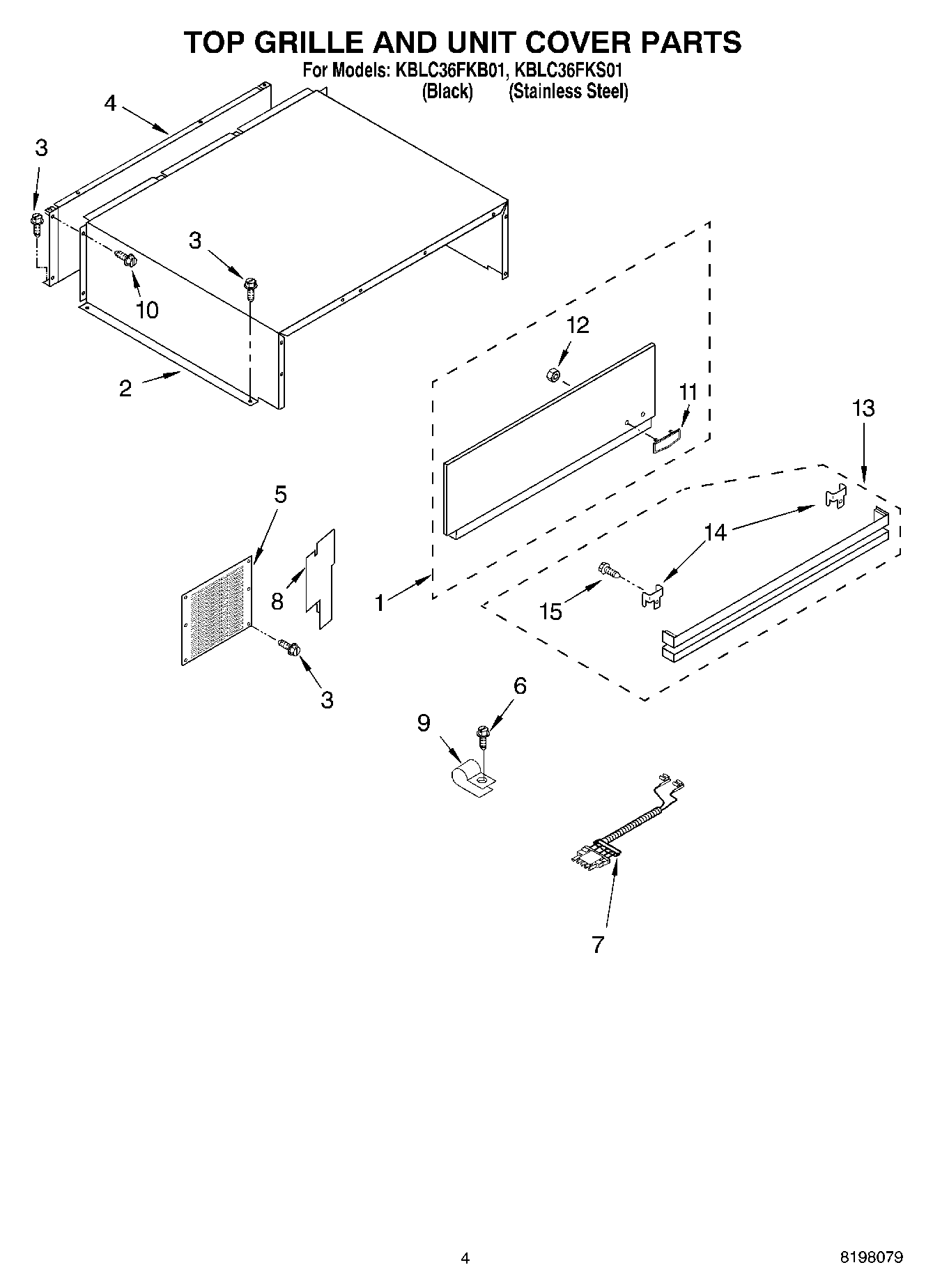

KBLC36FKS01 03 – TOP GRILLE AND UNIT COVER

Products

Position	Product
1	Top Grille Assembly (Black)
1	Top Grille Assembly (Stainless Steel)
2	Cover, Unit
3	WP489069 Whirlpool Compactor Screw
4	2256466 Whirlpool Refrigerator Unit Cover
5	Guard, Wiring
6	WP965173 Whirlpool Dishwasher Screw
7	Wire Assembly
8	Baffle-Air, Condenser
9	489348 Whirlpool Refrigerator Tube Clamp
10	SCREW
11	Nameplate (Black)
12	WP2004333 Whirlpool Refrigerator Nut
13	Louver, Vent (Black)
13	Louver, Vent (Stainless Steel)
14	Louver, Bracket
15	303776 Whirlpool Dishwasher Screw
