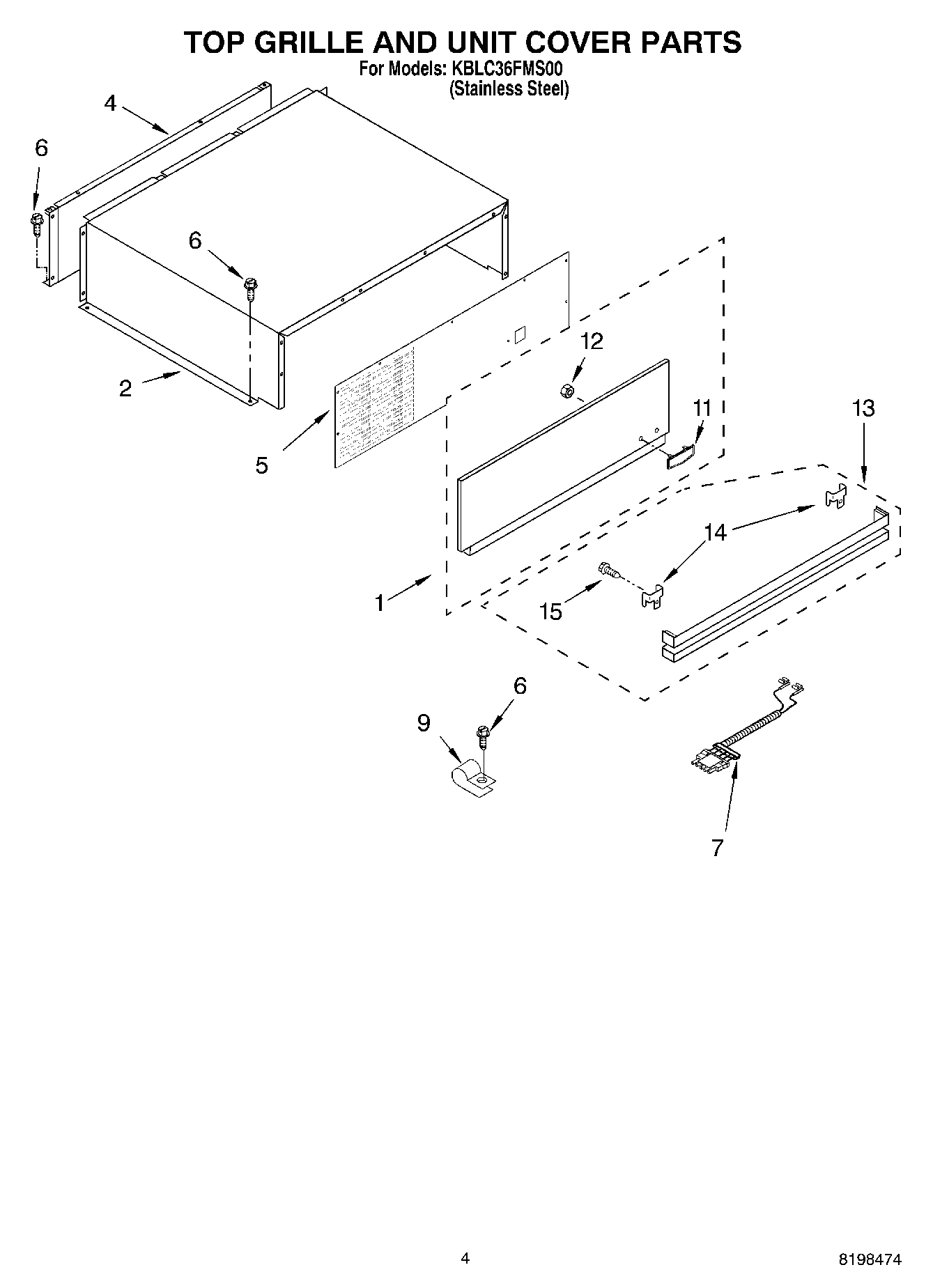

KBLC36FMS00 03 – TOP GRILLE AND UNIT COVER PARTS

Written by

Products

Position	Product
1	Top Grille Assembly (Stainless Steel)
2	Cover, Unit
4	2256466 Whirlpool Refrigerator Unit Cover
5	Front, Unit Cover
6	WP965173 Whirlpool Dishwasher Screw
7	Wire Assembly
9	489348 Whirlpool Refrigerator Tube Clamp
11	Nameplate (Black)
12	WP2004333 Whirlpool Refrigerator Nut
13	Louver, Vent (Stainless Steel)
14	Bracket, Louver
15	303776 Whirlpool Dishwasher Screw
